2025 Belshe BF12CXT-2EP trailer

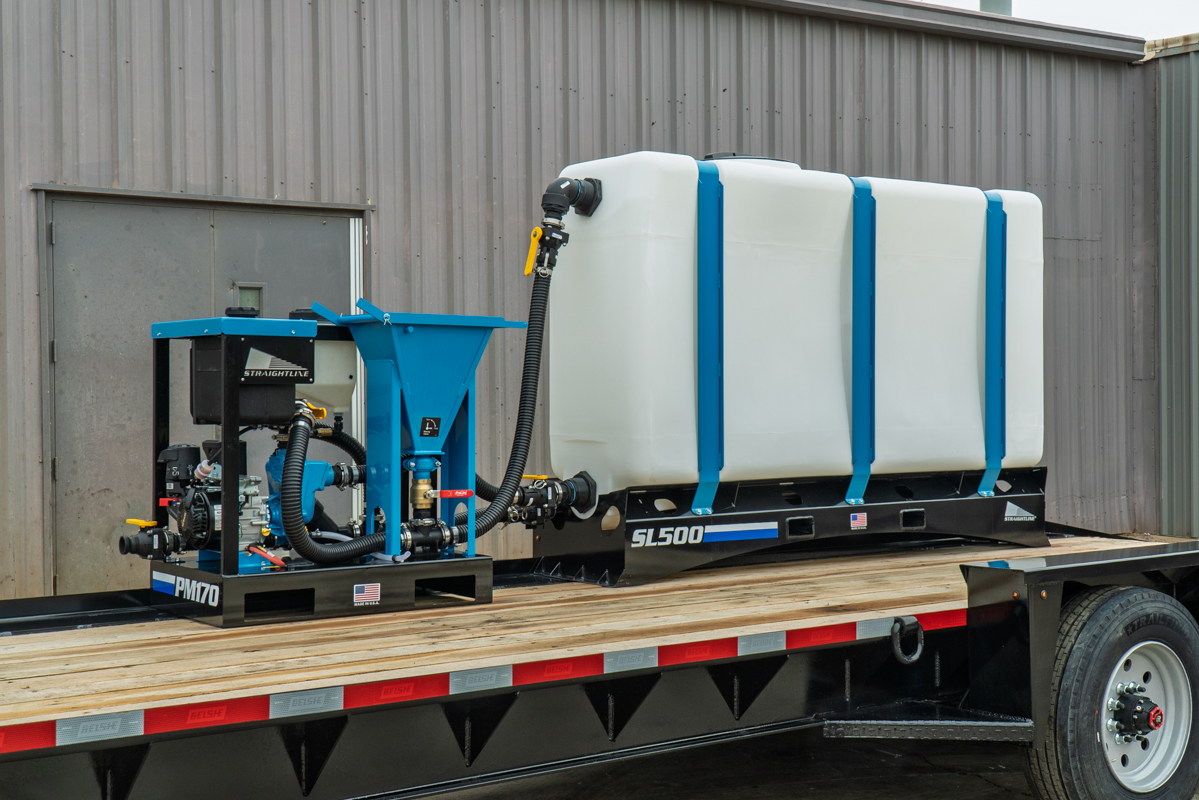

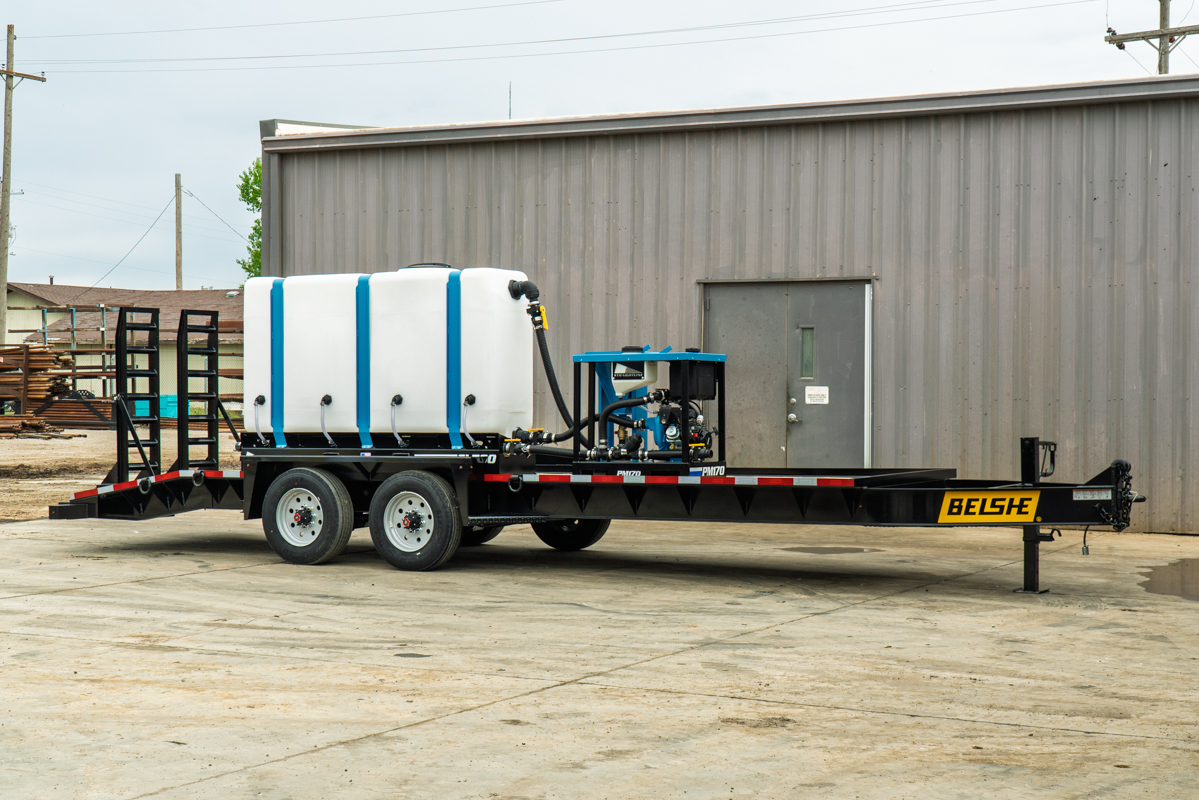

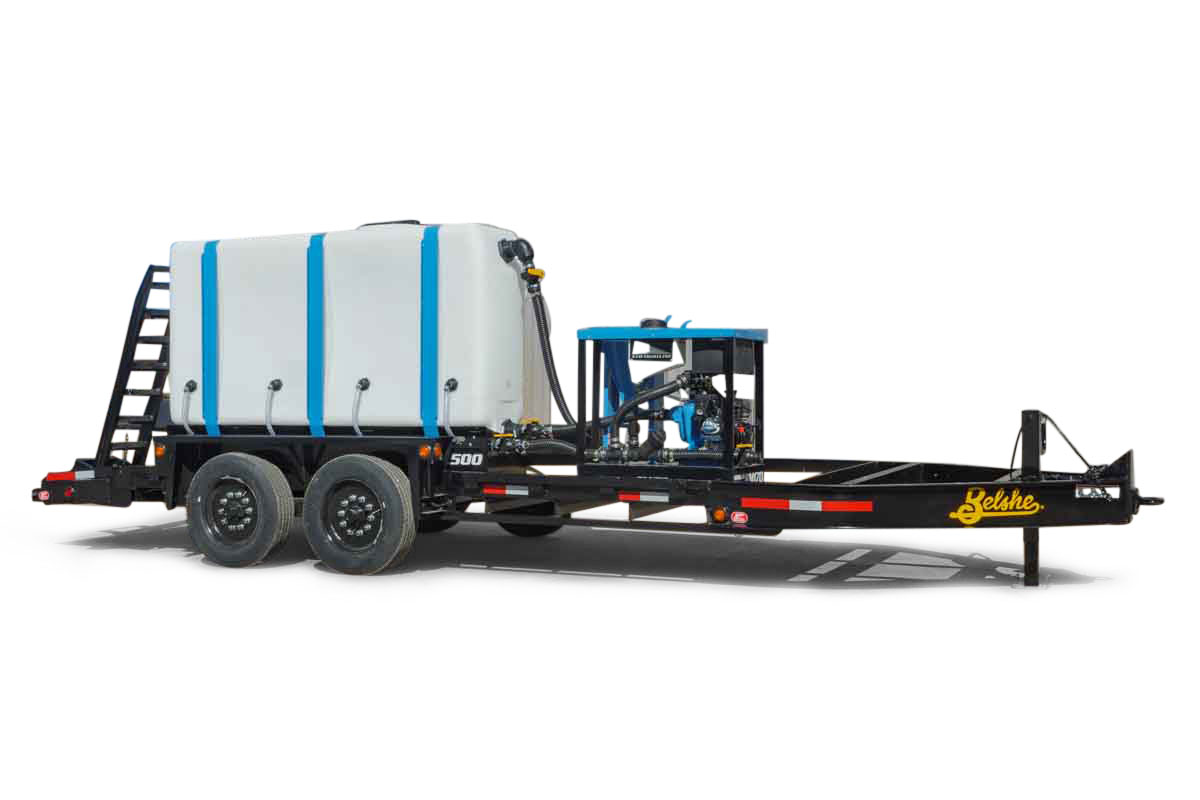

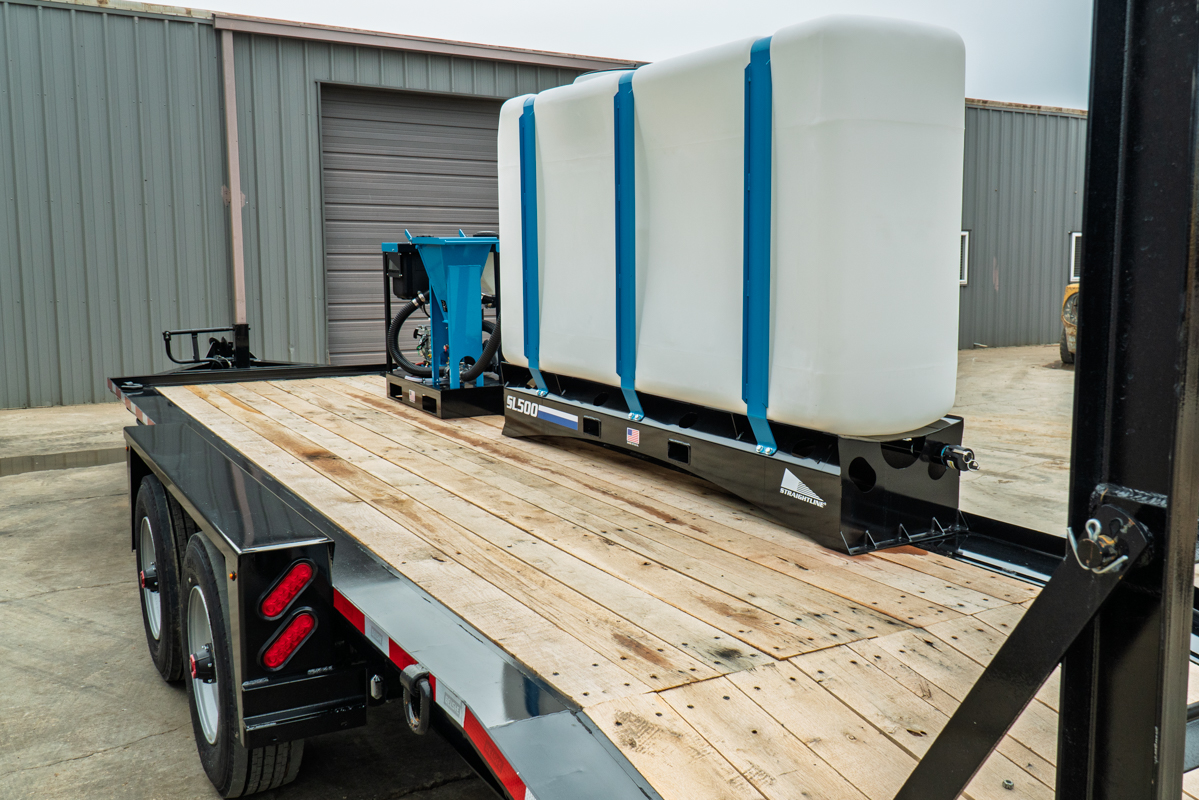

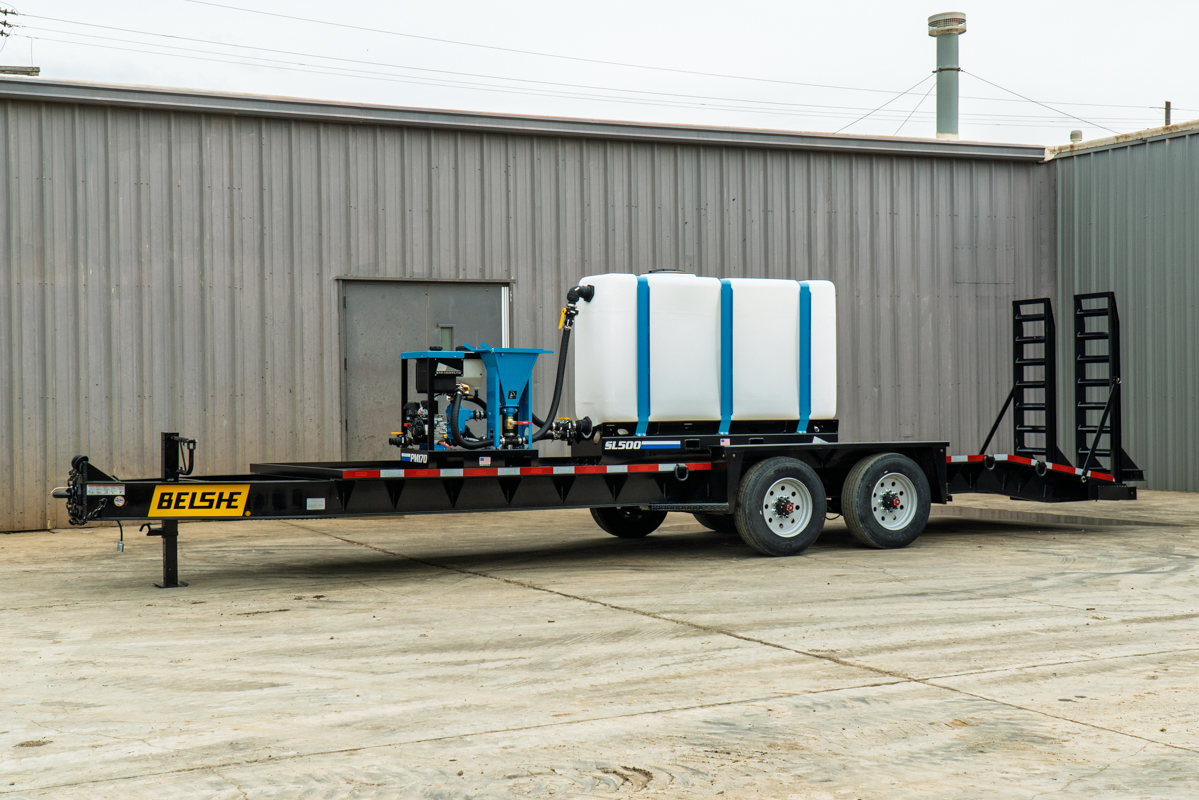

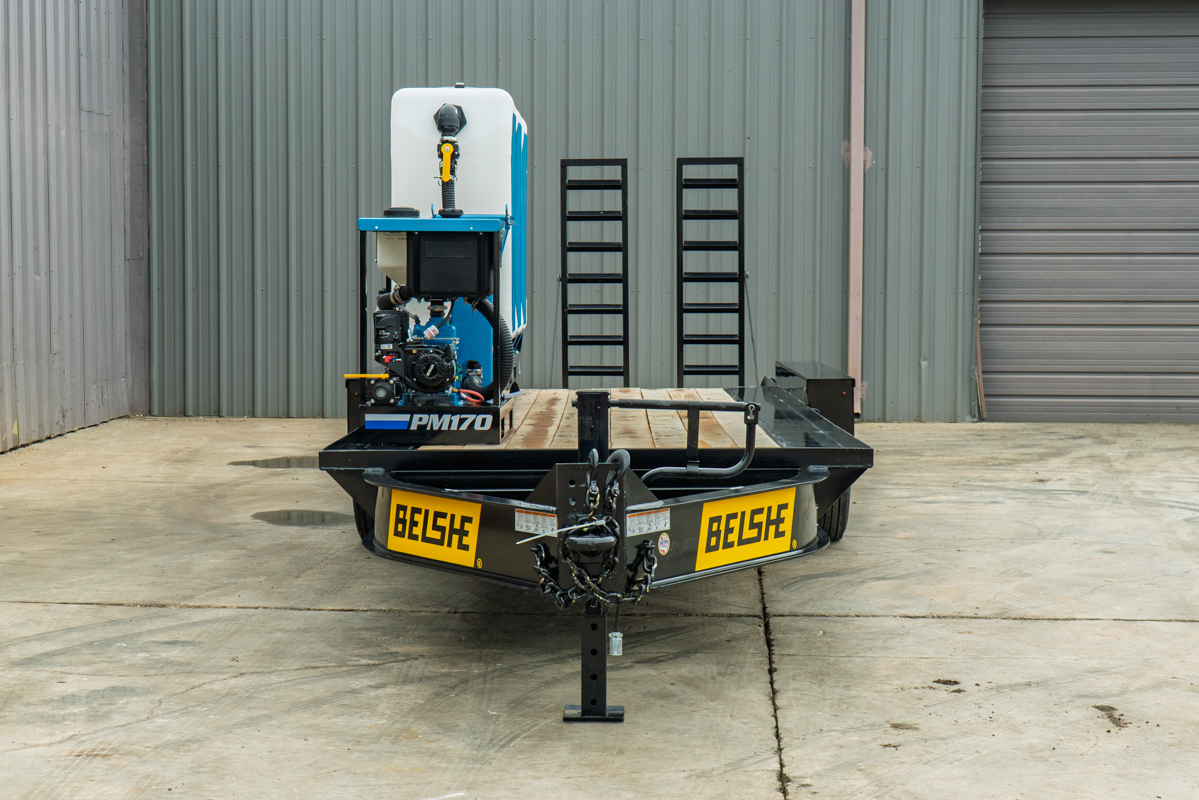

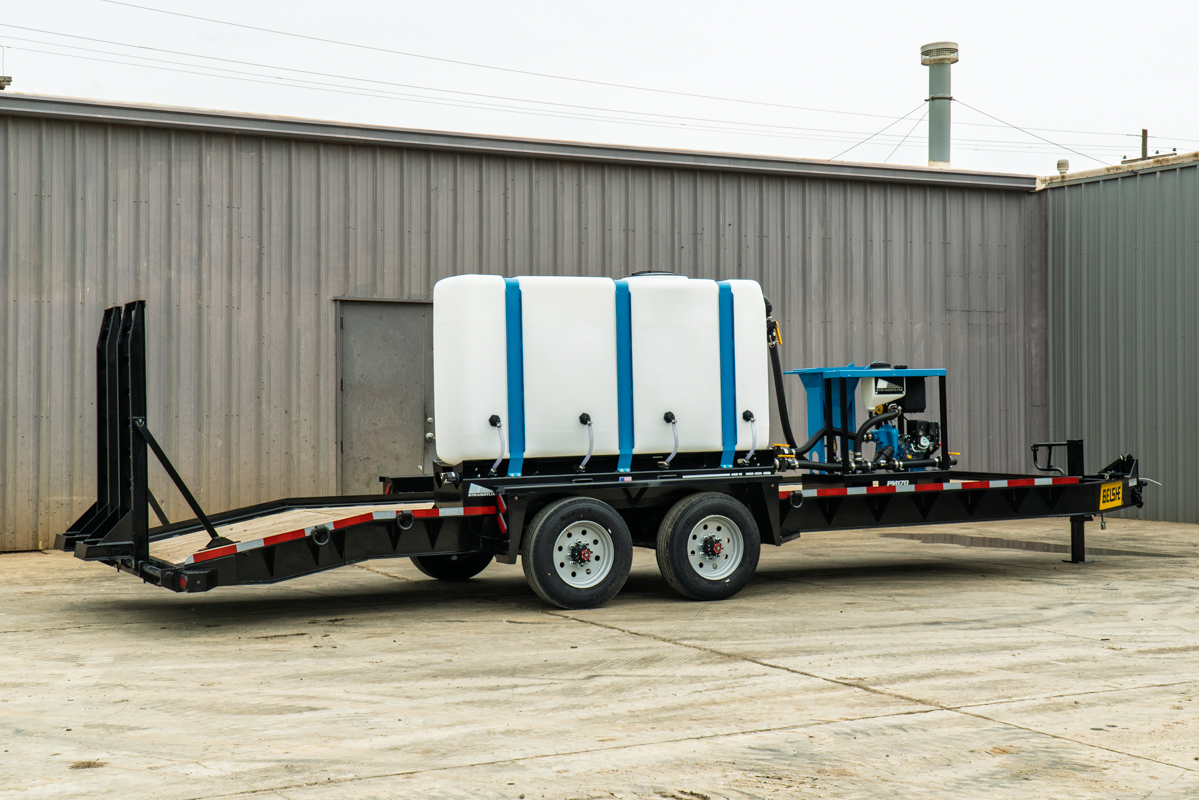

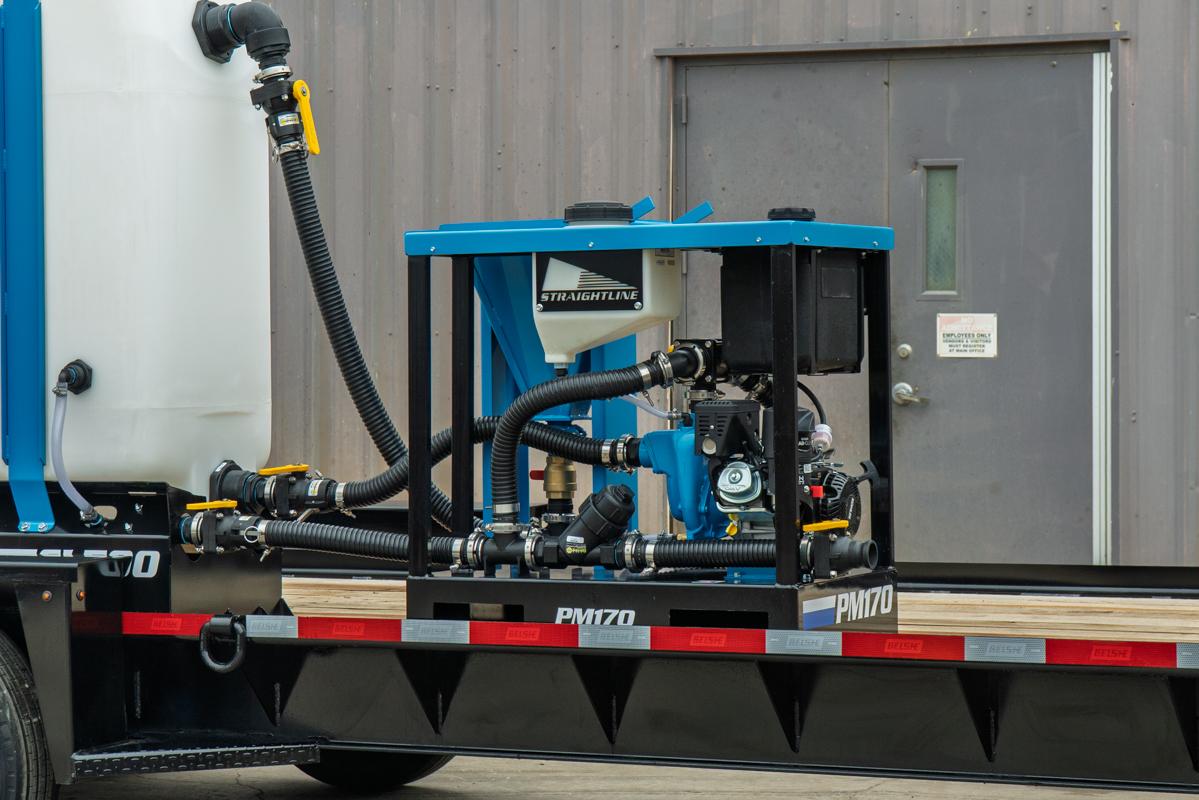

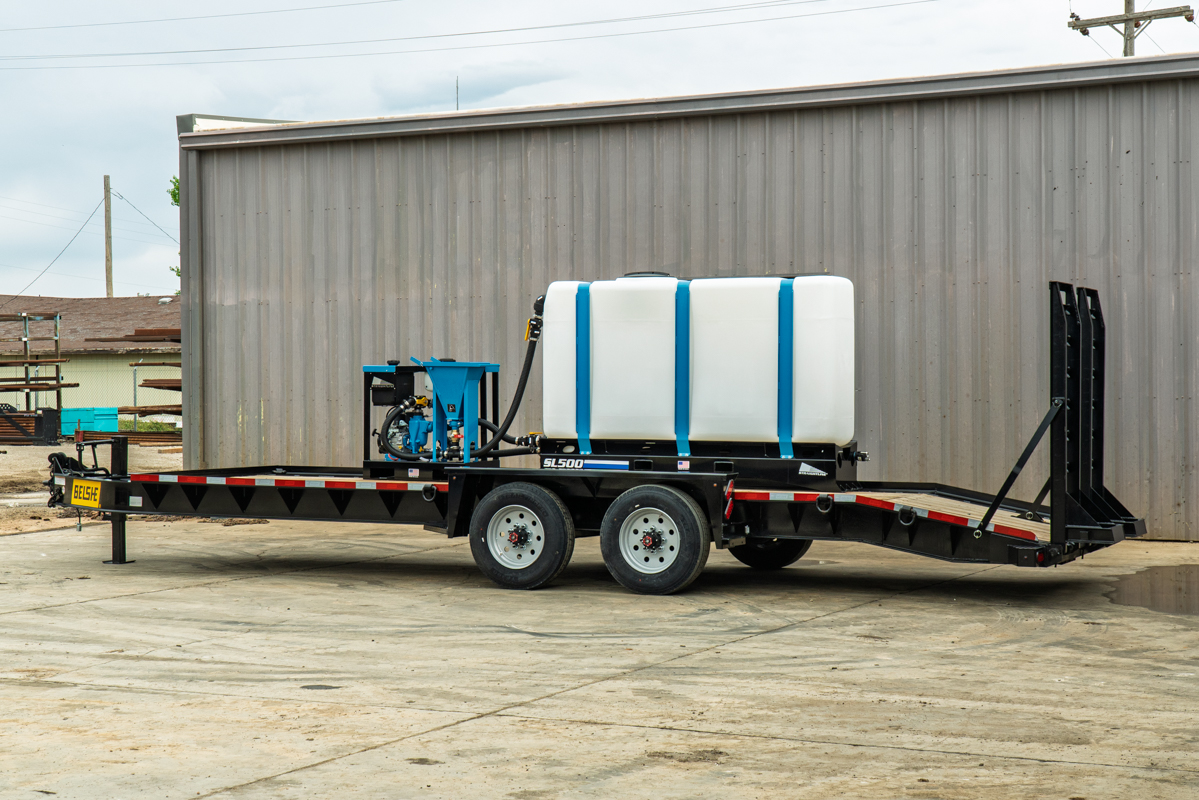

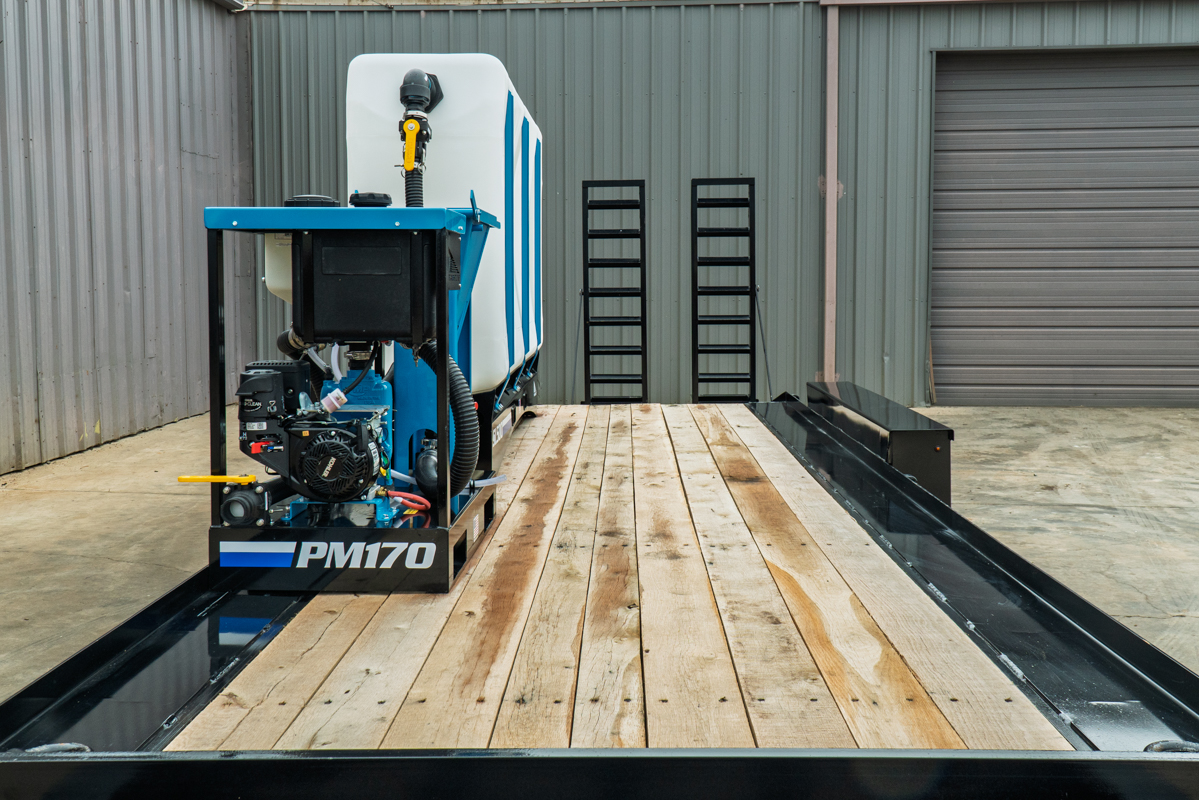

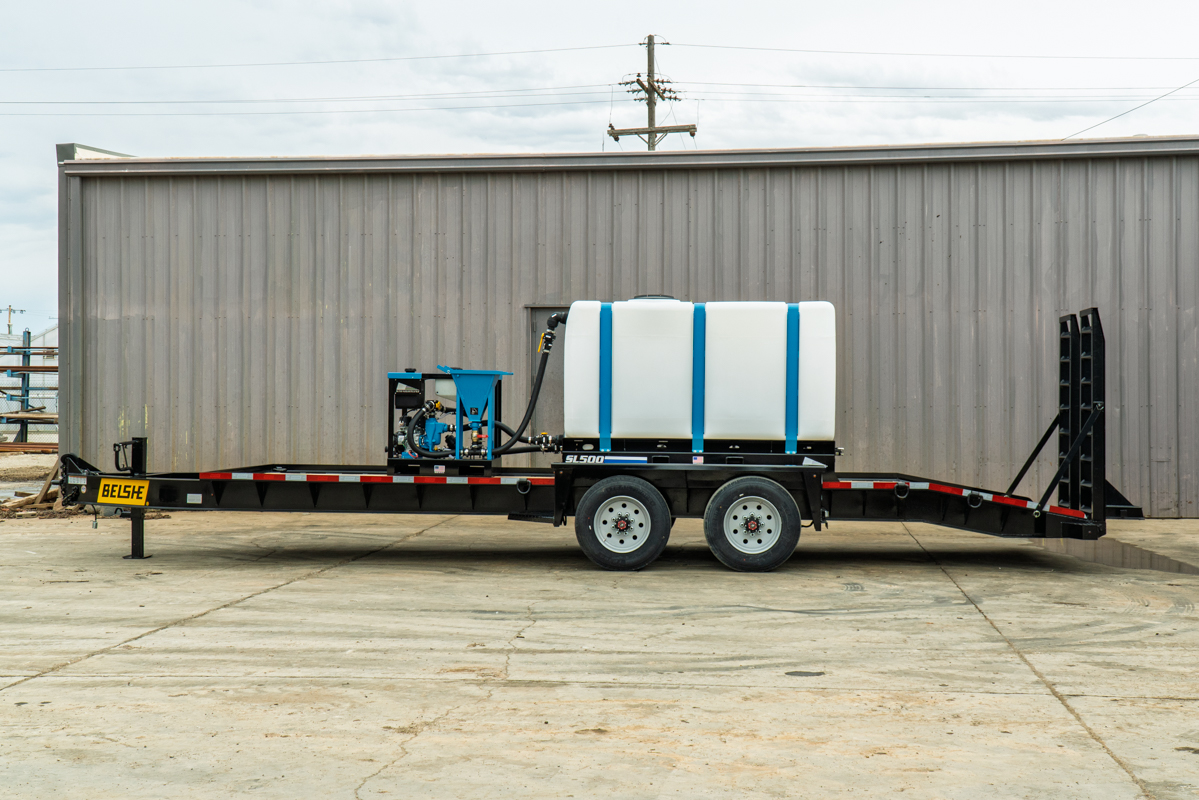

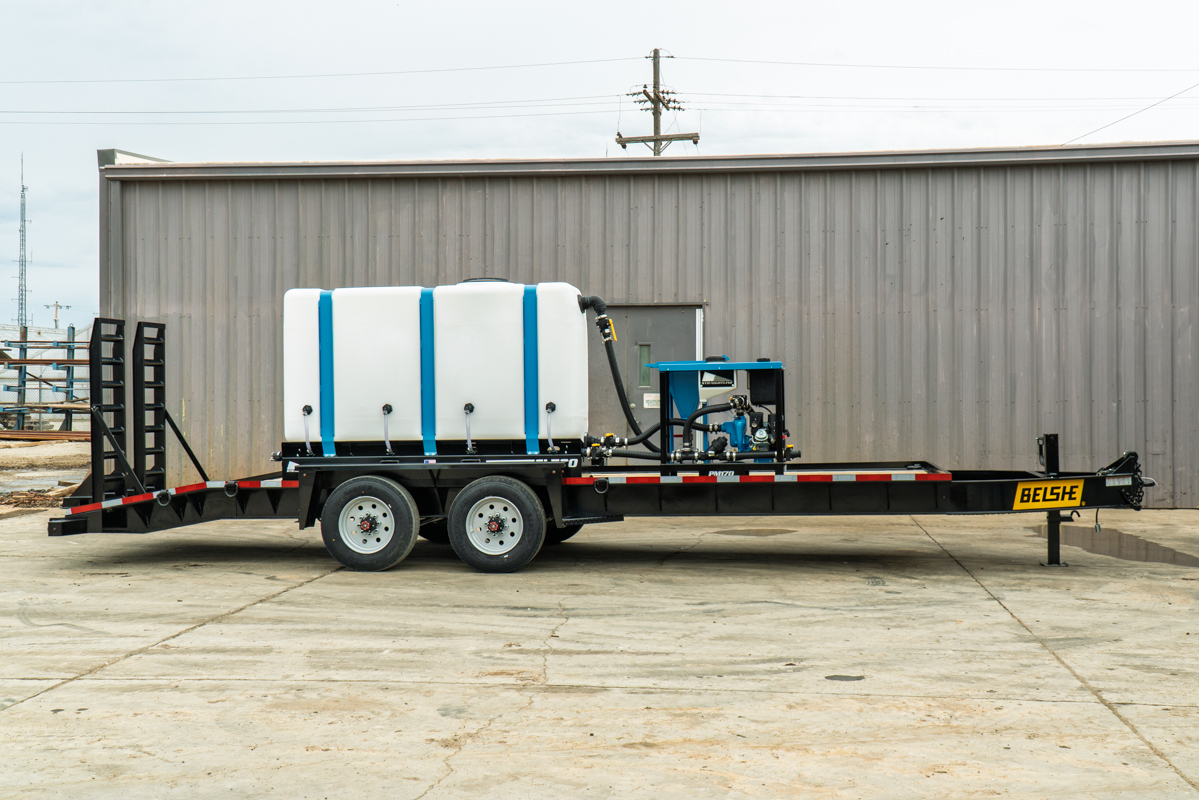

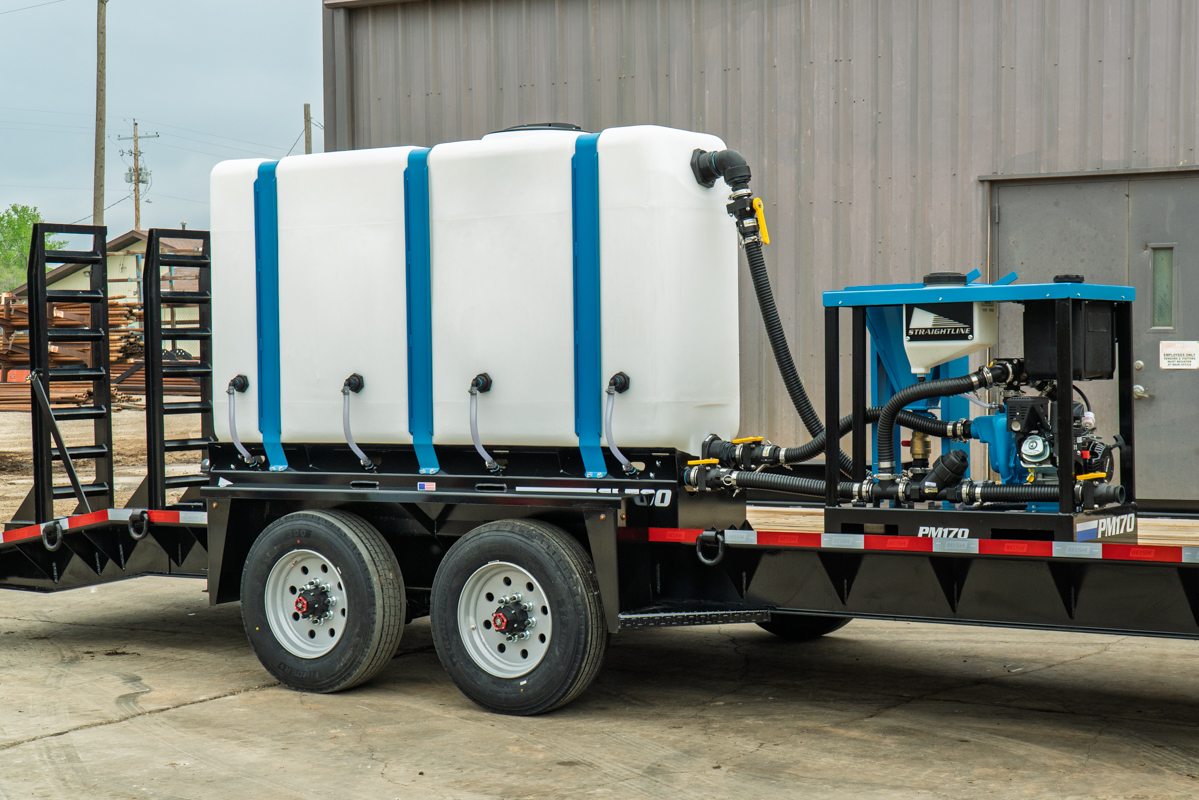

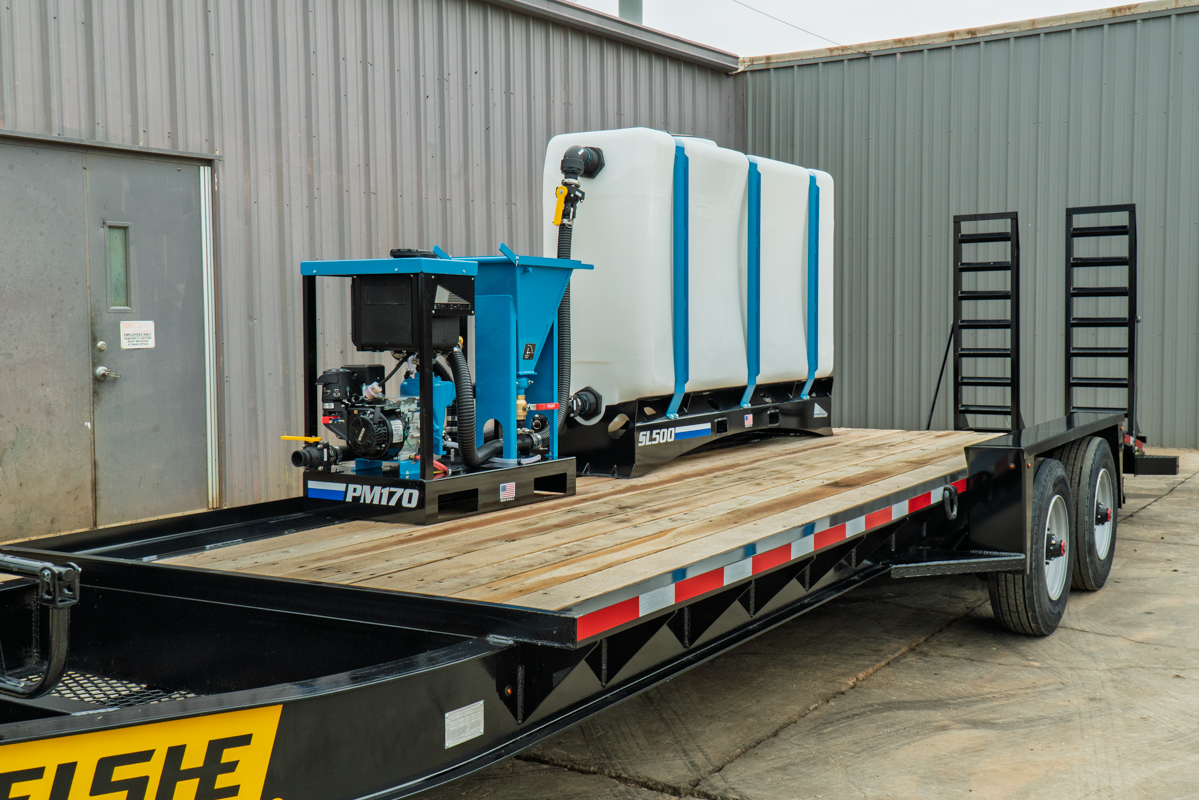

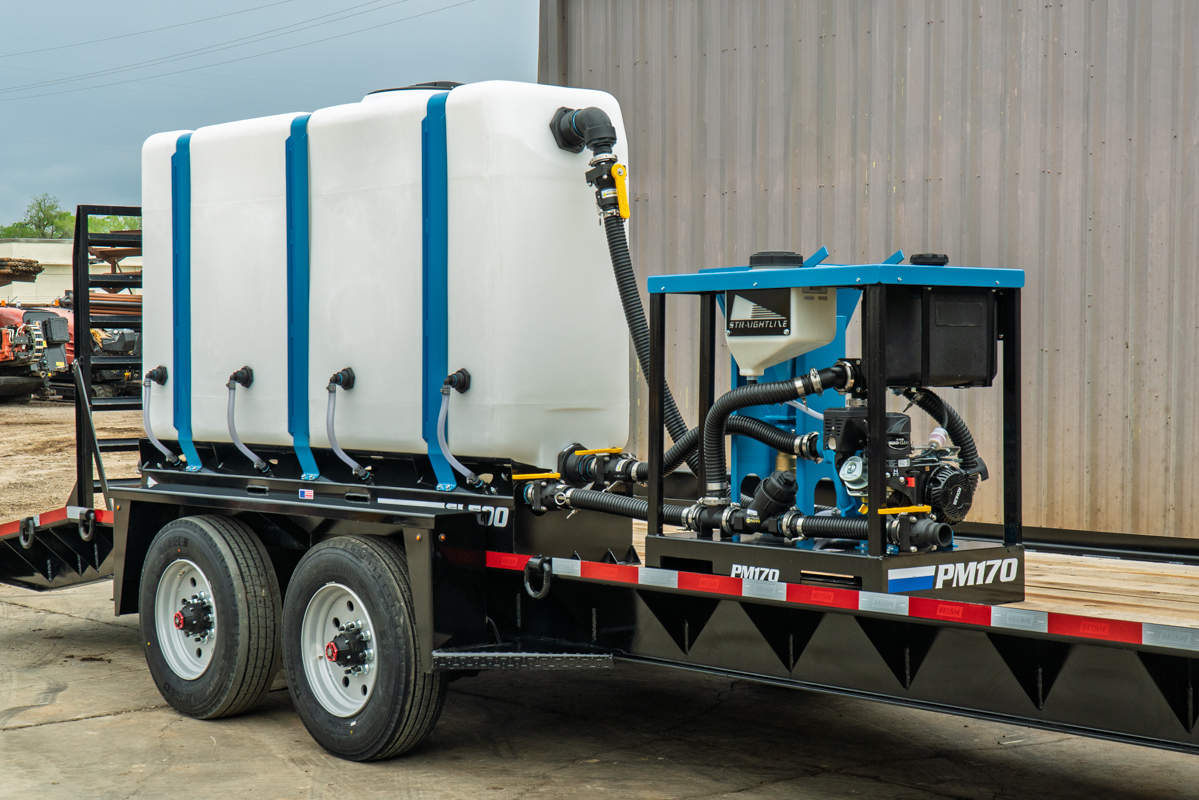

NEW 2025 Belshe BF12CXT-2EP trailer. This 12-ton trailer comes with electric brakes and fold-up ramps. This trailer package comes with a 2025 StraightLine HDD PM170 bentonite mixing system w/ StraightLine HDD SL500 500-gallon tank.
Call for more details on this Belshe Belshe BF12CXT-2EP trailer
today!
BELSHE BF11-2EP SPECIFICATIONS:
CAPACITIES
|
|
|
| GVWR (MAX): |
|
25,900 lbs. |
| TRAILER WEIGHT (MIN): |
|
5,900 lbs. |
DIMENSIONS
|
|
|
| DOVE WIDTH: |
|
Full width
|
| BETWEEN FENDER WIDTH: |
|
81.5” |
| OVERALL WIDTH: |
|
102” |
| BED HEIGHT: |
|
27” unloaded |
| FENDER Height: |
|
7” from deck |
| TONGUE LENGTH: |
|
60” to hitch plate |
| BED LENGTH: |
** |
20’ |
| DOVE LENGTH: |
** |
50” RAISED |
| RAMP LENGTH: |
|
6’ |
| OVERALL LENGTH: |
|
29’ from hitch plate to extreme rear |

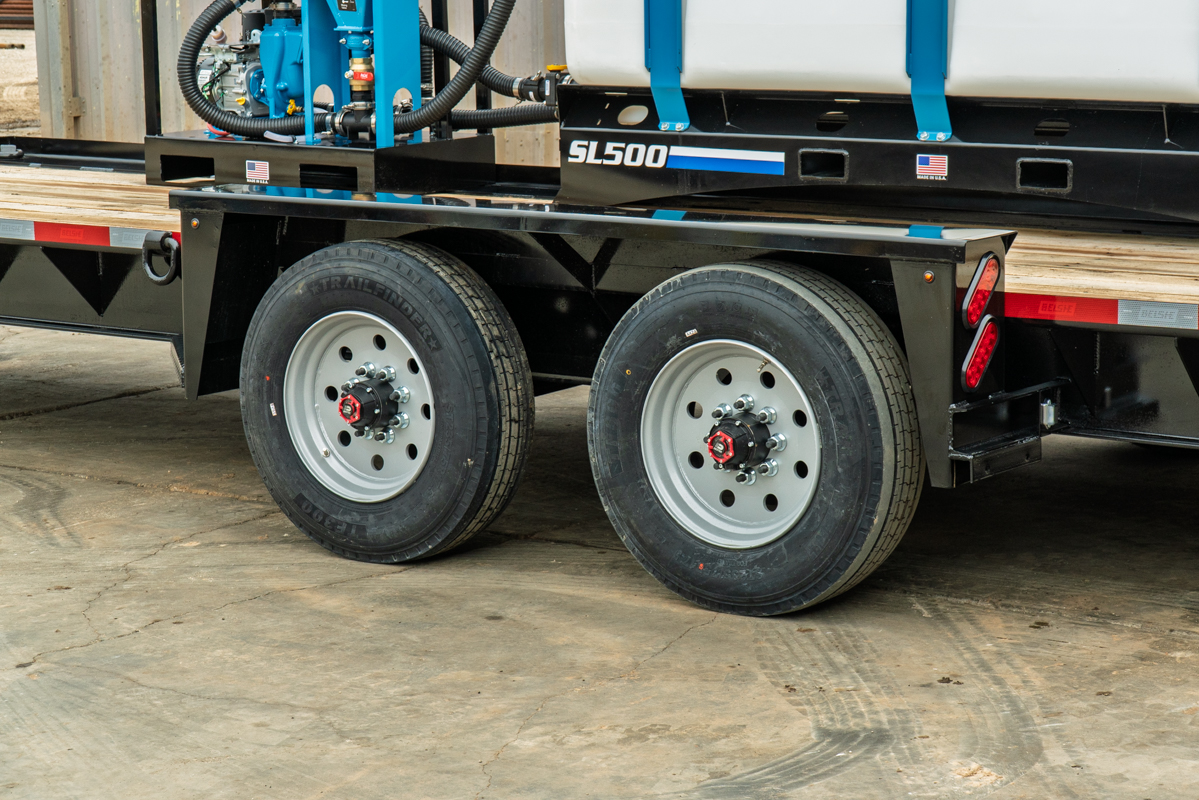

RUNNING GEAR
|
|
|
| AXLE CAPACITY: |
|
12,000 lbs. x 2 each Torsion |
| BRAKES: |
|
12.25” x 5” electric |
| SUSPENSION: |
|
Torsion axles |

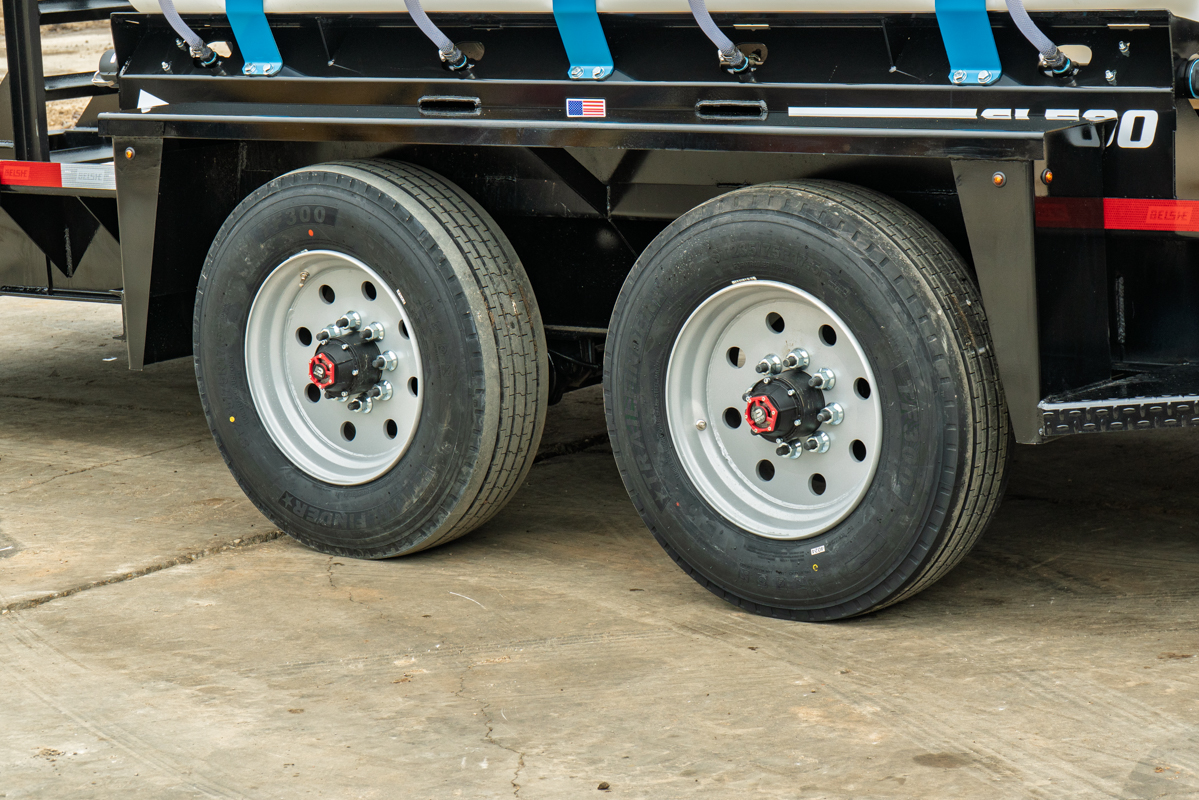

| WHEELS: |
|
17.5” x 6.75” 8 bolt |
| TIRES: |
|
235/75R/17.5 Radial 16-ply load range H |
FRAME MATERIAL
|
|
|
| CROSS MEMBERS: |
|
4” x 5.4 lb. channel A-36 |
| MAIN FRAME: |
|
10" I-beam |
| |
|
|
| FENDERS: |
|
10 gauge formed |
FEATURES
|
|
|

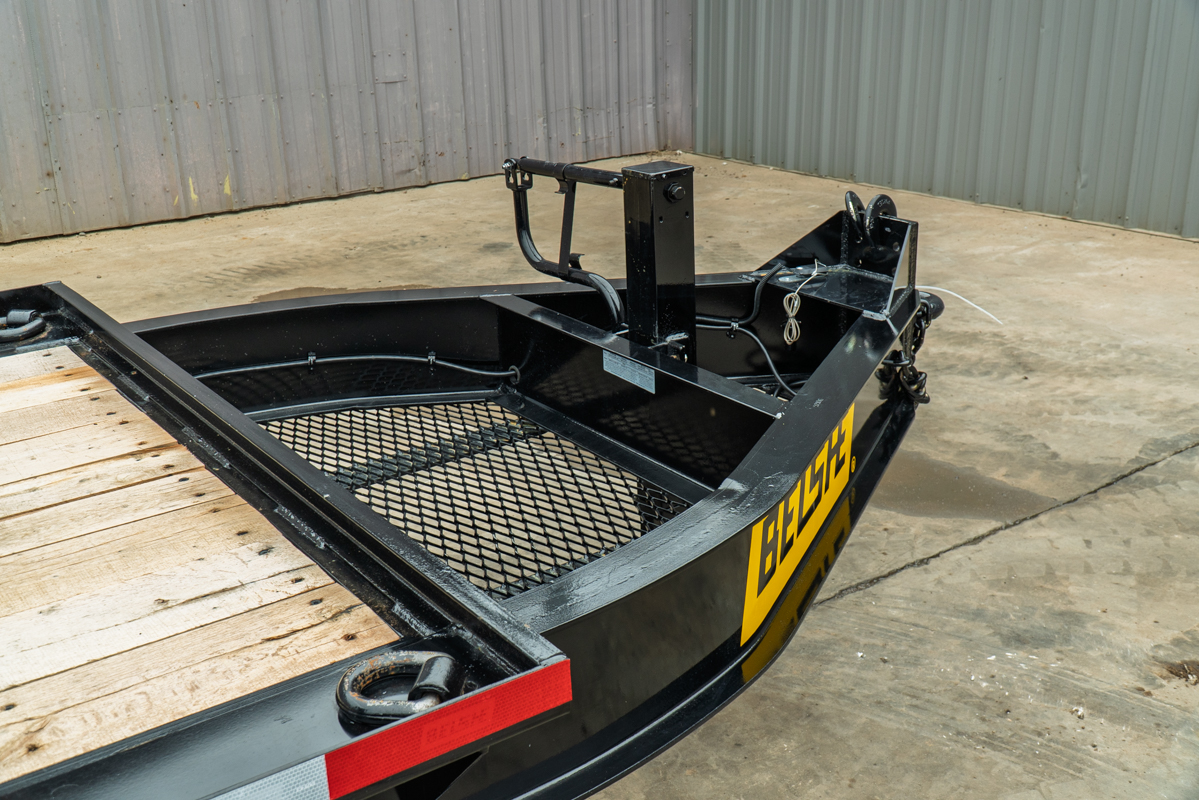

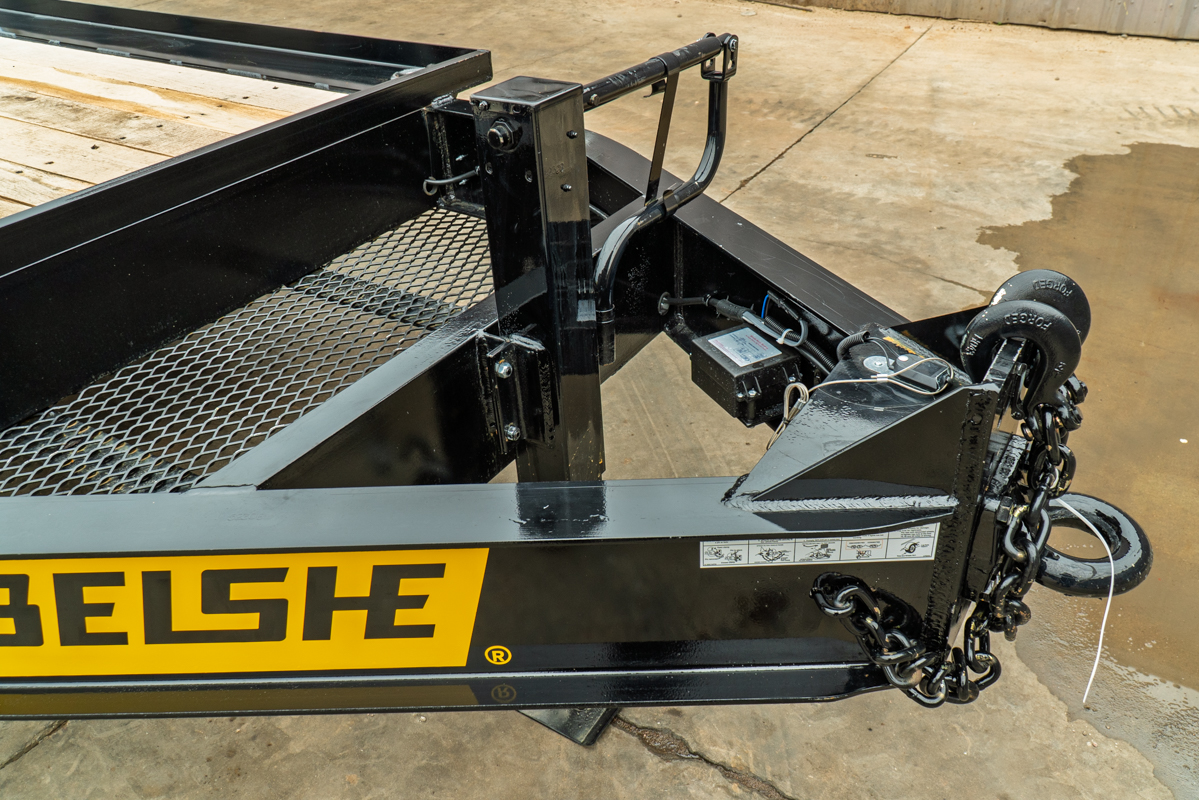

| COUPLING: |
|
3” lunette eye adjustable in height from 24” to 31” |
| SAFETY CHAINS: |
|
.375” grade 70 w/grab hooks |

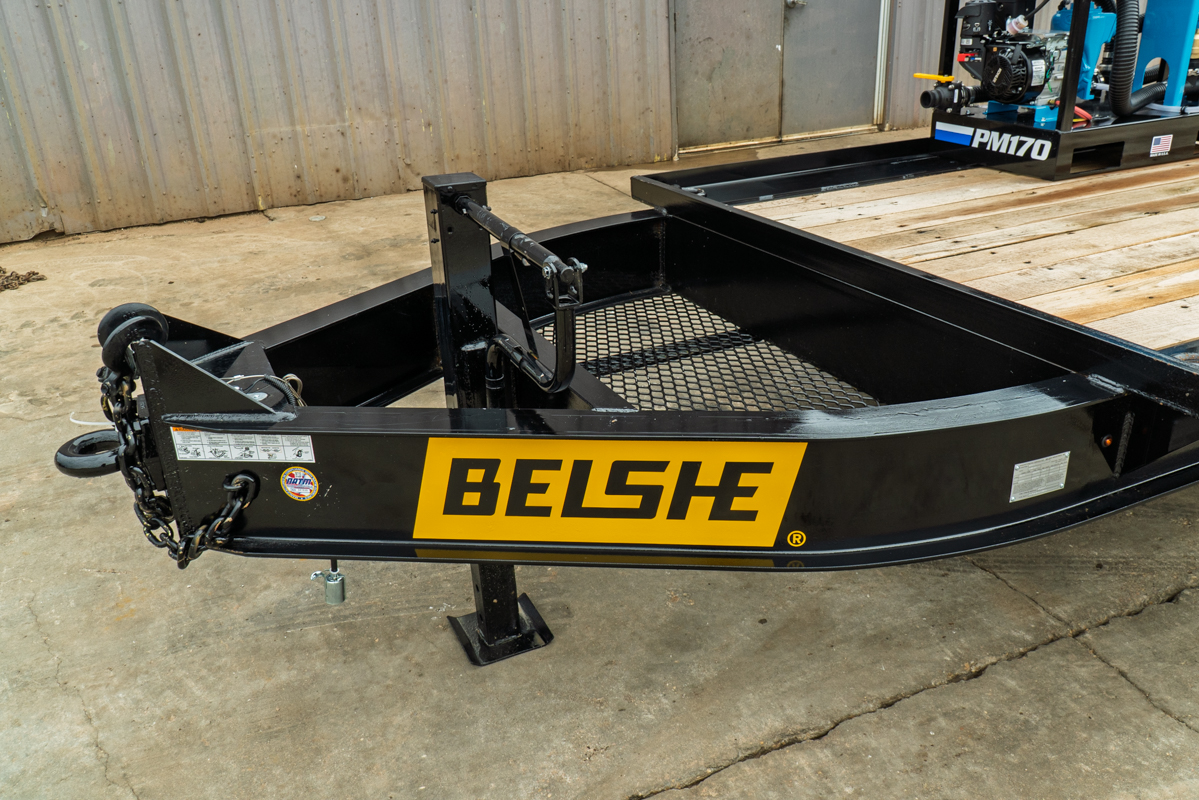

| JACK: |
|
12,000 lbs. Drop leg |

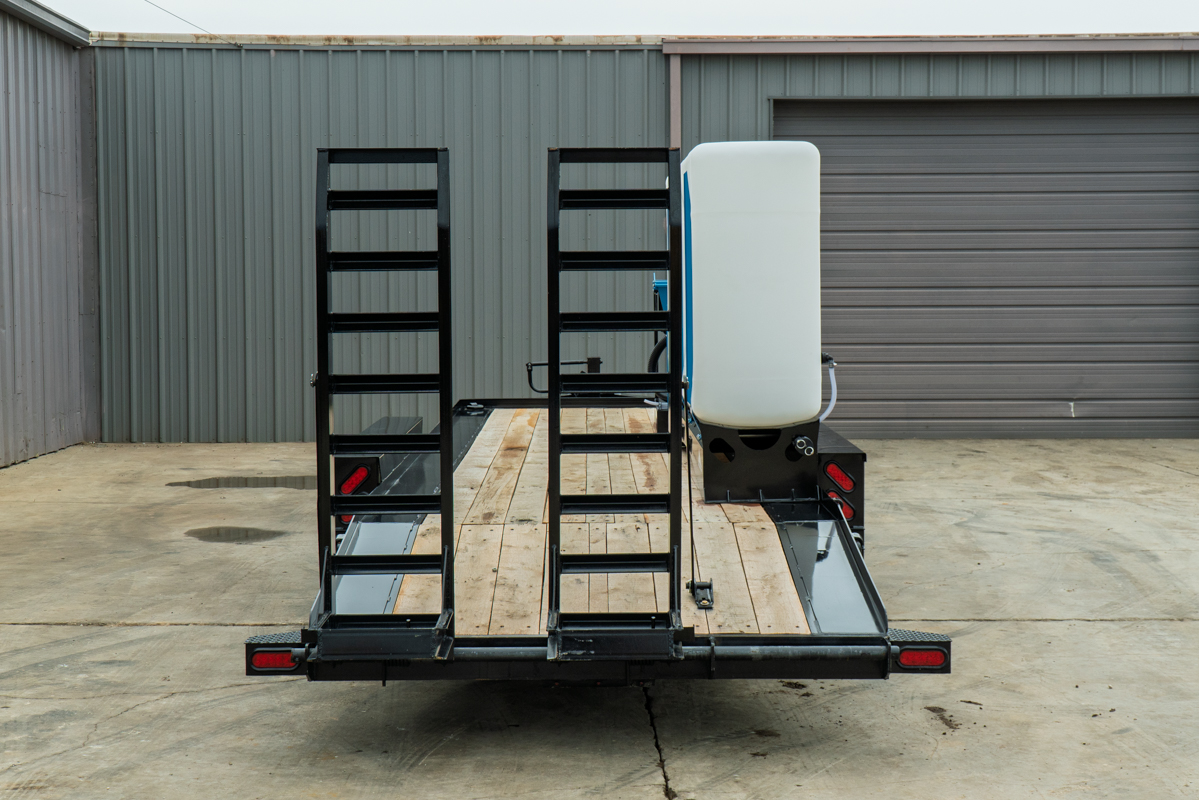

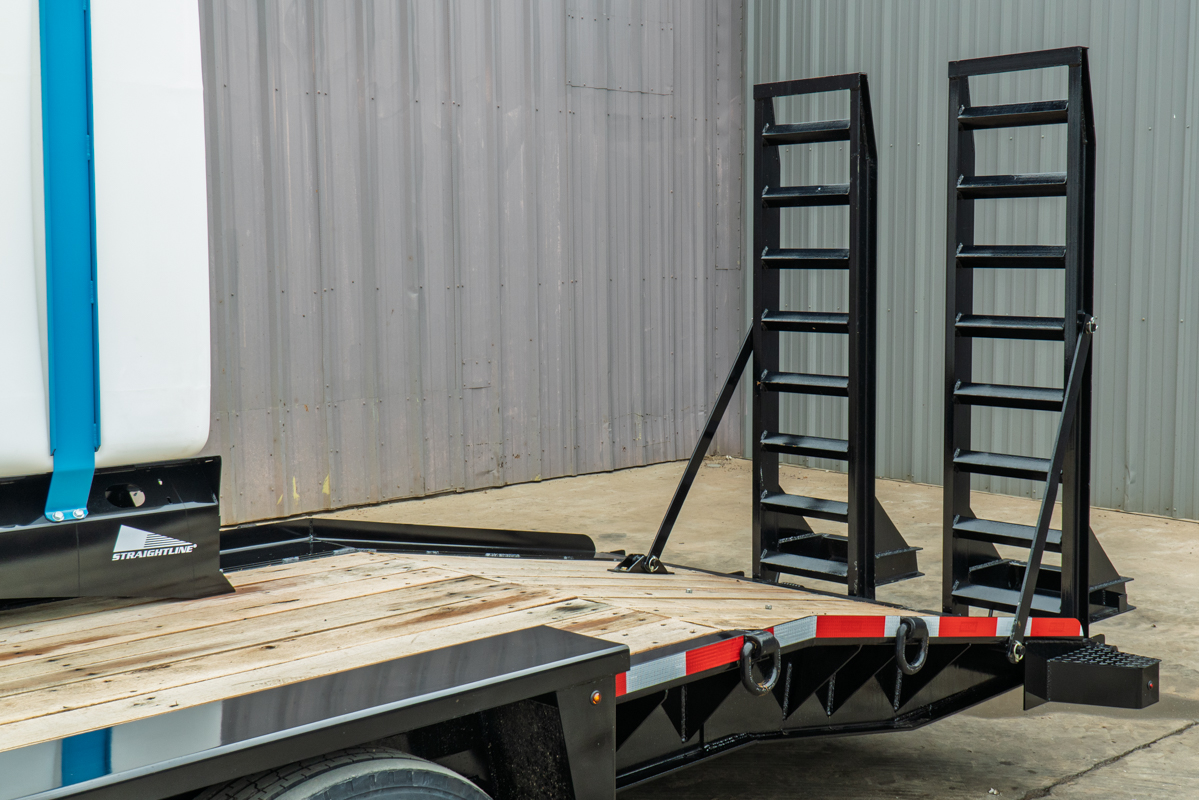

| RAMP: |
|
6' LADDER BAR W/ SPRINGS |
| TIE DOWNS: |
|
CUSTOM FOR SOURCE HDD |
| LIGHTING: |
|
12-volt sealed beam, rubber mounted lights; meets D.O.T. specs |
| BREAKAWAY SYSTEM: |
|
12-volt w/battery, battery box, tow charger & switch, meets D.O.T. specs |
| PAINT: |
** |
BLACK acrylic enamel
|
| WARRANTY: |
|
1 year against defects in workmanship & materials |
| |
|
|
| |
|
|
