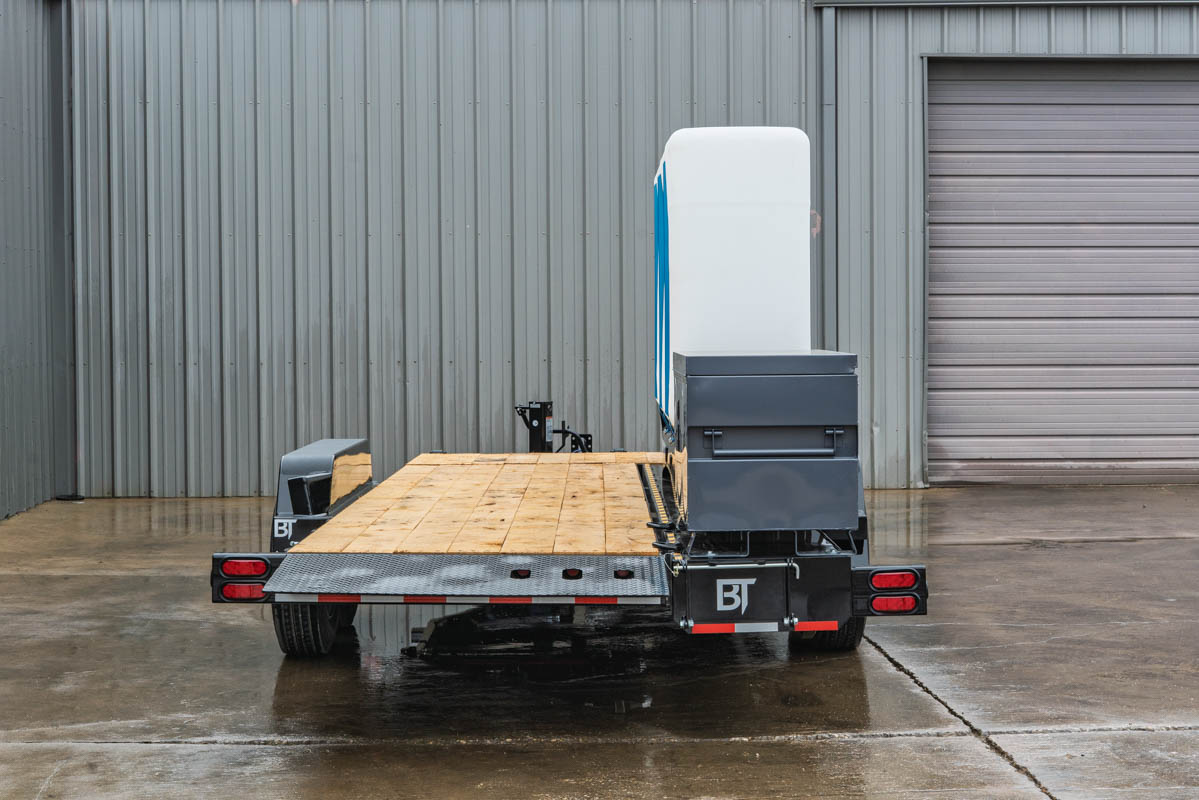

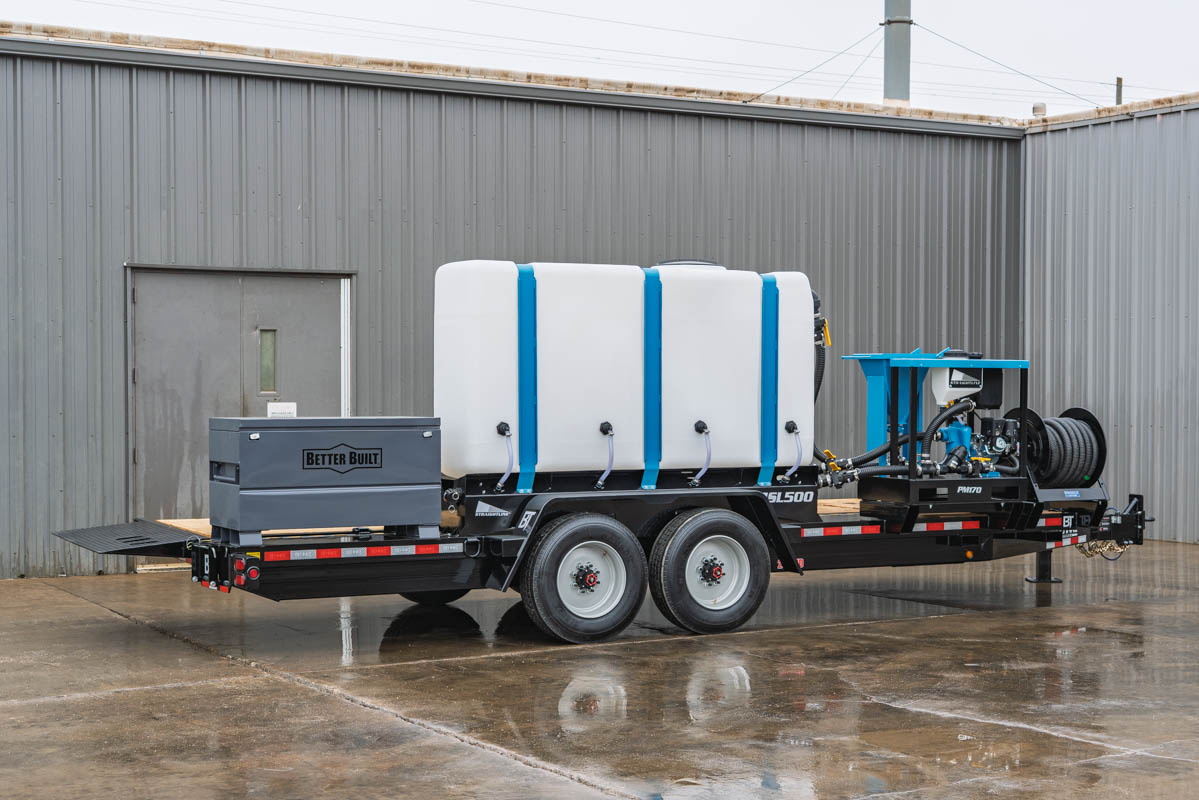

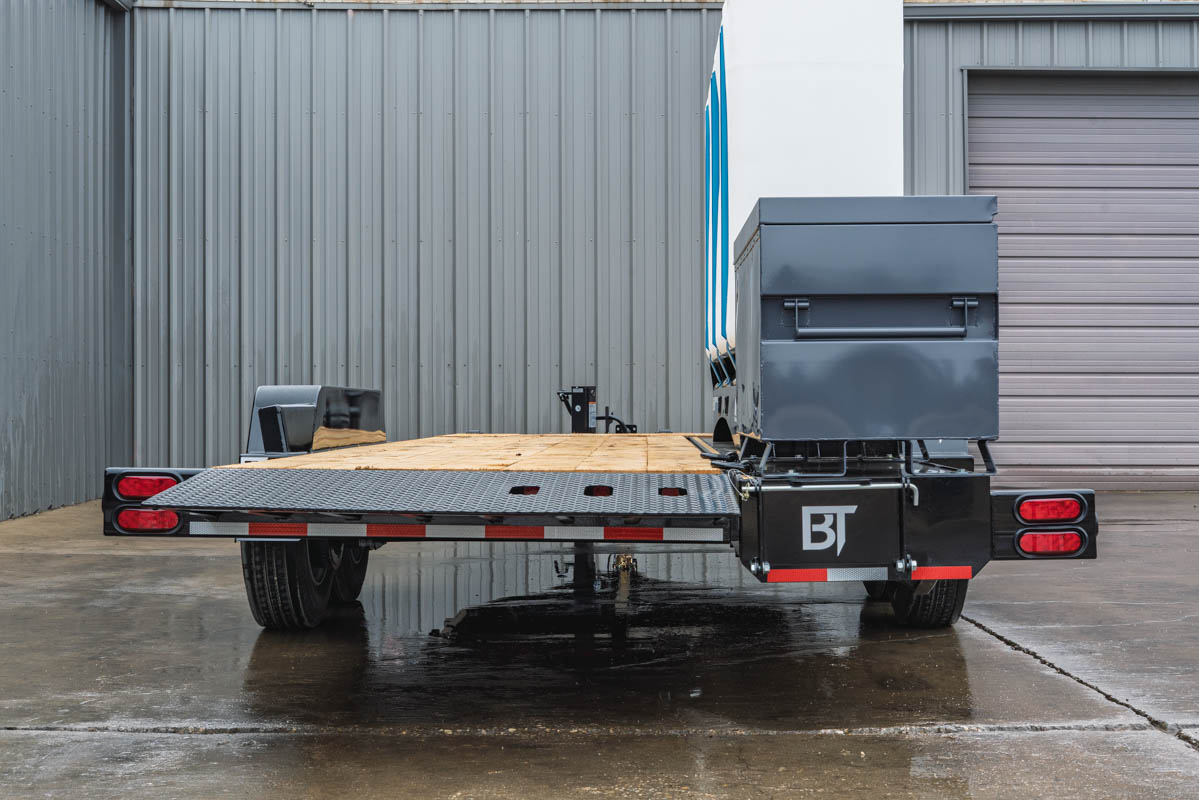

2026 Behnke TBCT2220ET-BT-R Directional Drill Split Tilt Trailer

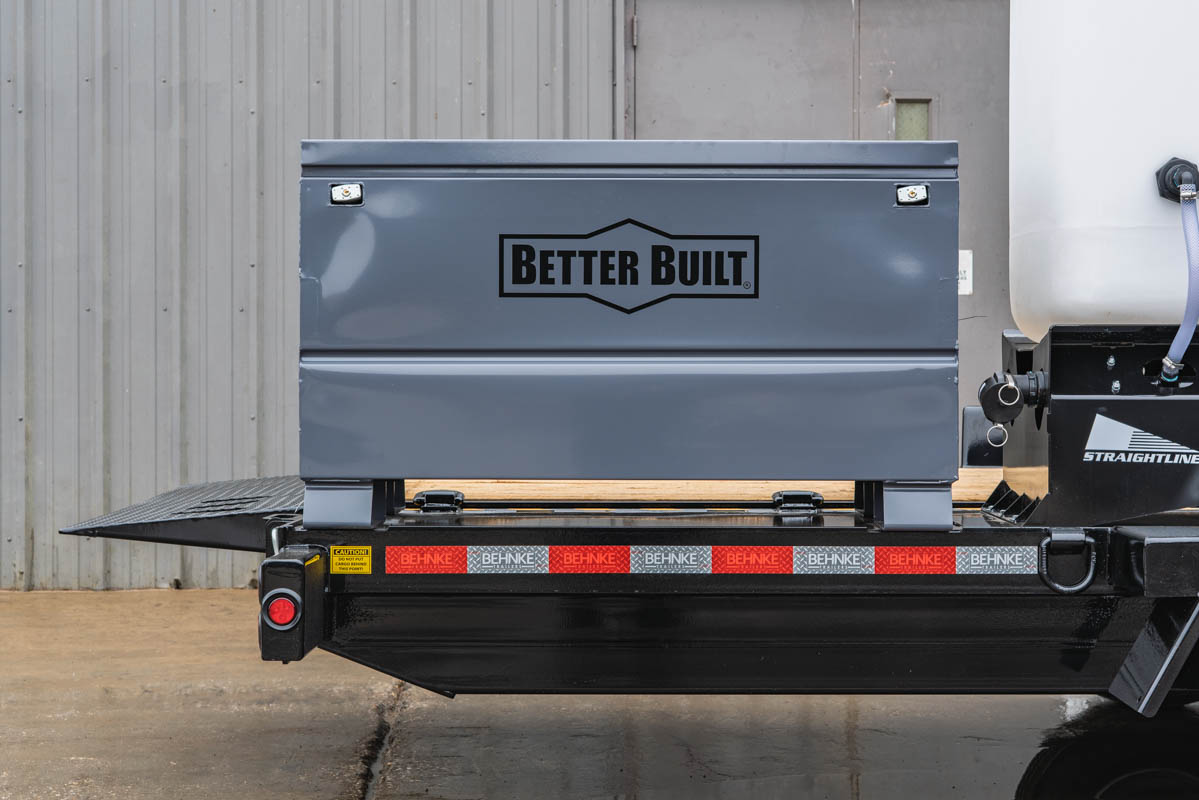

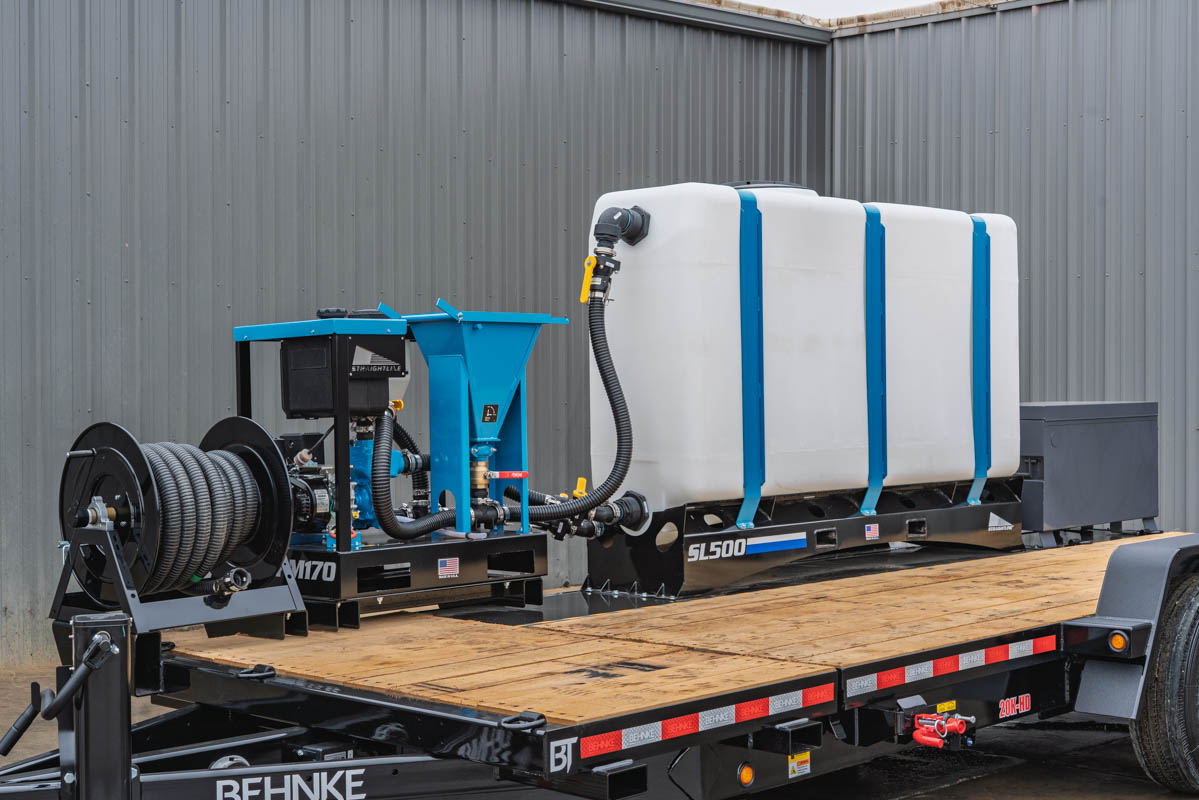

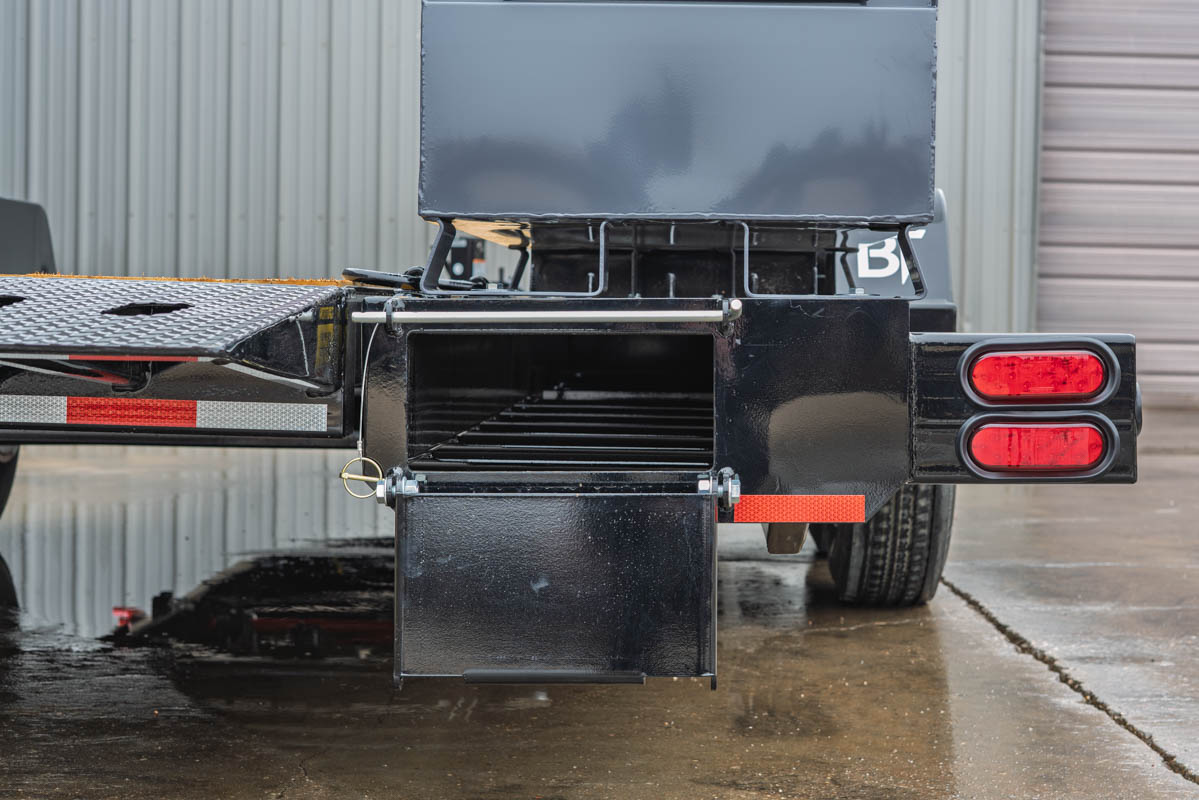

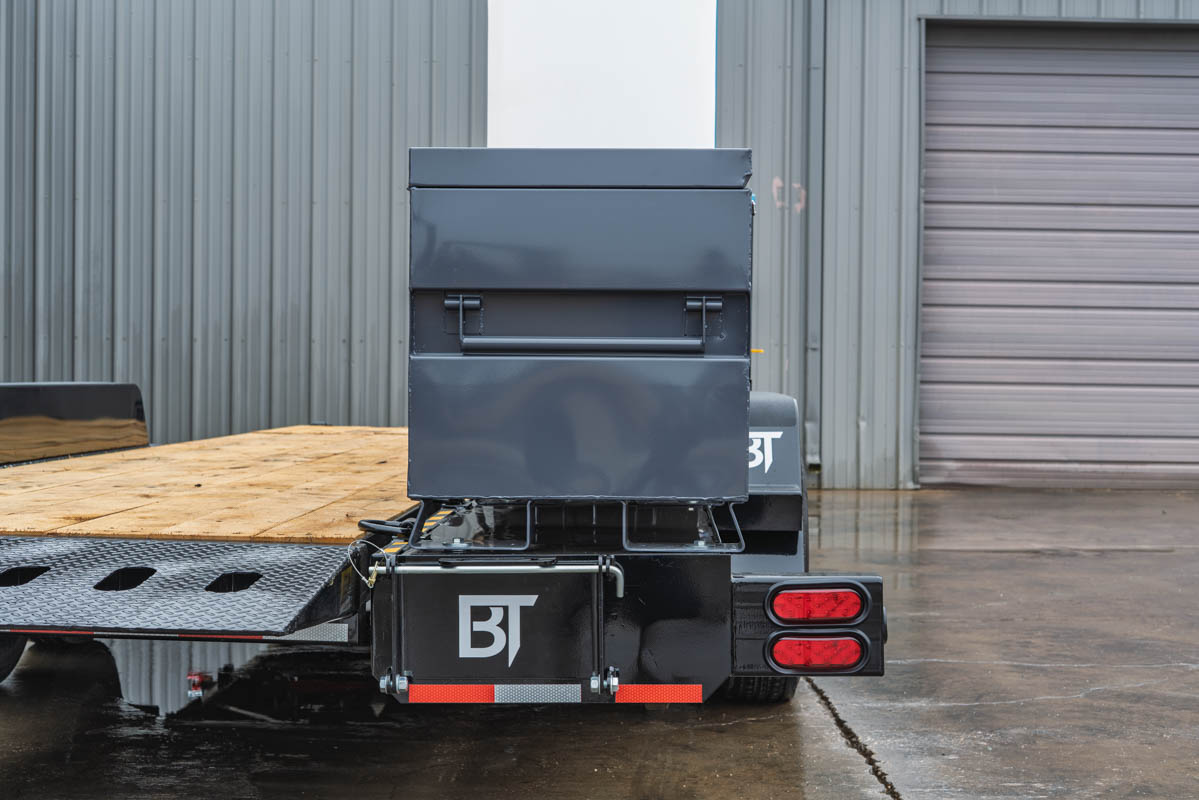

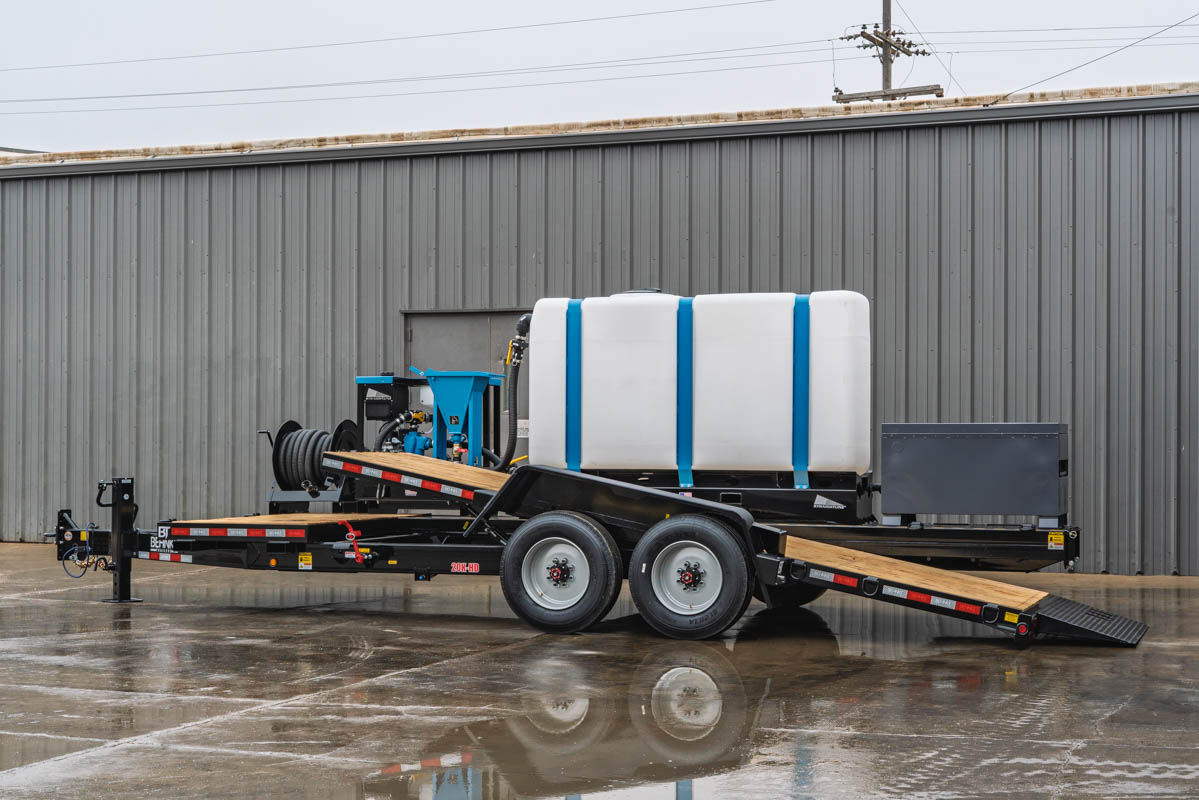

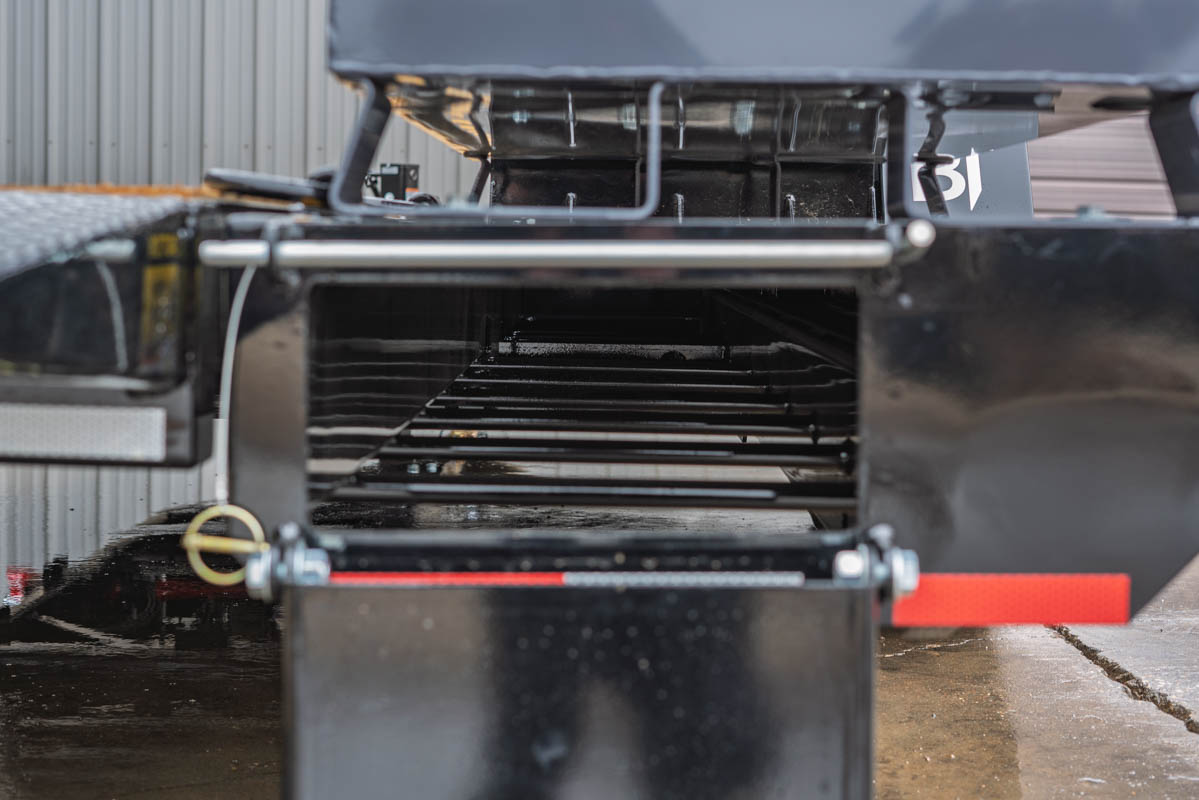

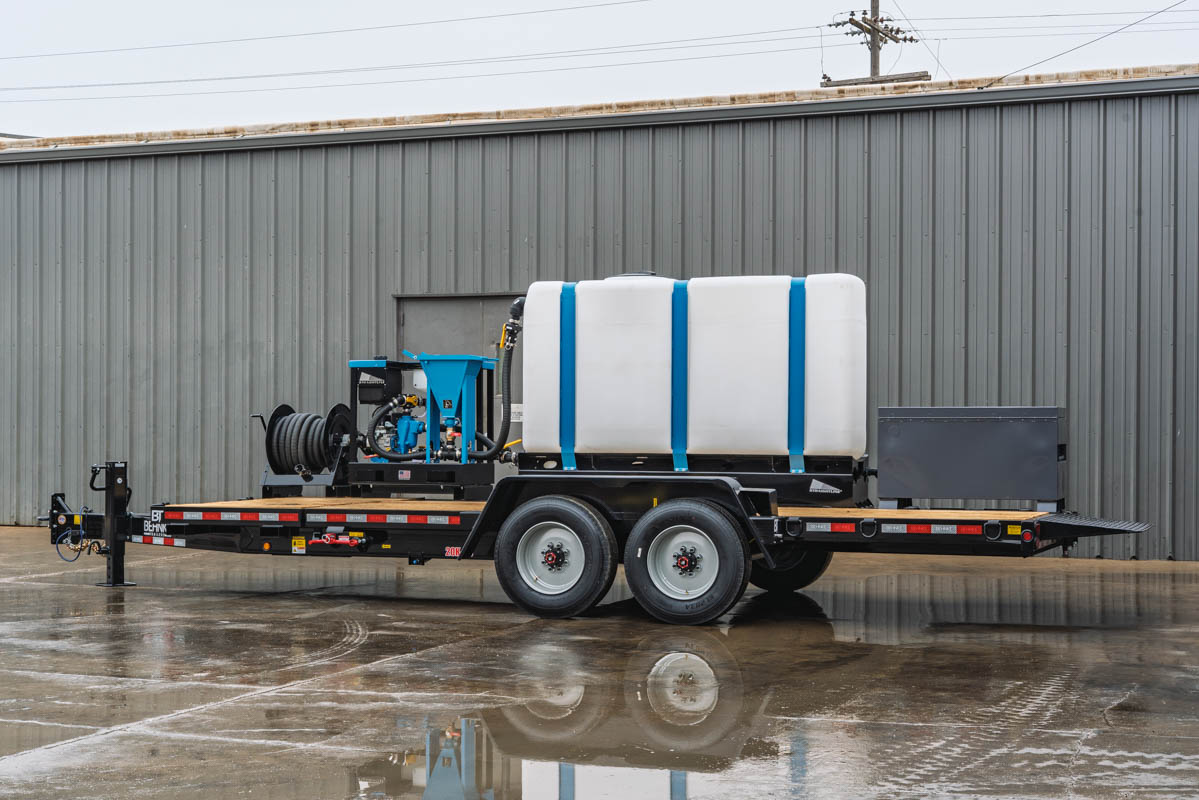

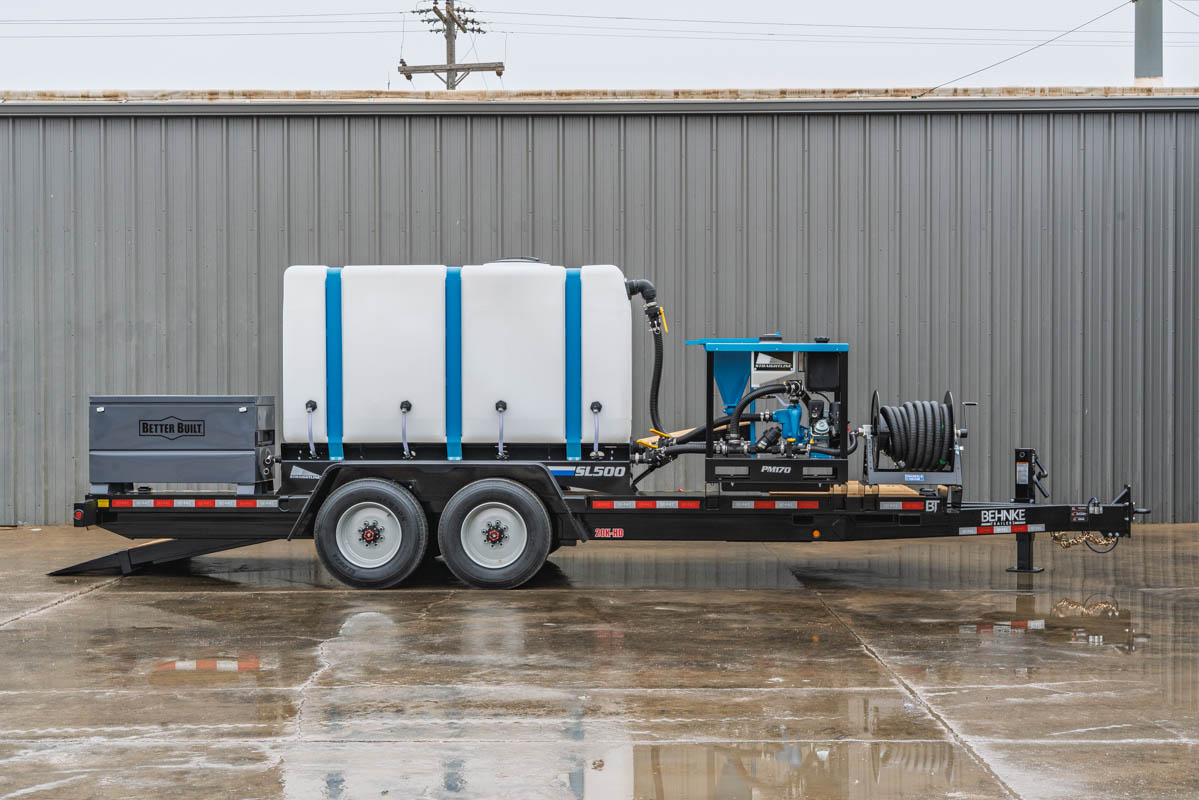

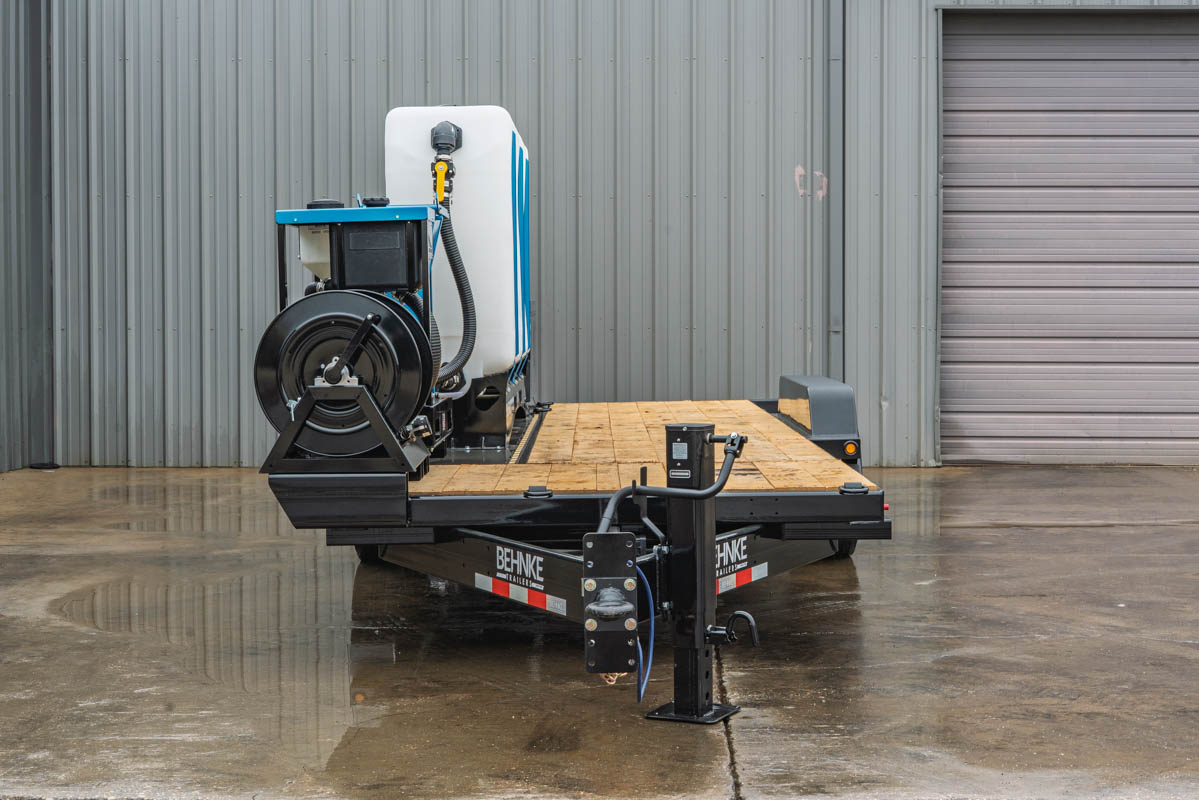

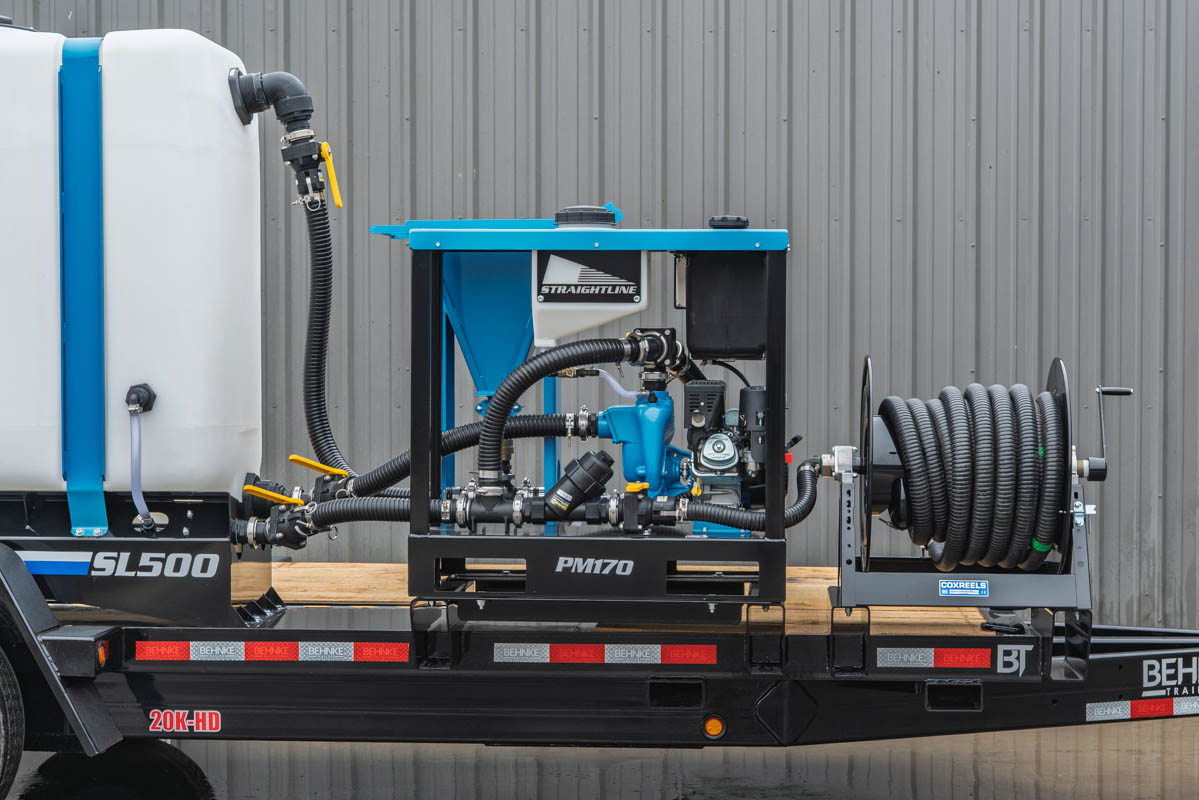

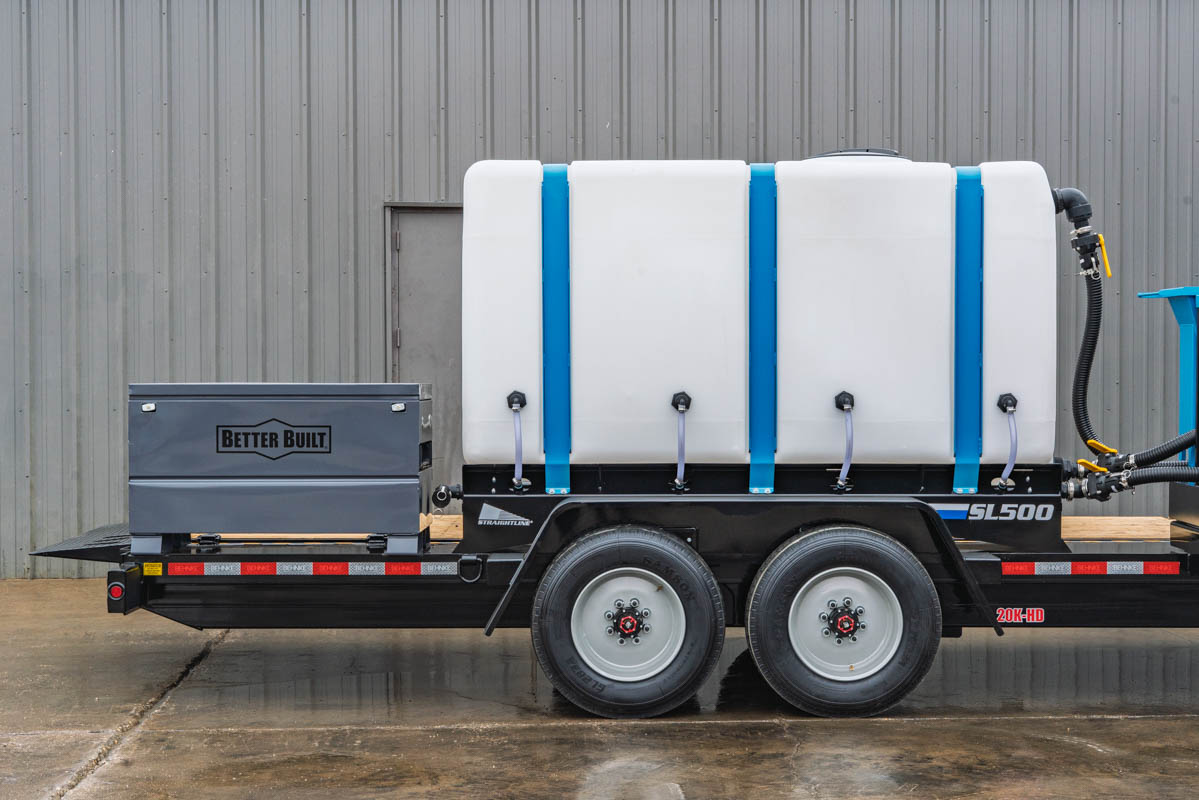

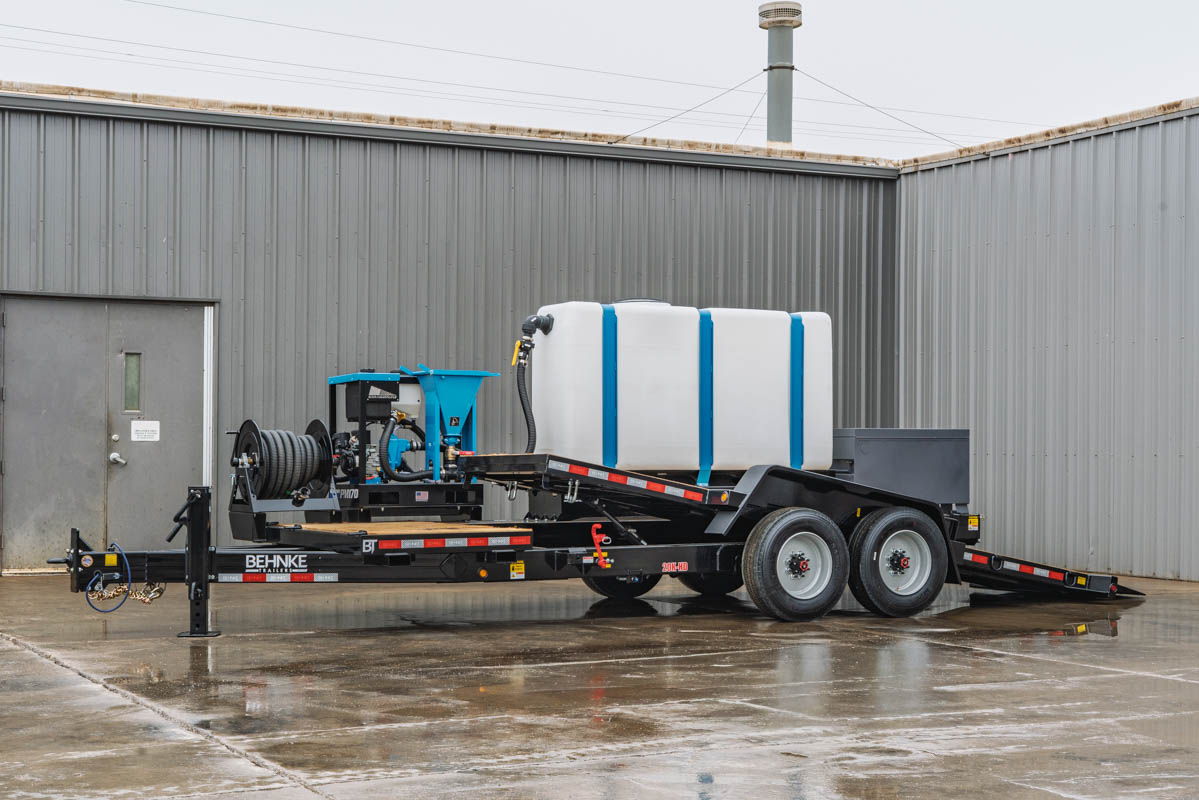

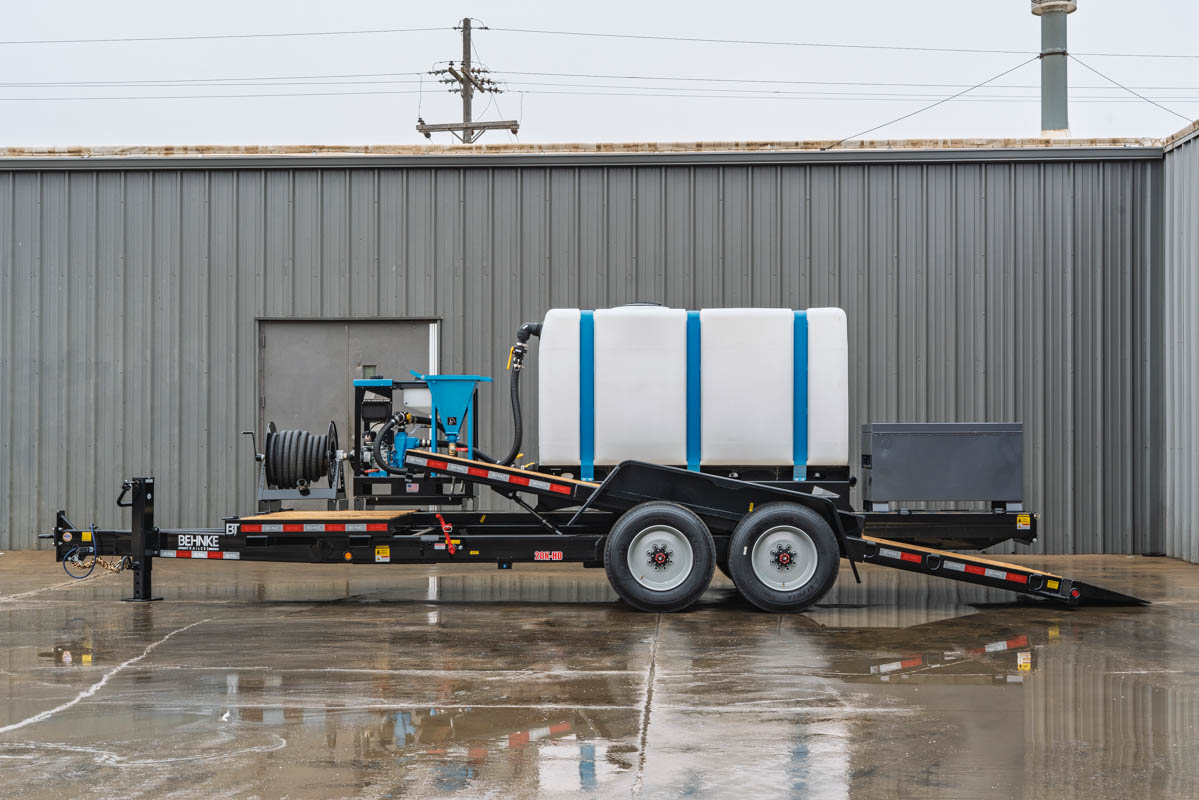

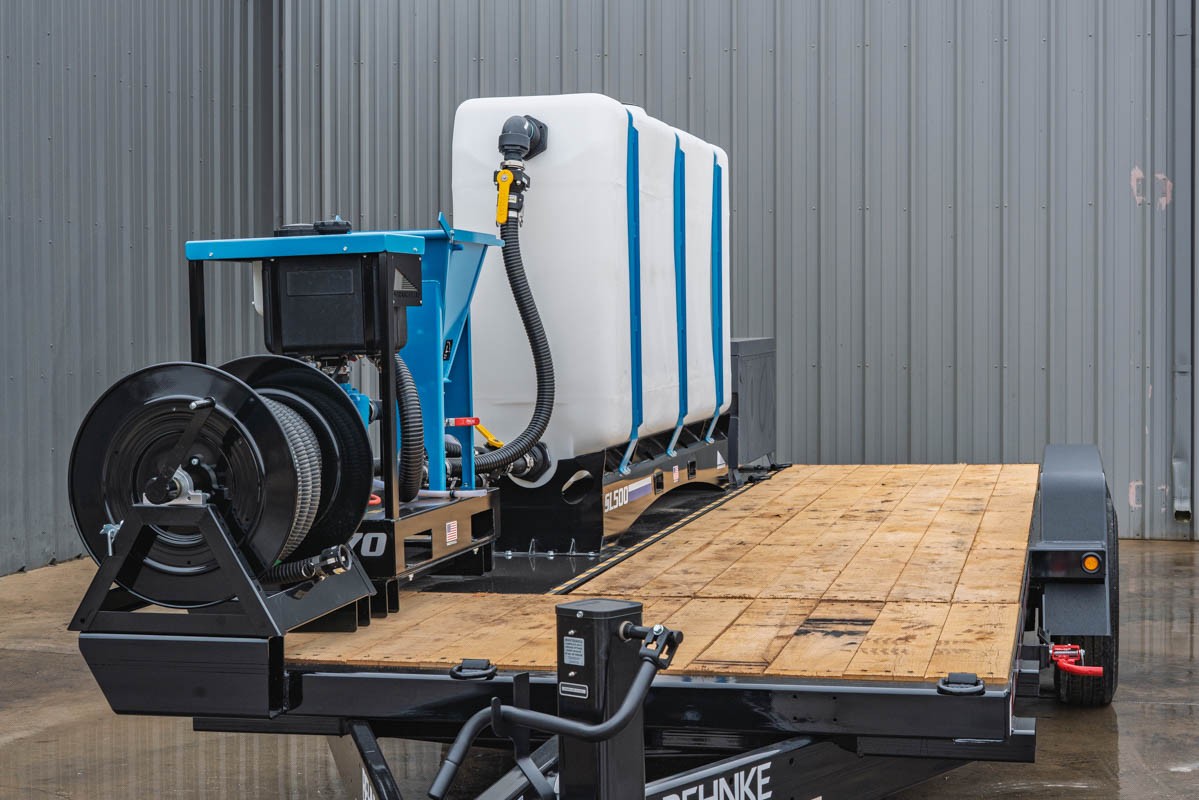

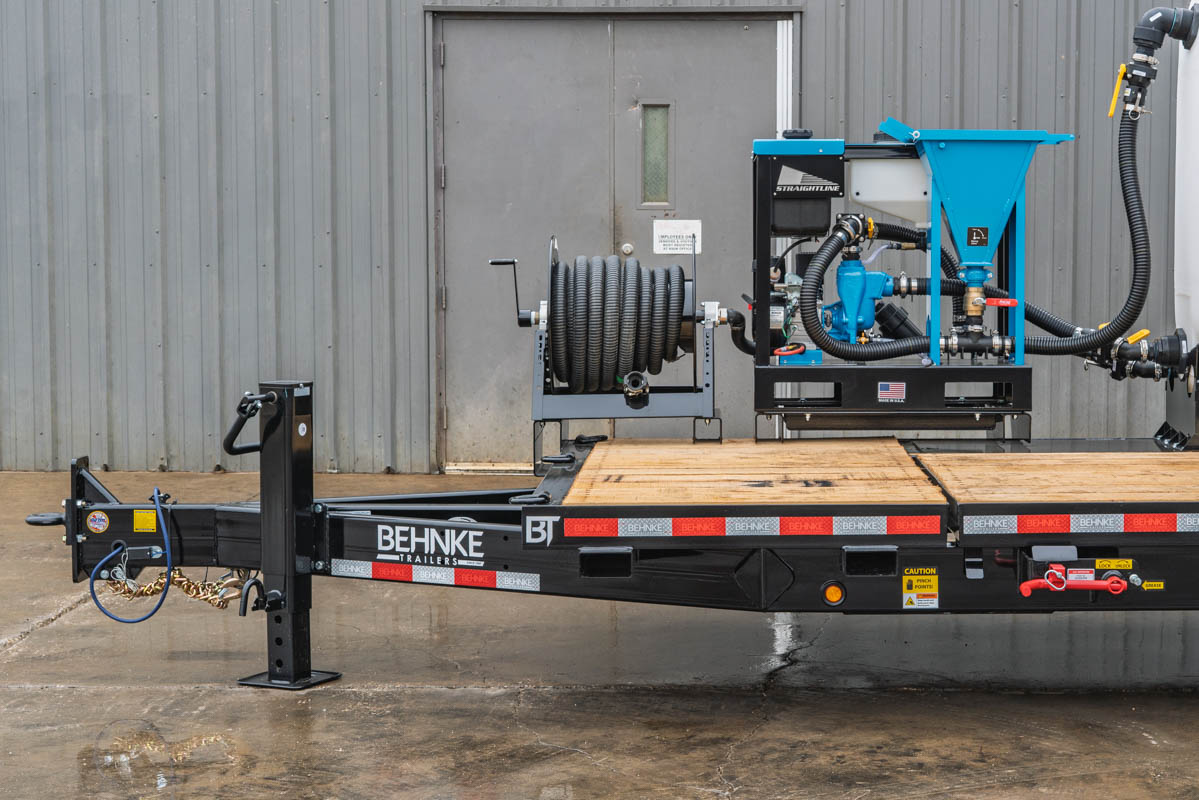

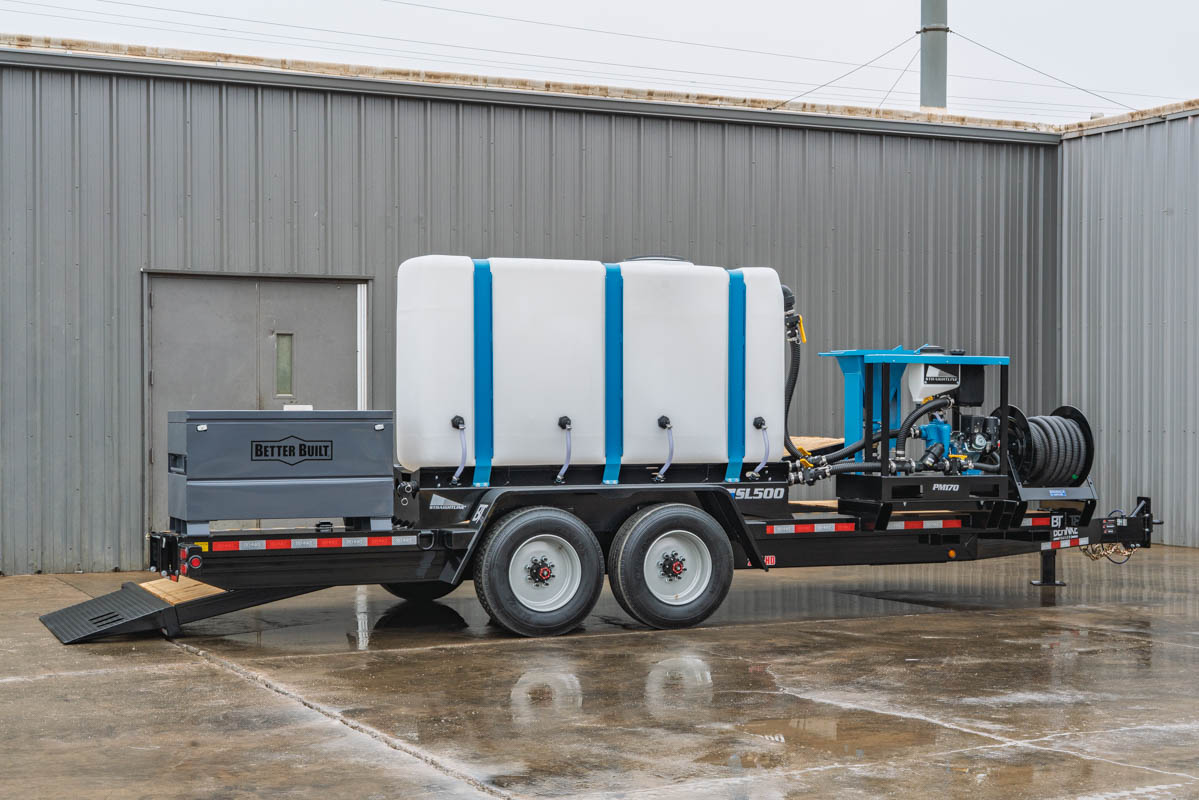

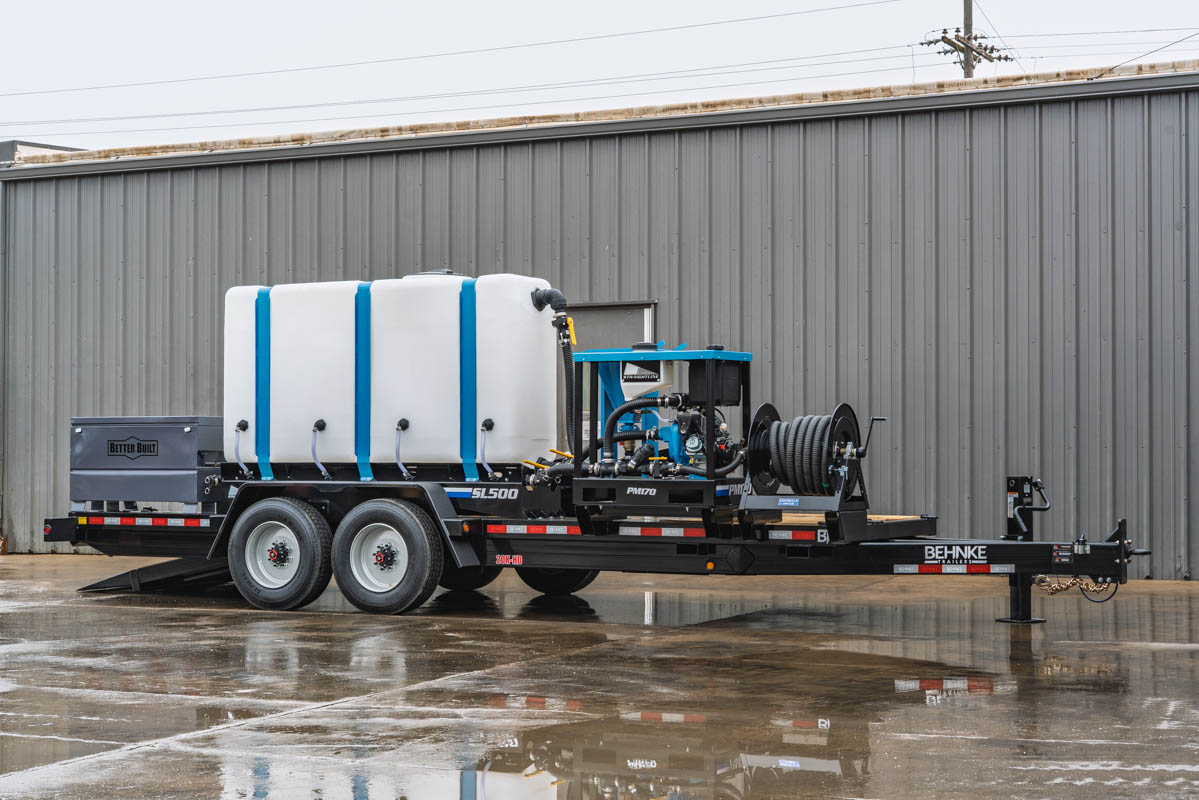

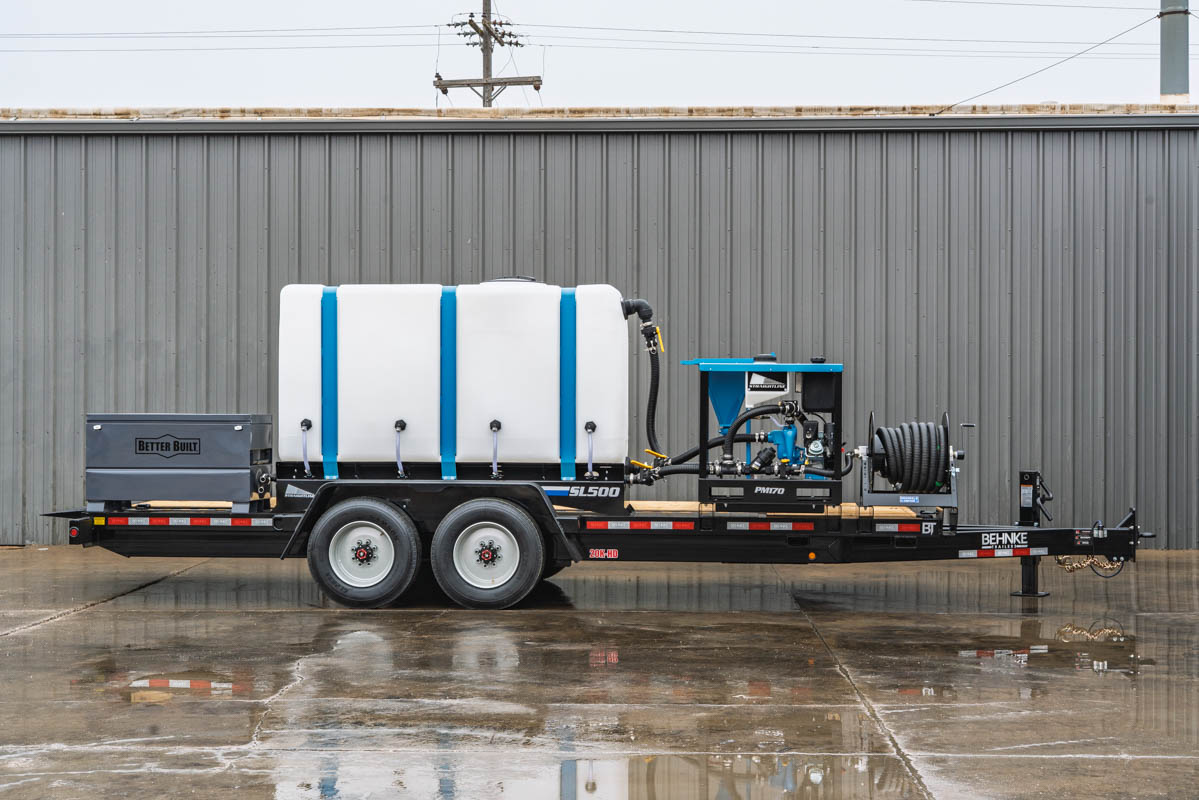

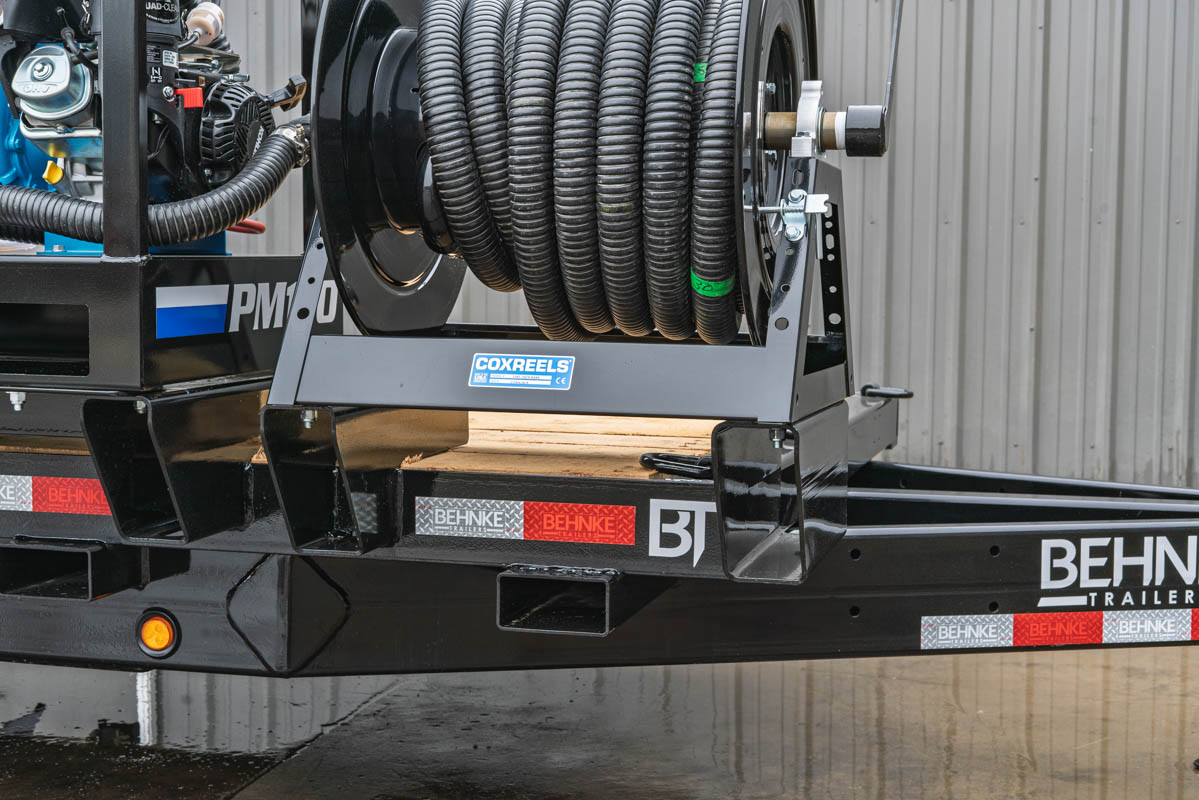

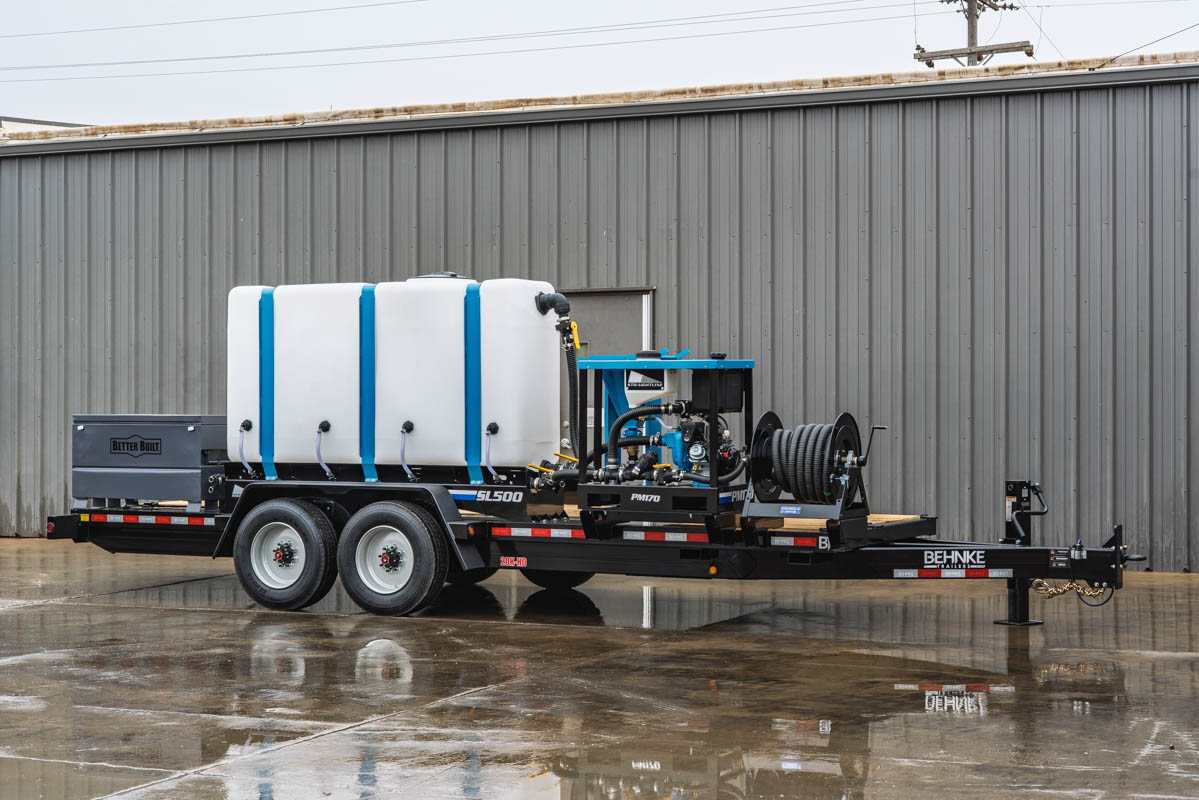

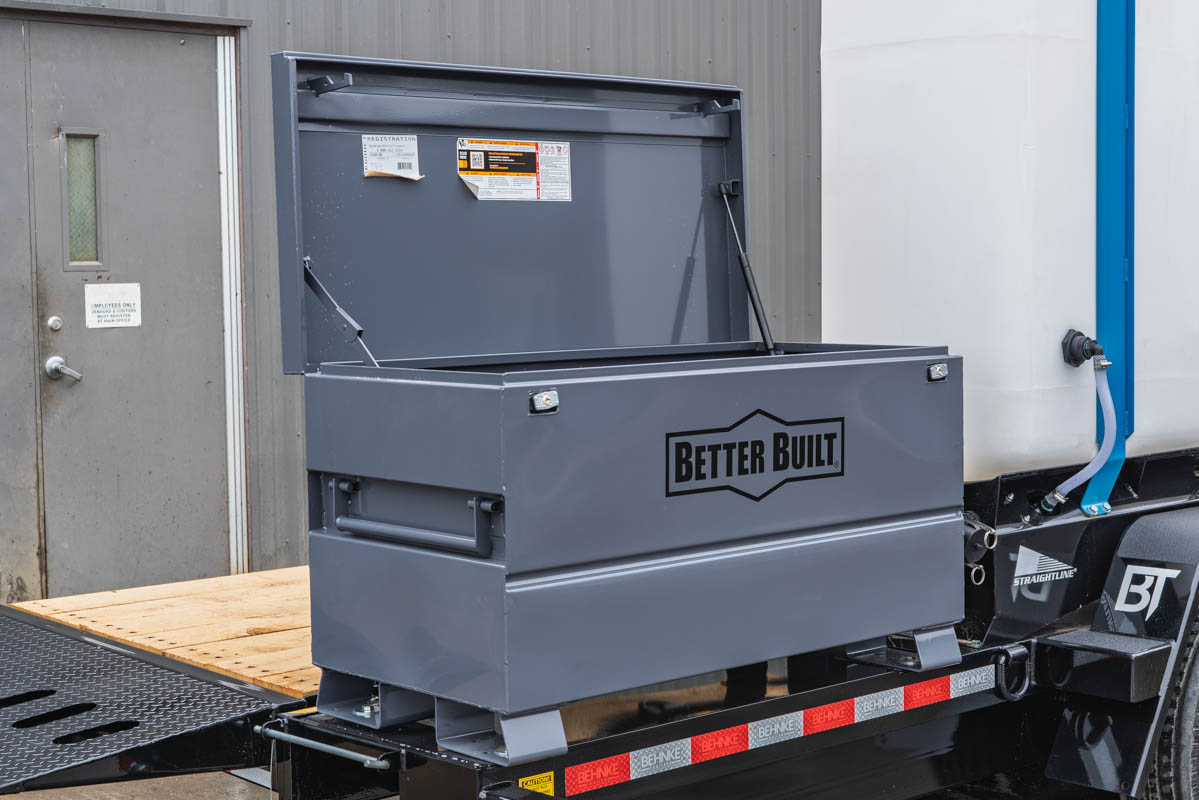

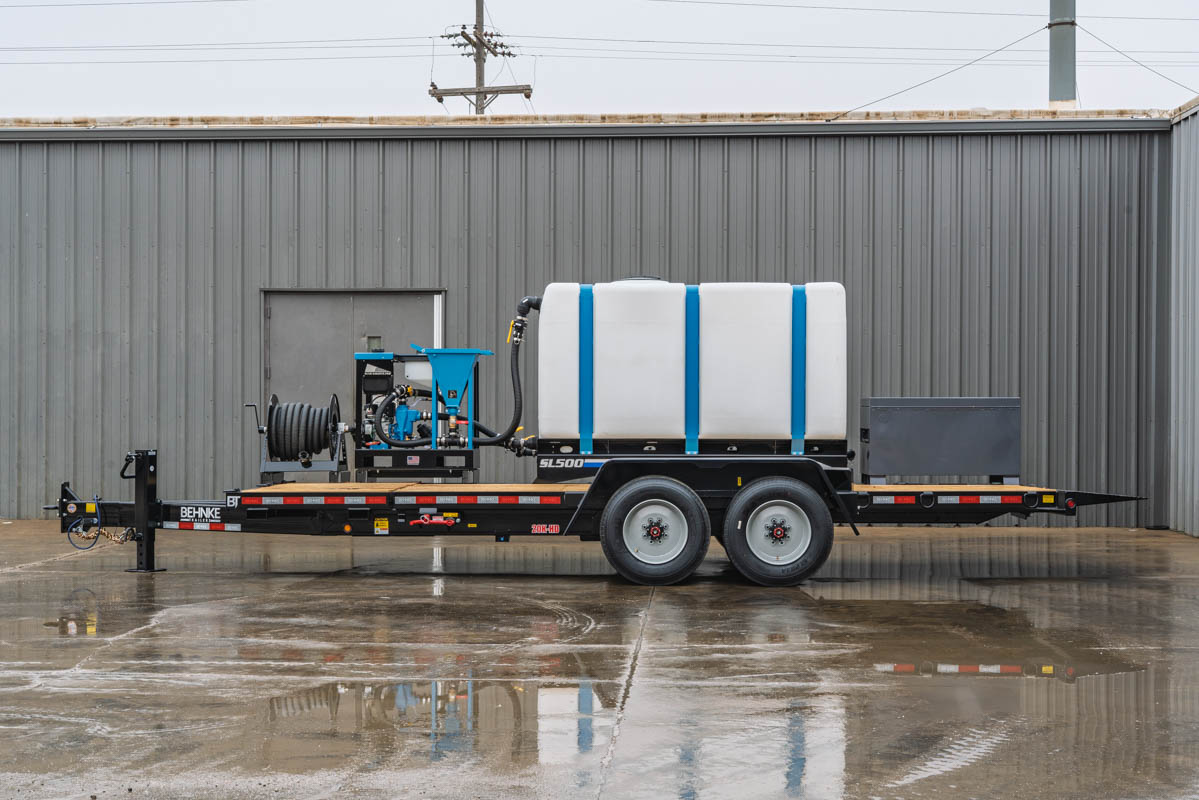

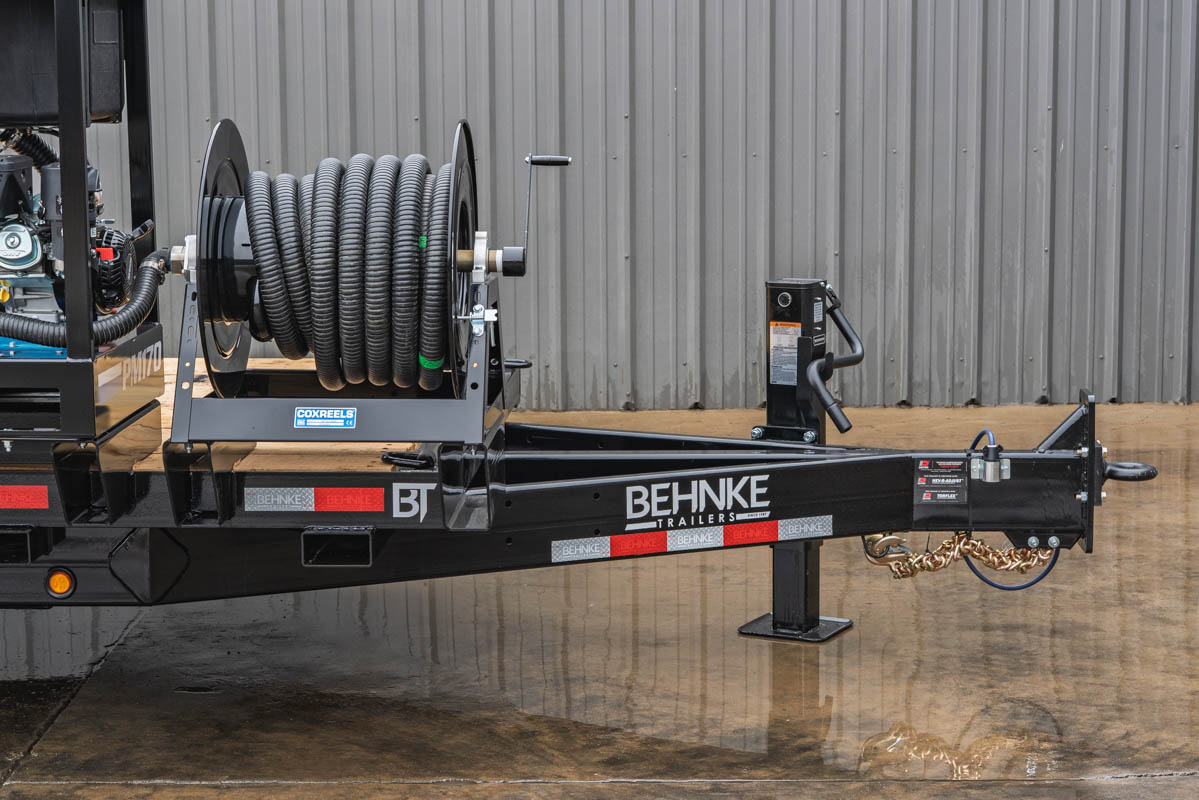

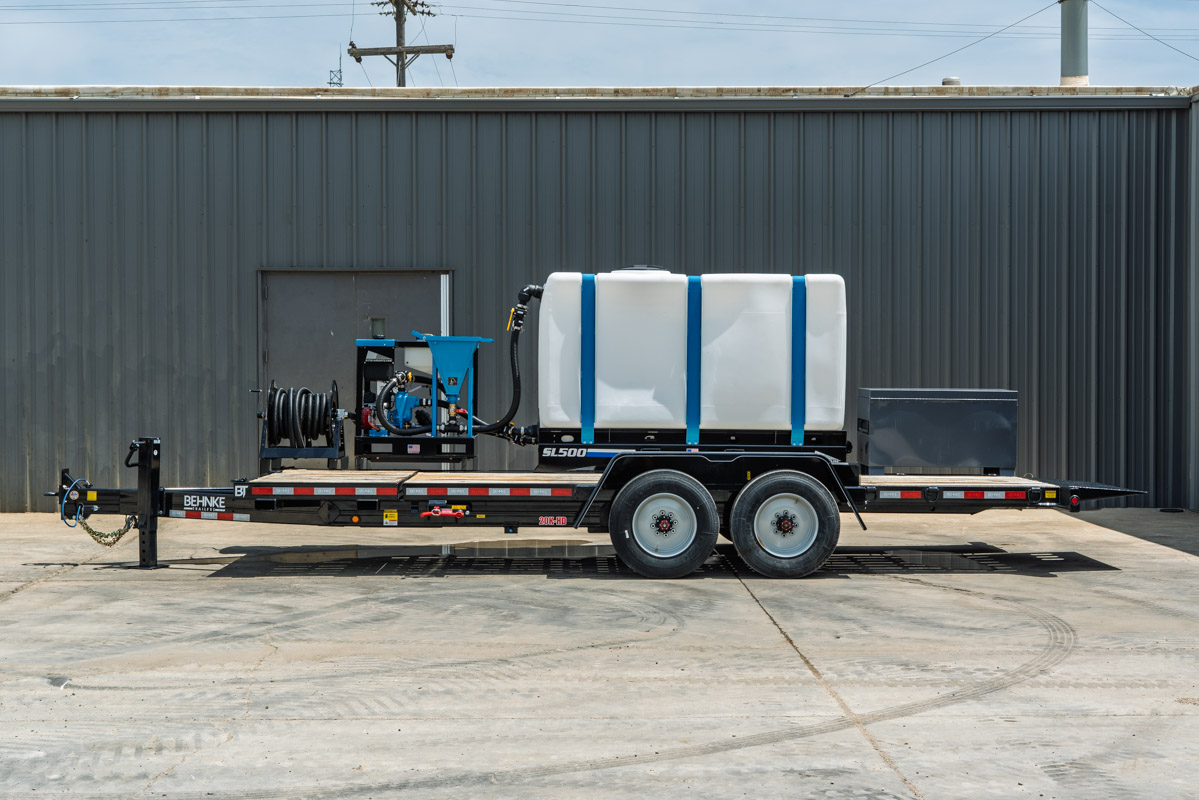

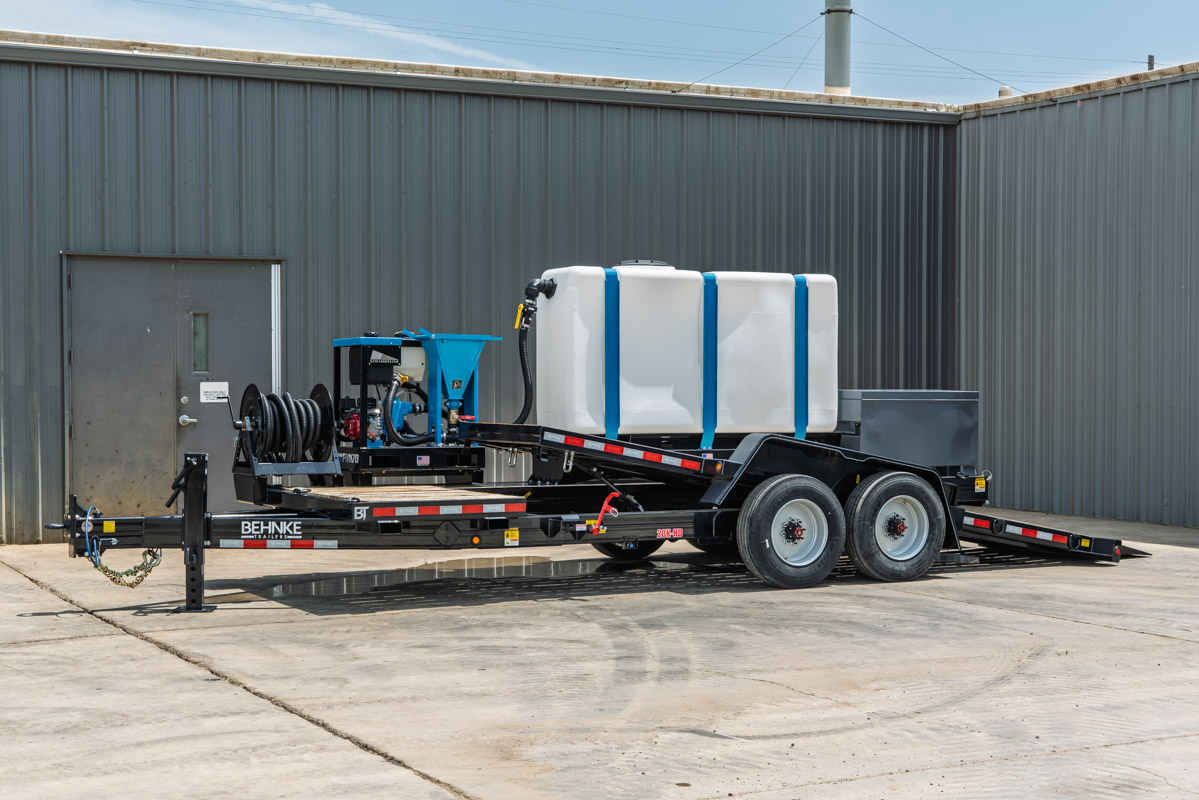

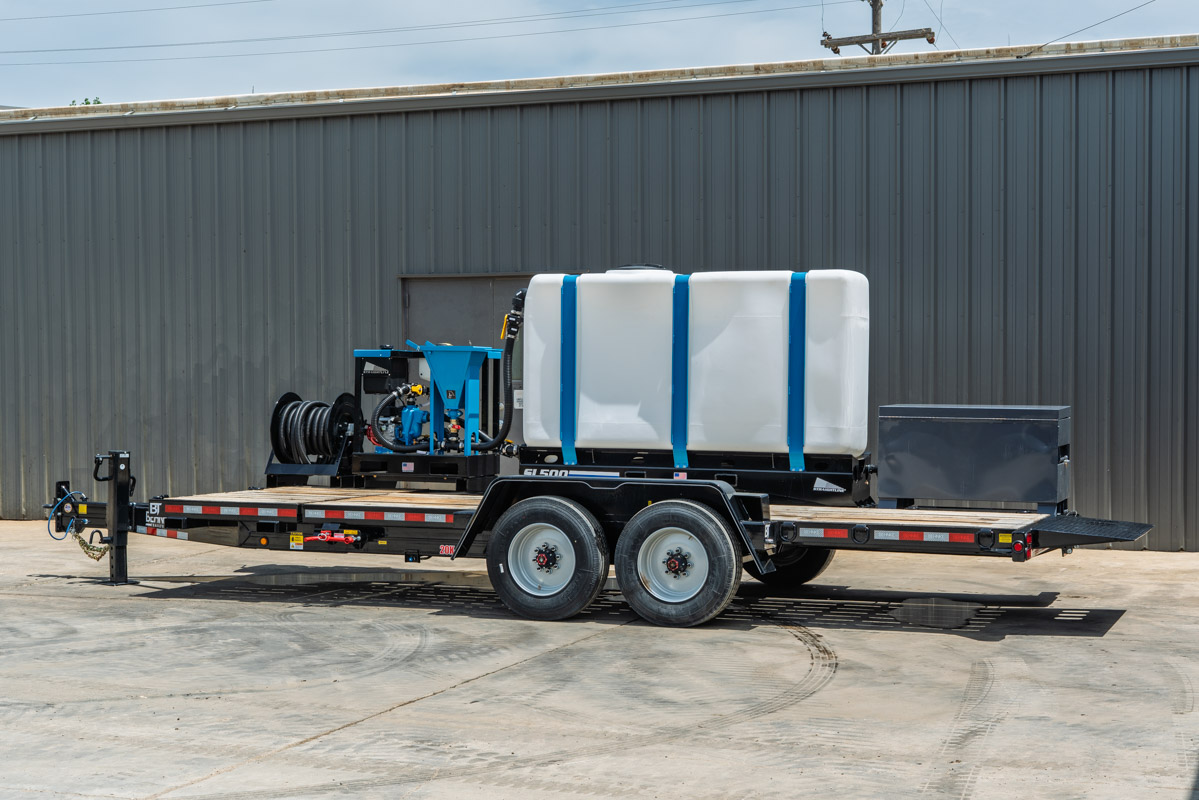

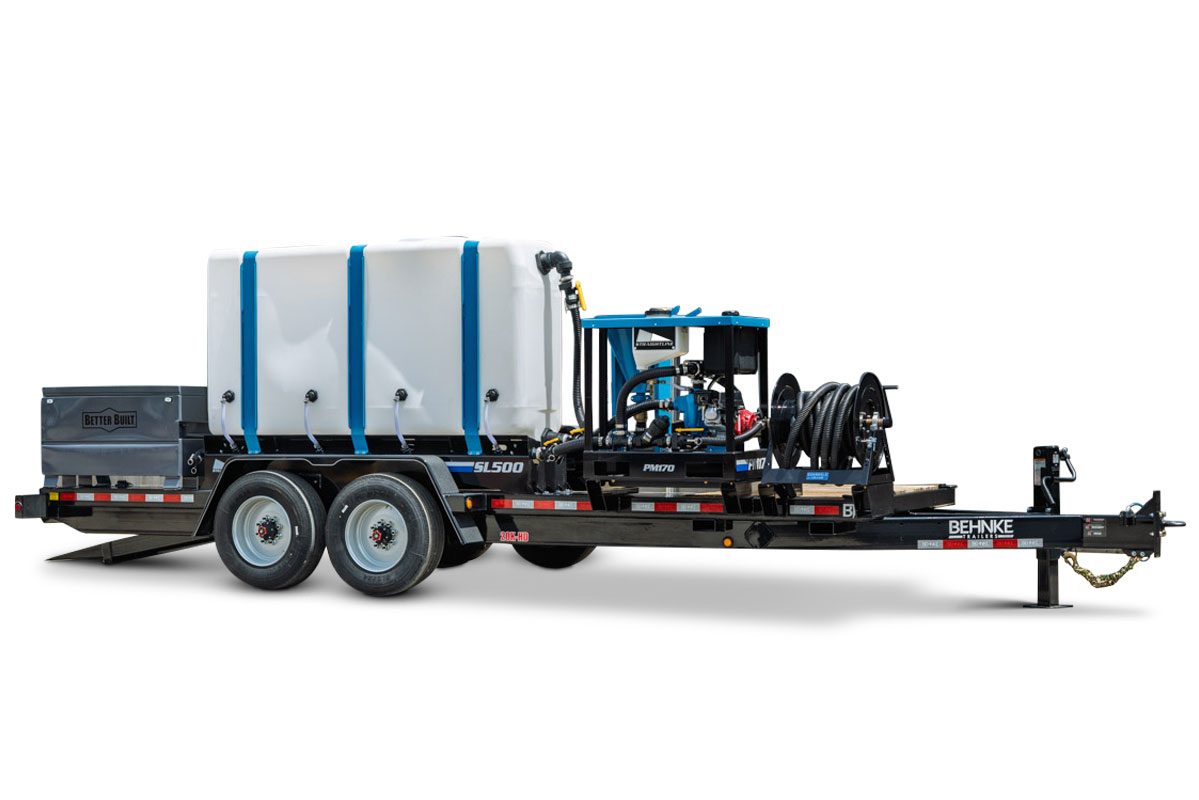

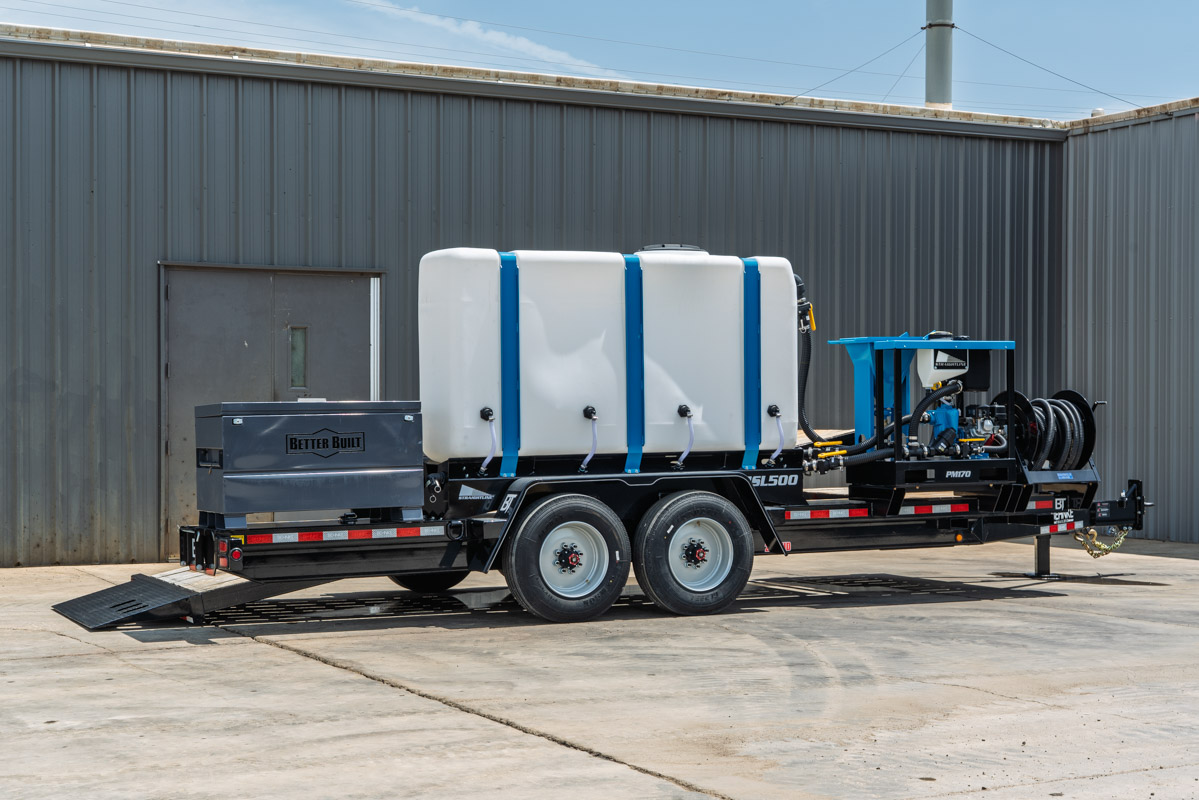

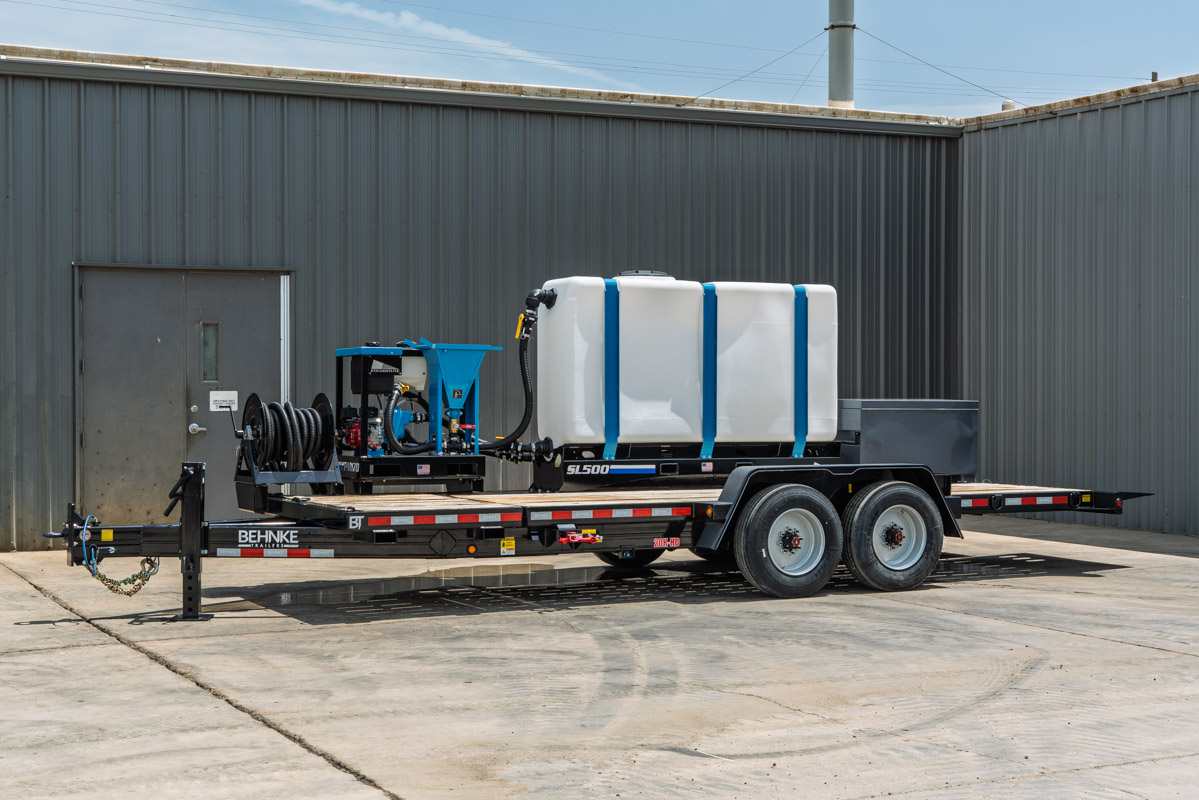

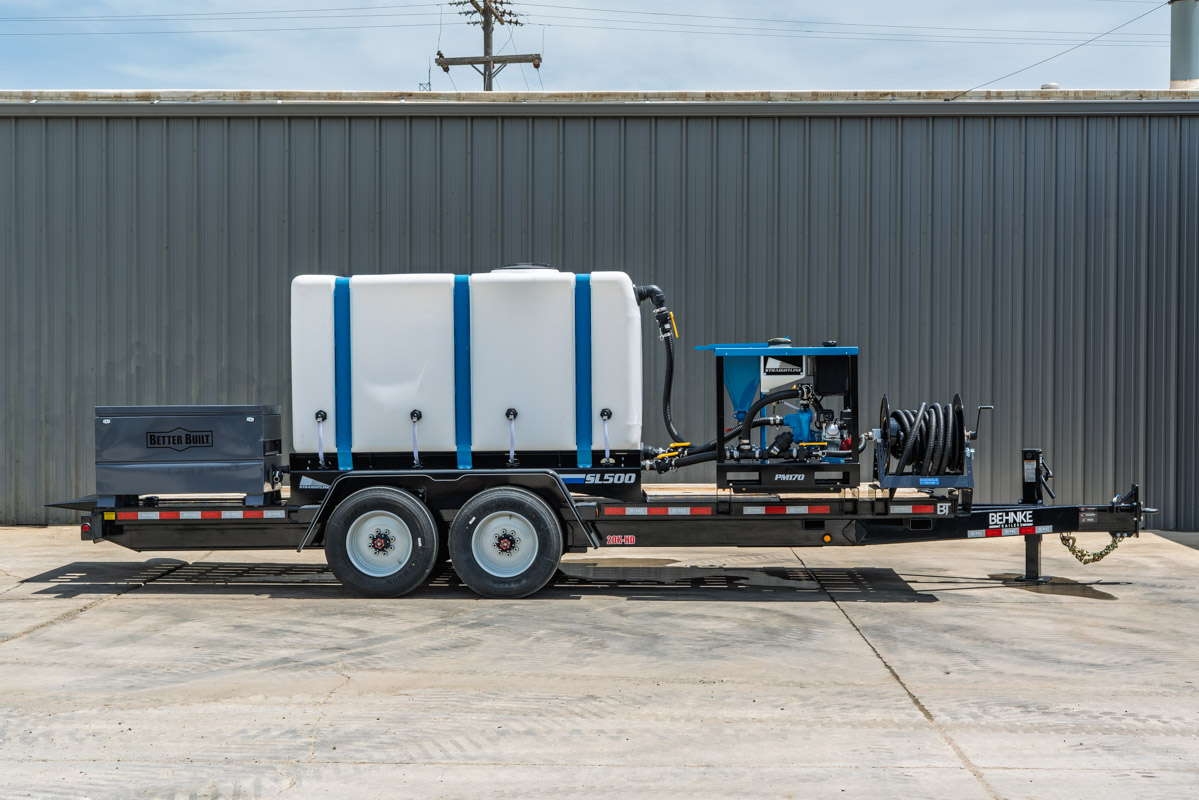

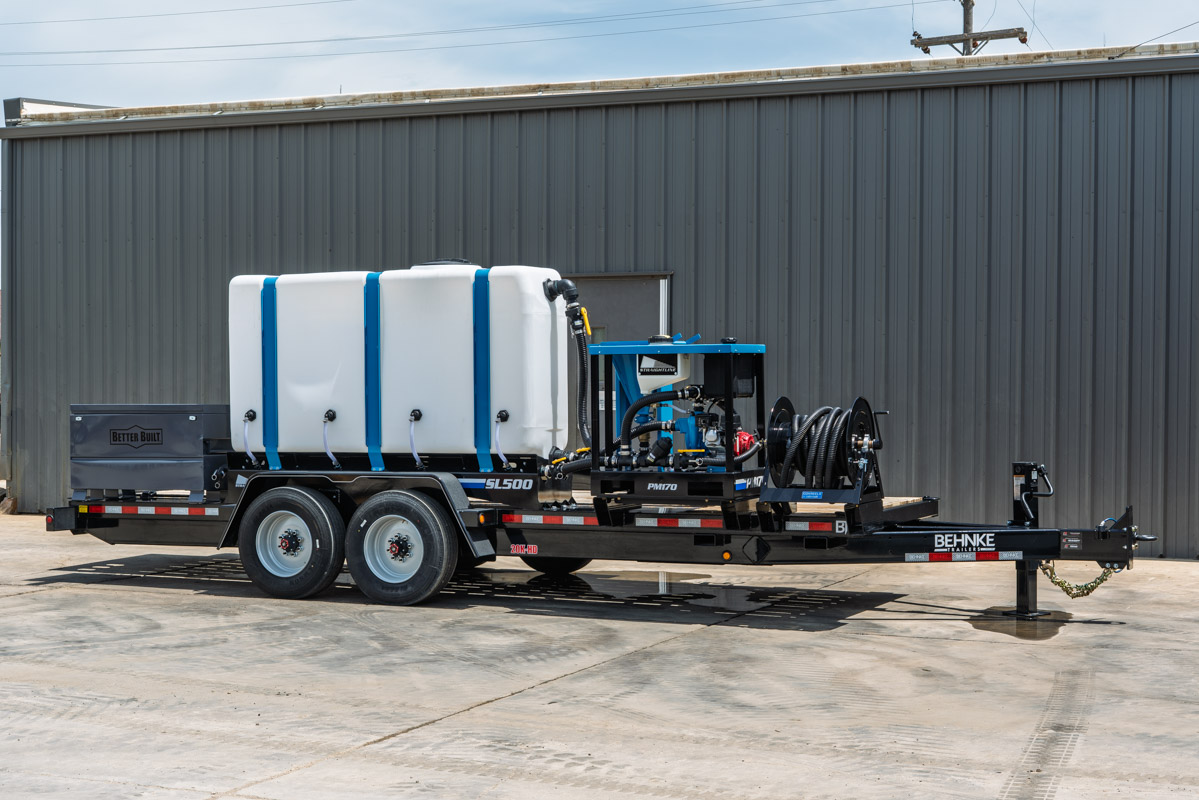

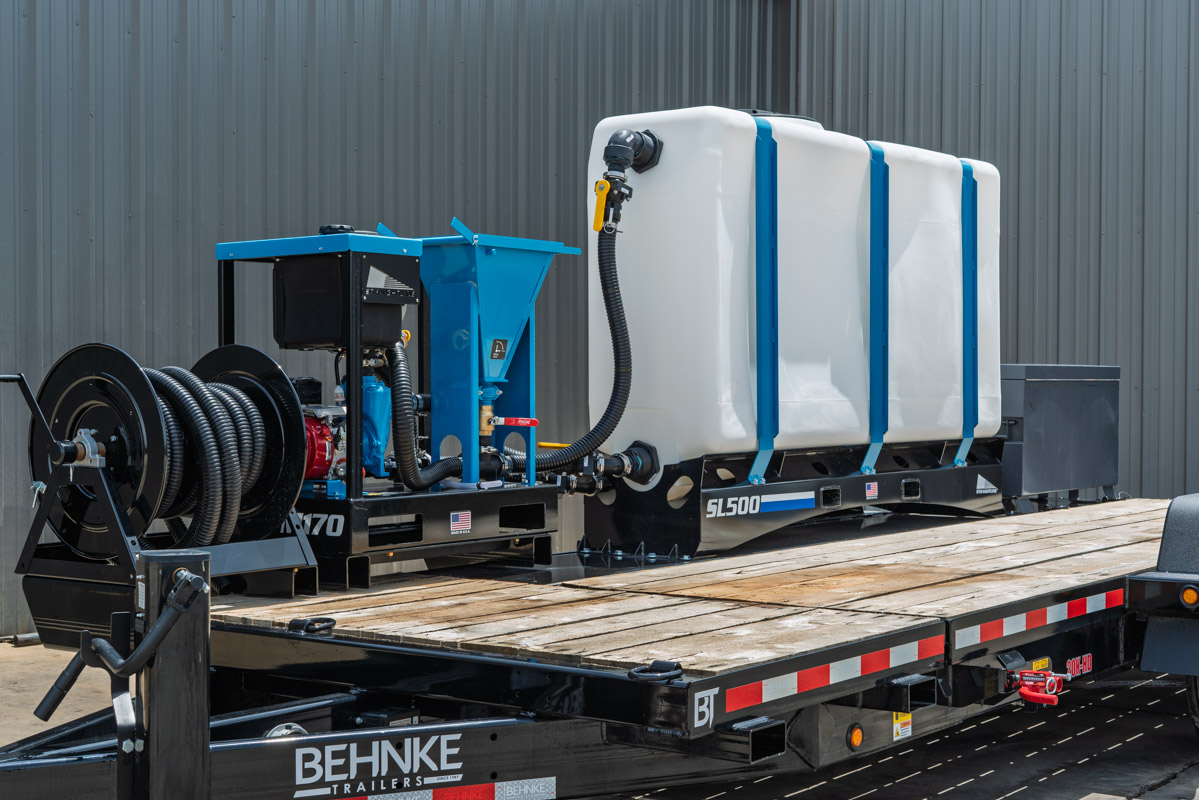

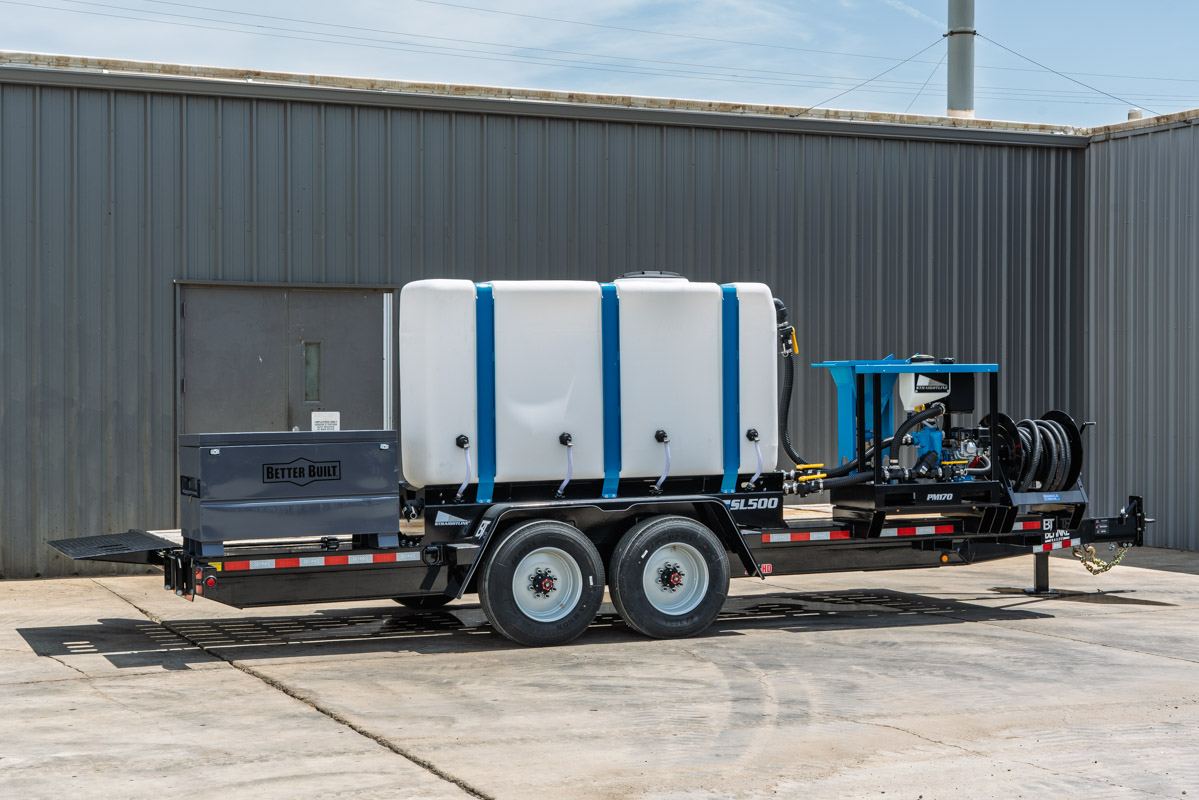

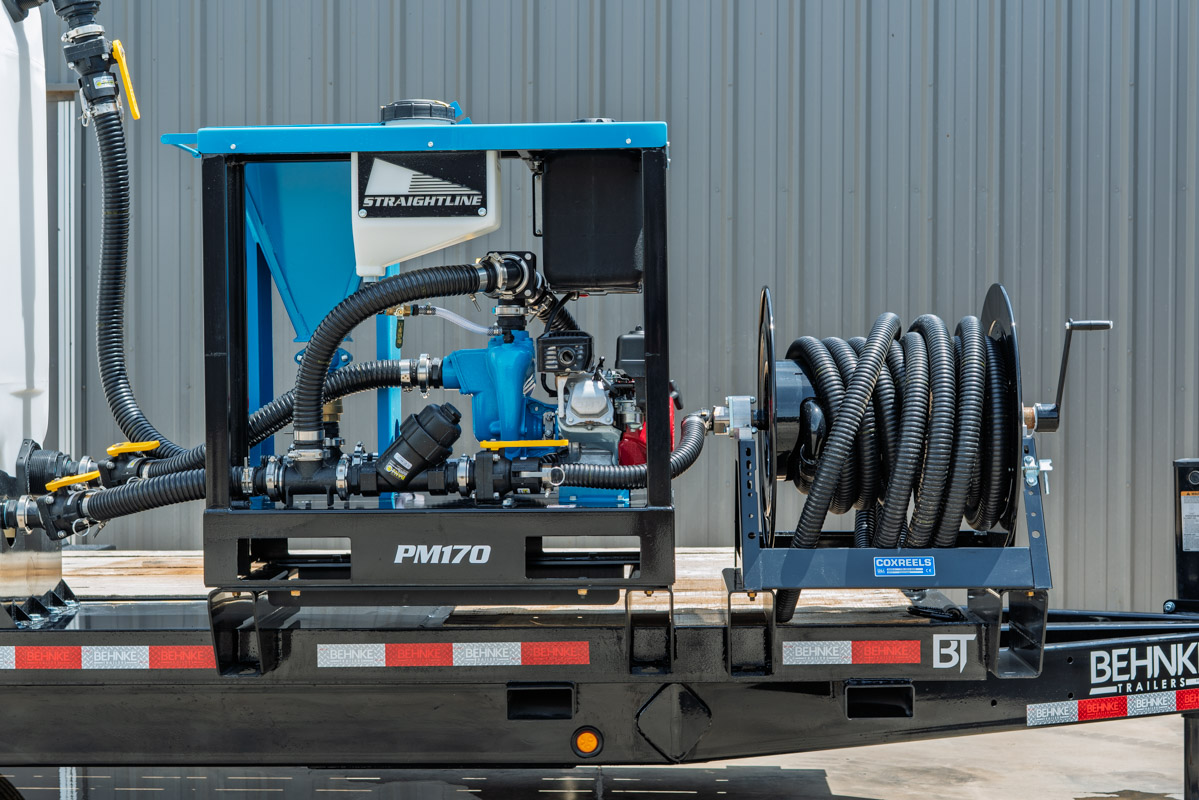

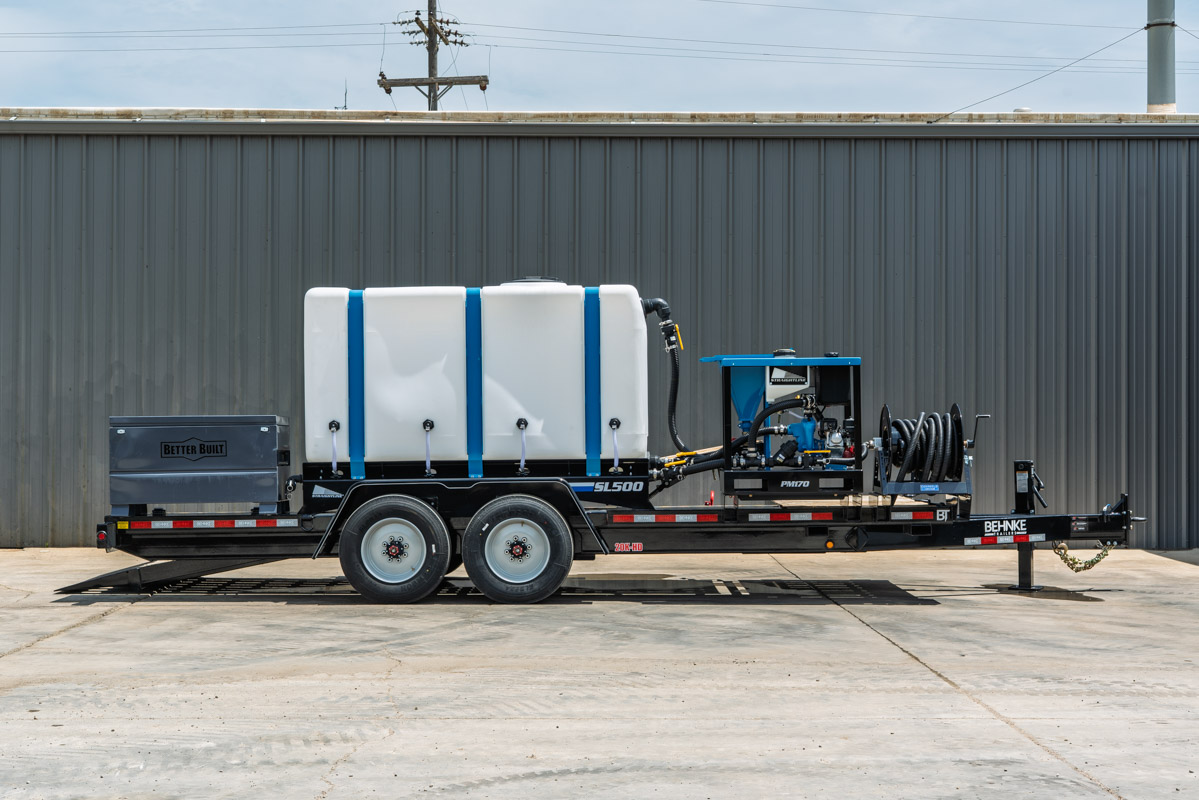

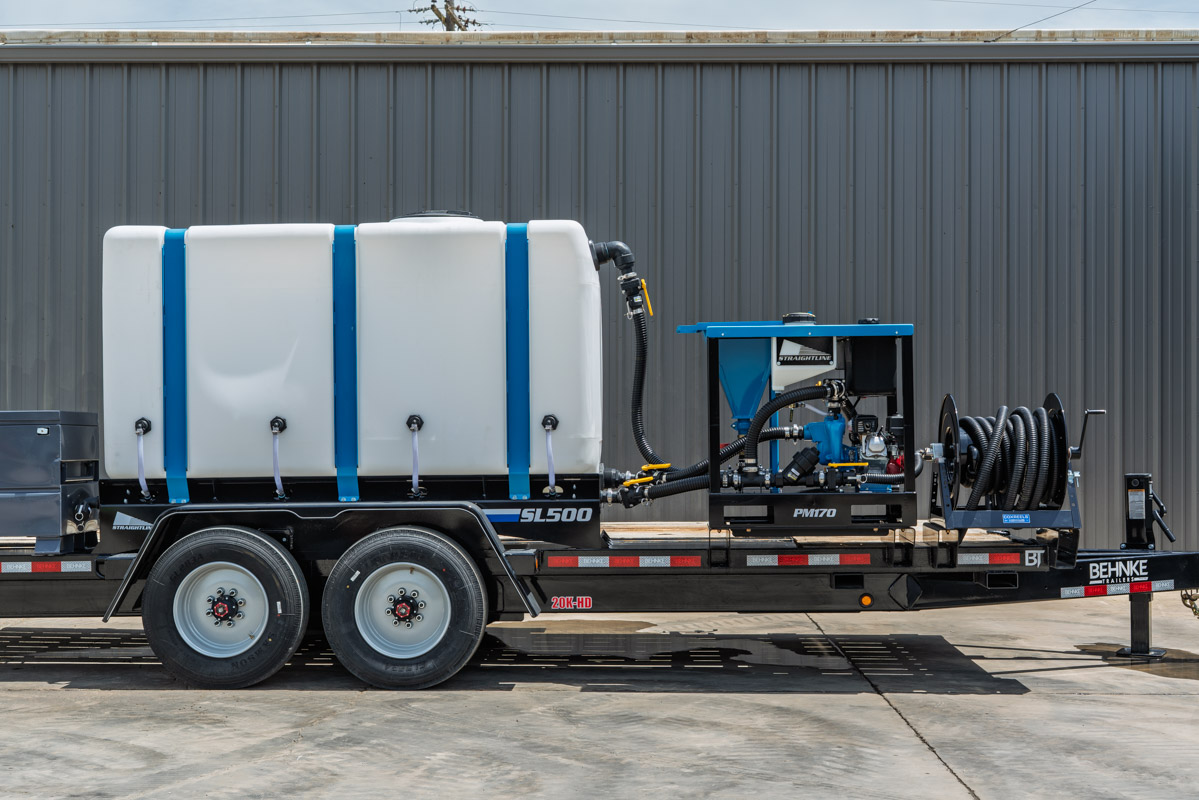

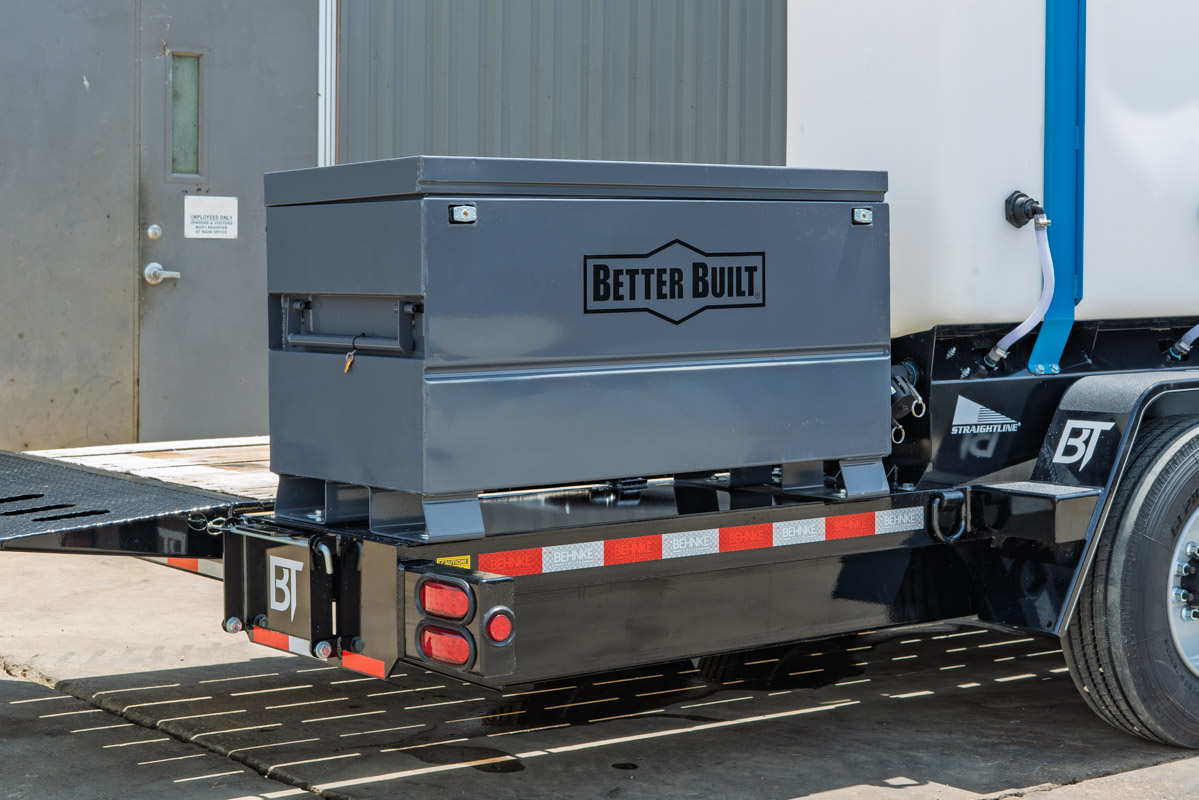

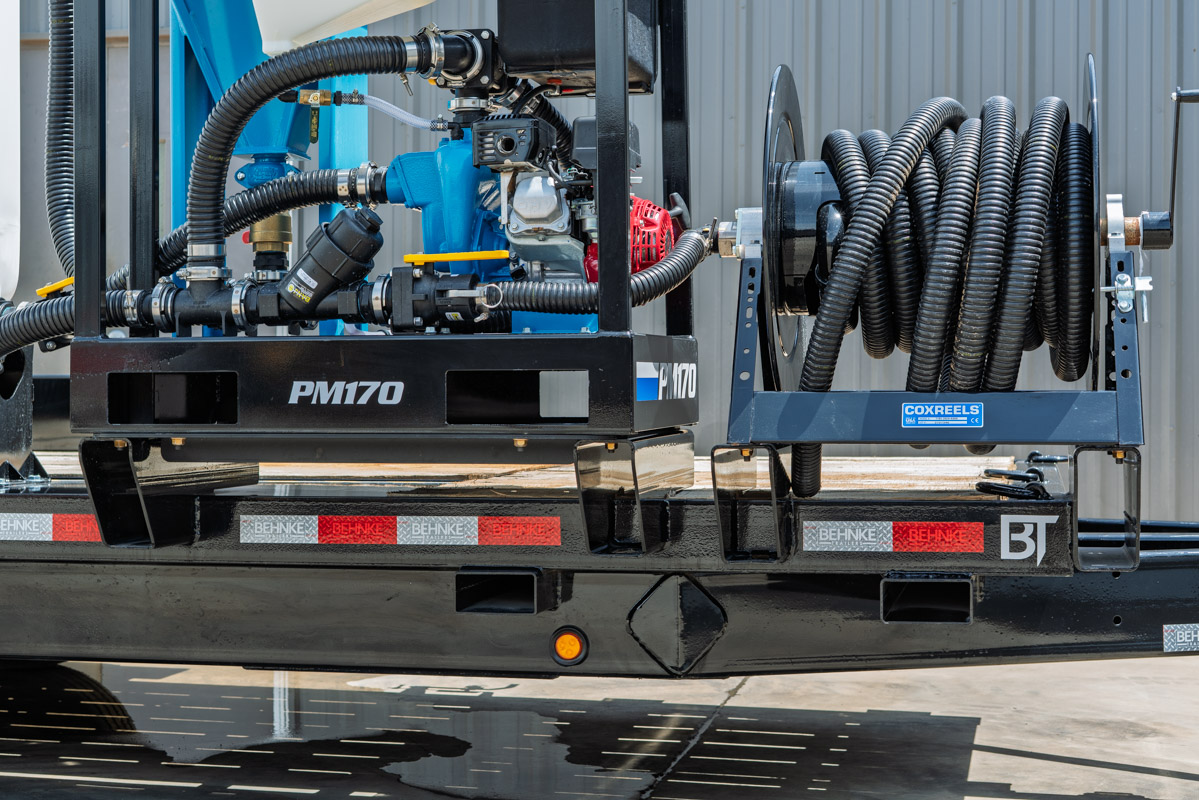

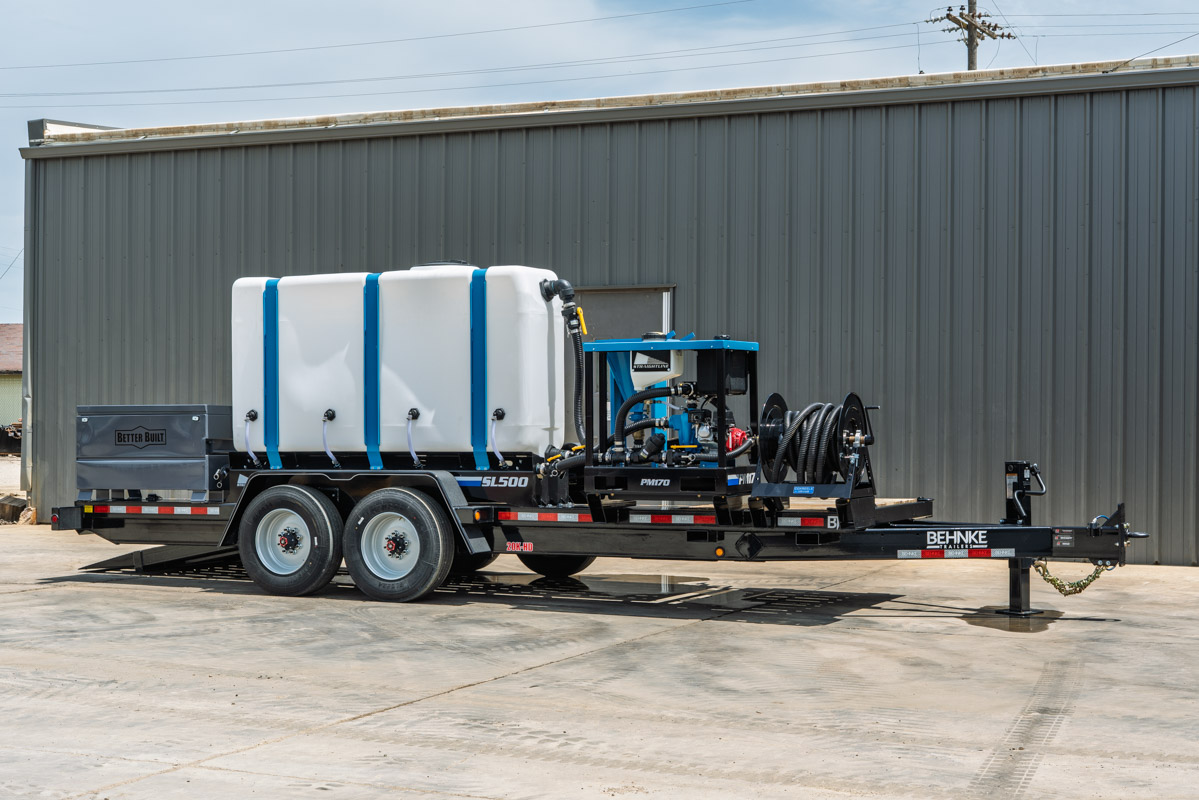

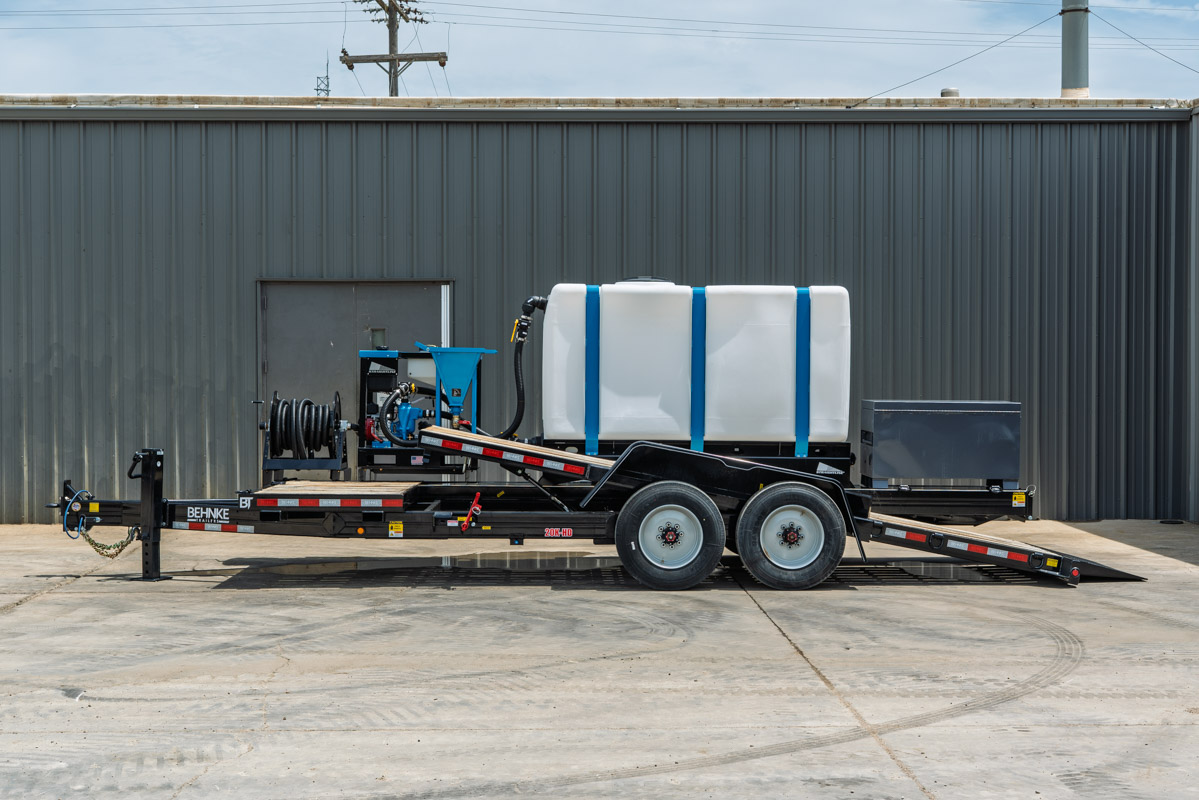

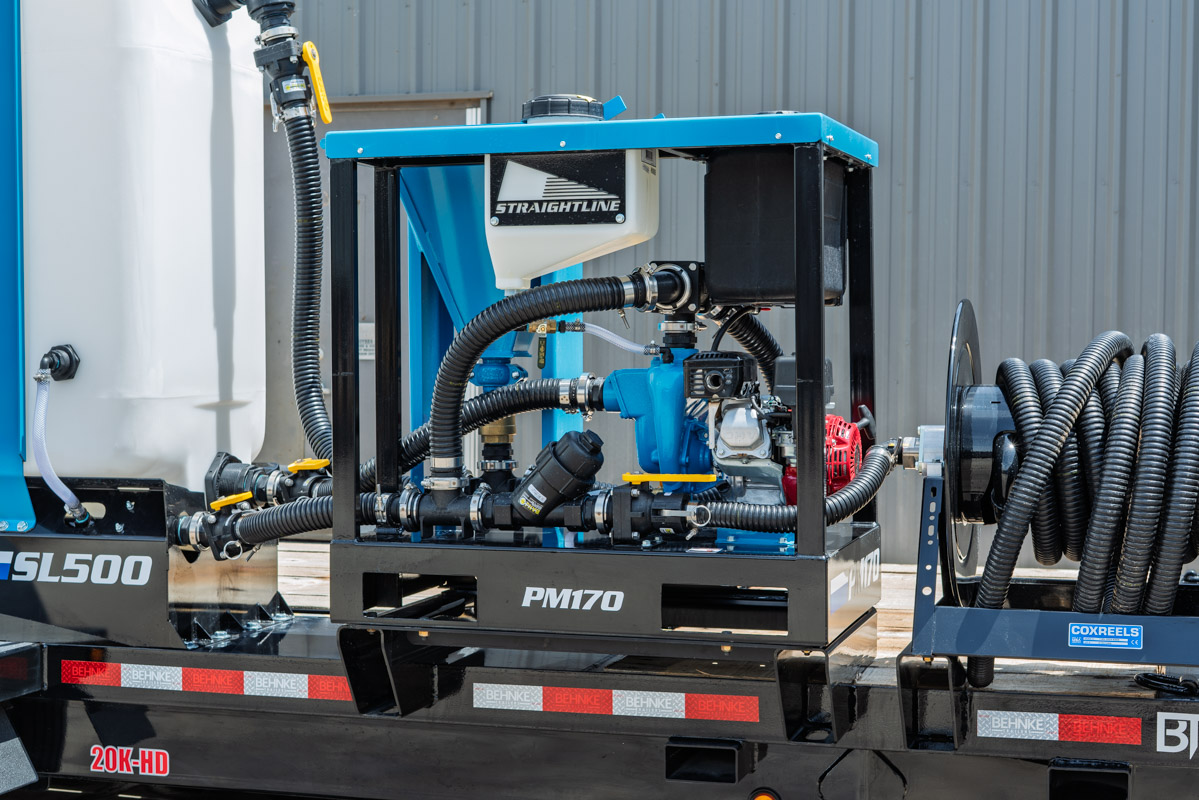

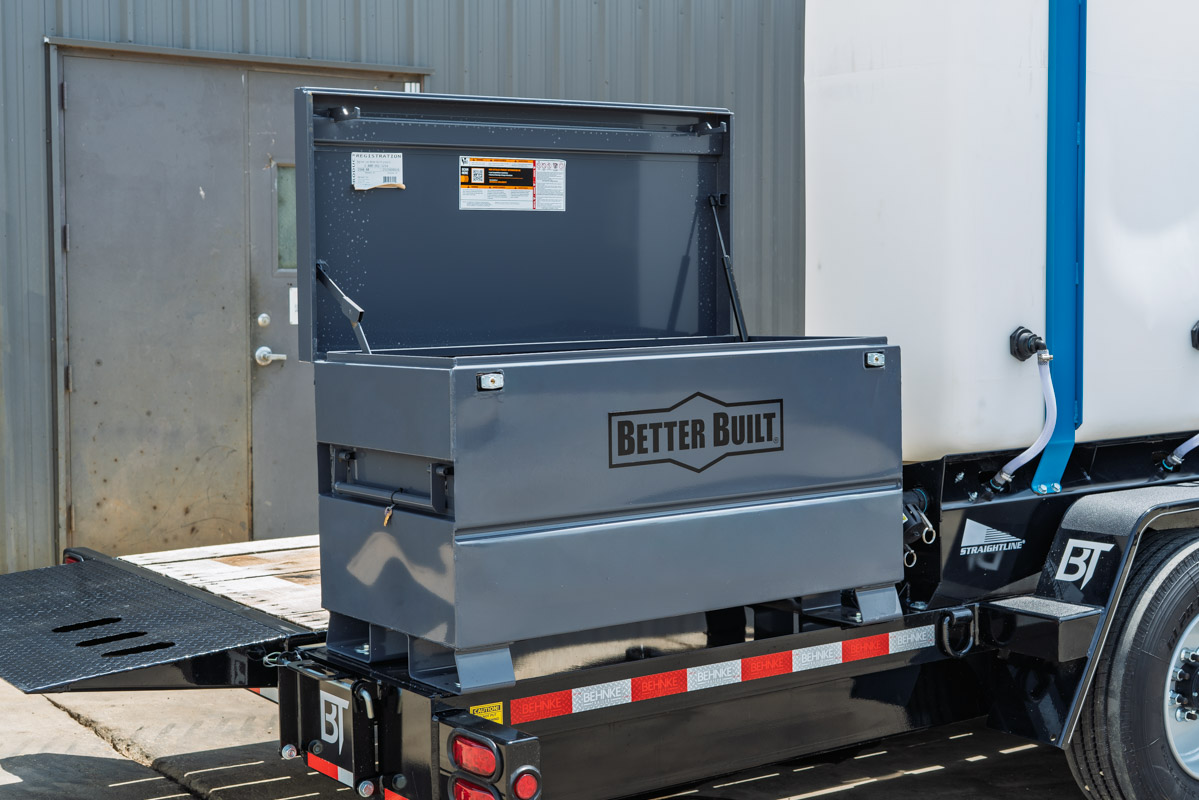

NEW 2026 Behnke TBCT2220ET-BT-R directional drill split tilt trailer. This 10-ton split tilt trailer comes with electric brakes, drill pipe storage, Cox mud hose reel, and 48" toolbox. This trailer package comes with a 2026 StraightLine HDD PM170 bentonite mixing system with StraightLine HDD SL500 500-gallon tank.

Trailer Specs & Capacity

• GVWR: 20,000 lbs.
• Weight: 6,200 lbs.

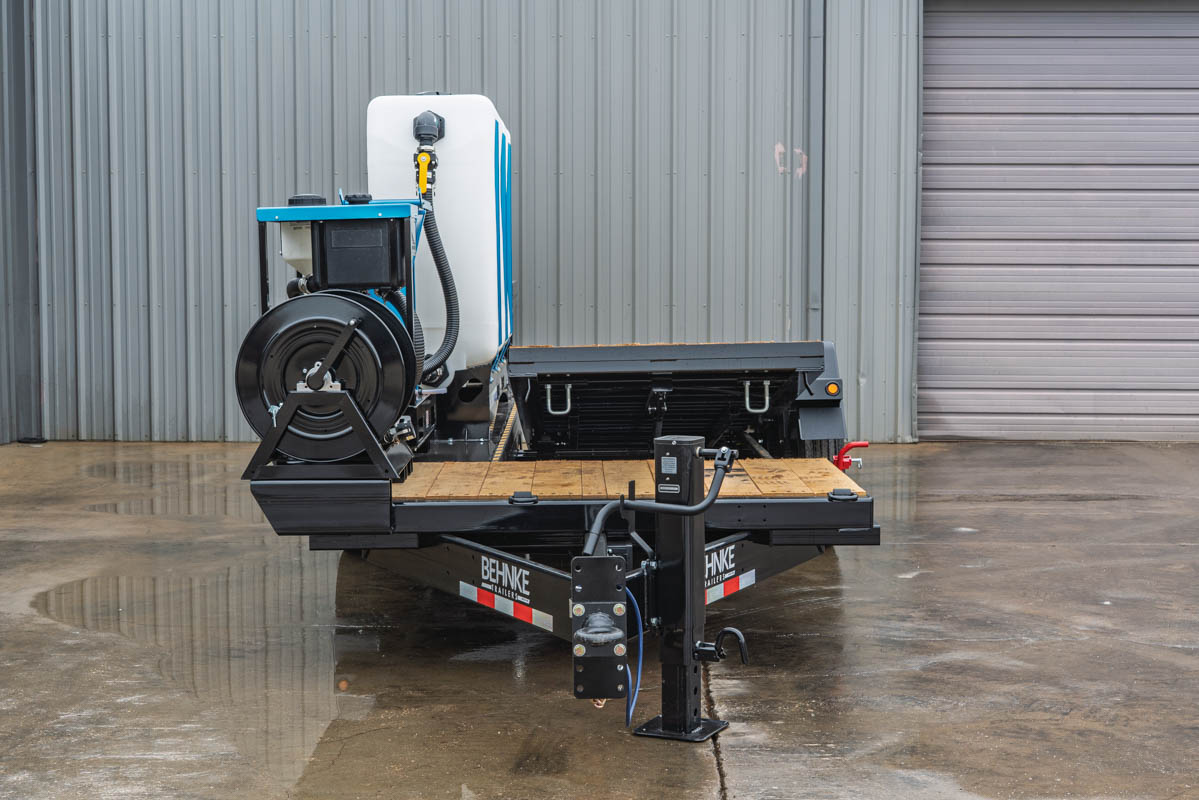

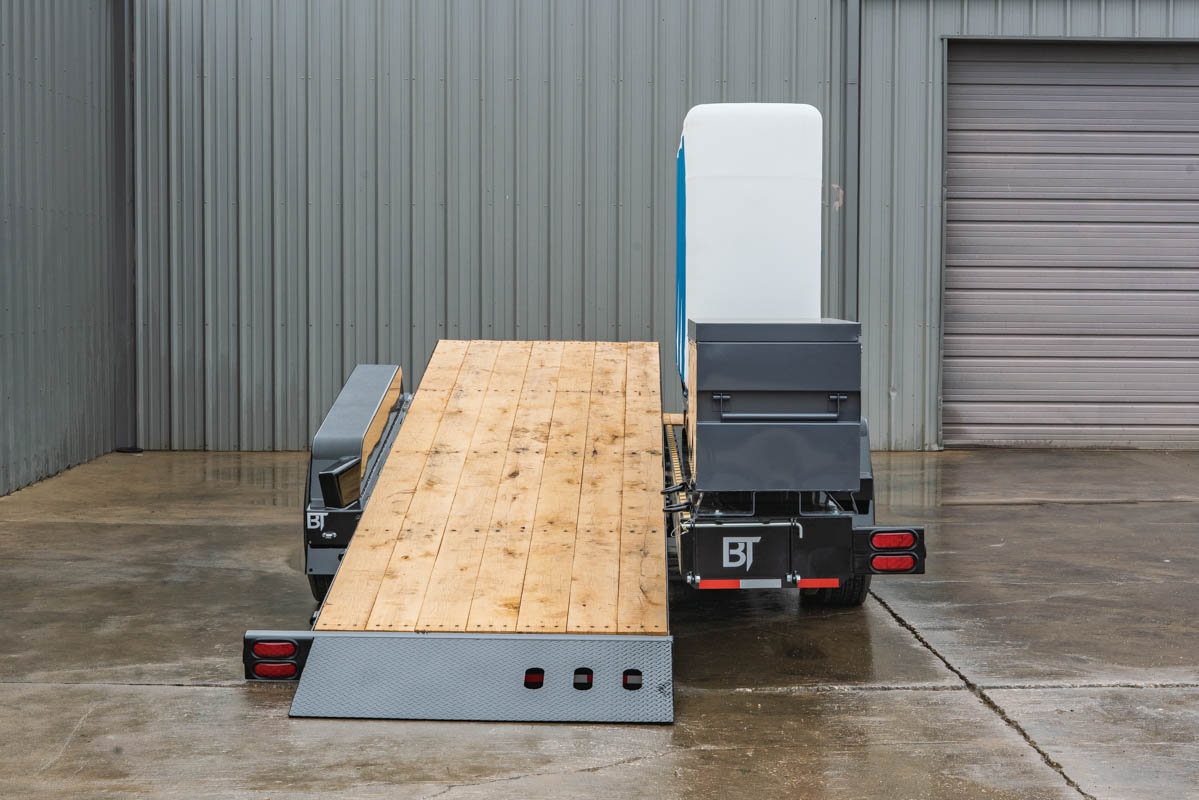

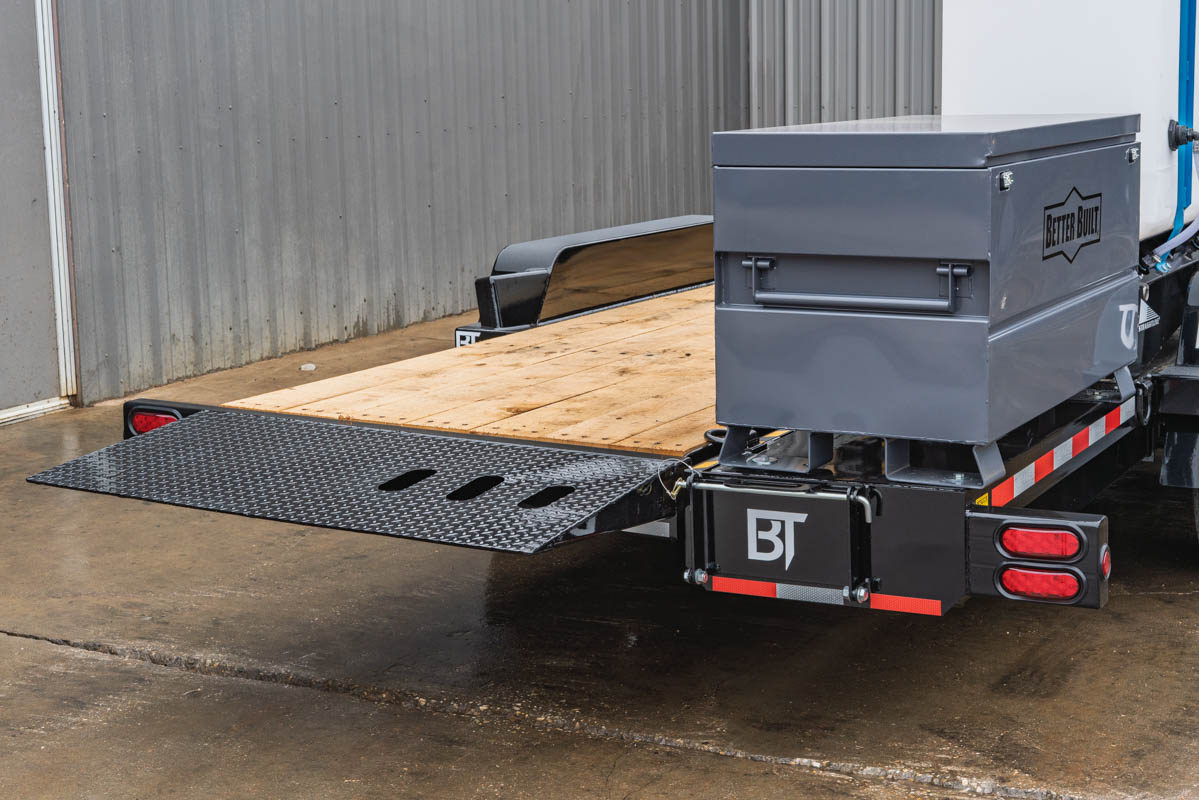

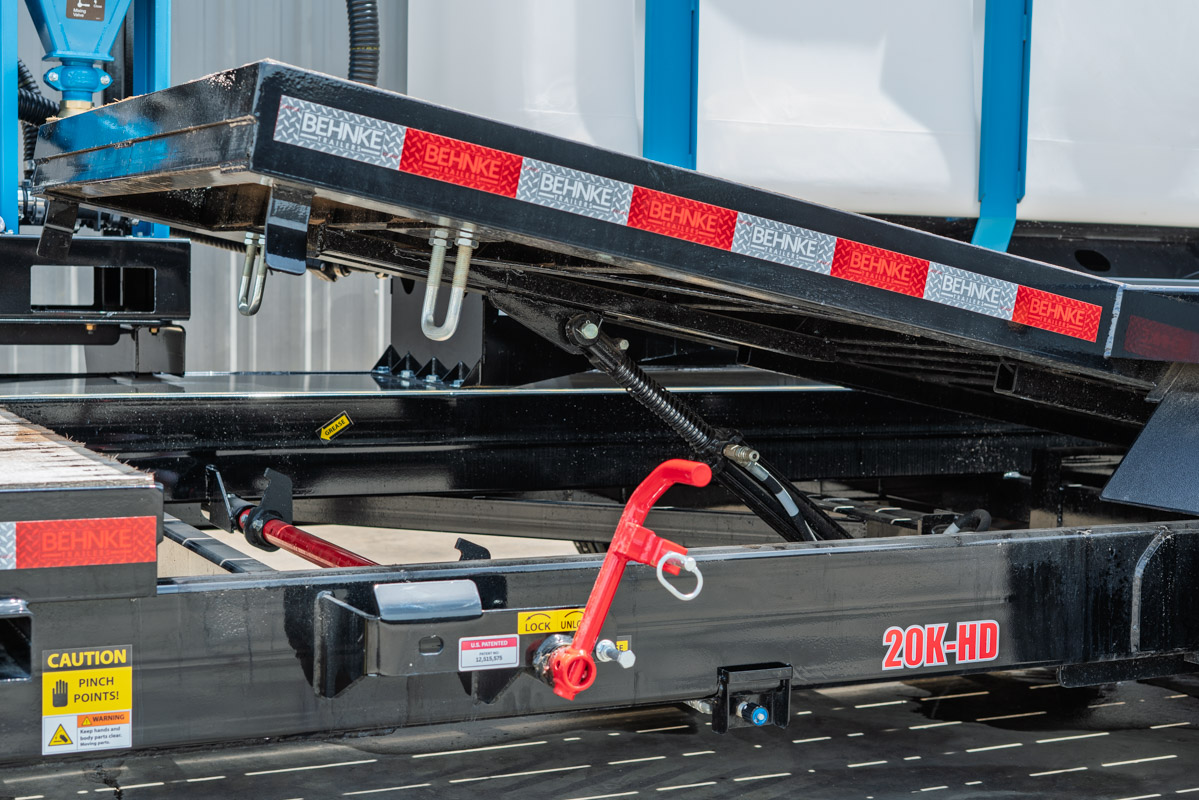

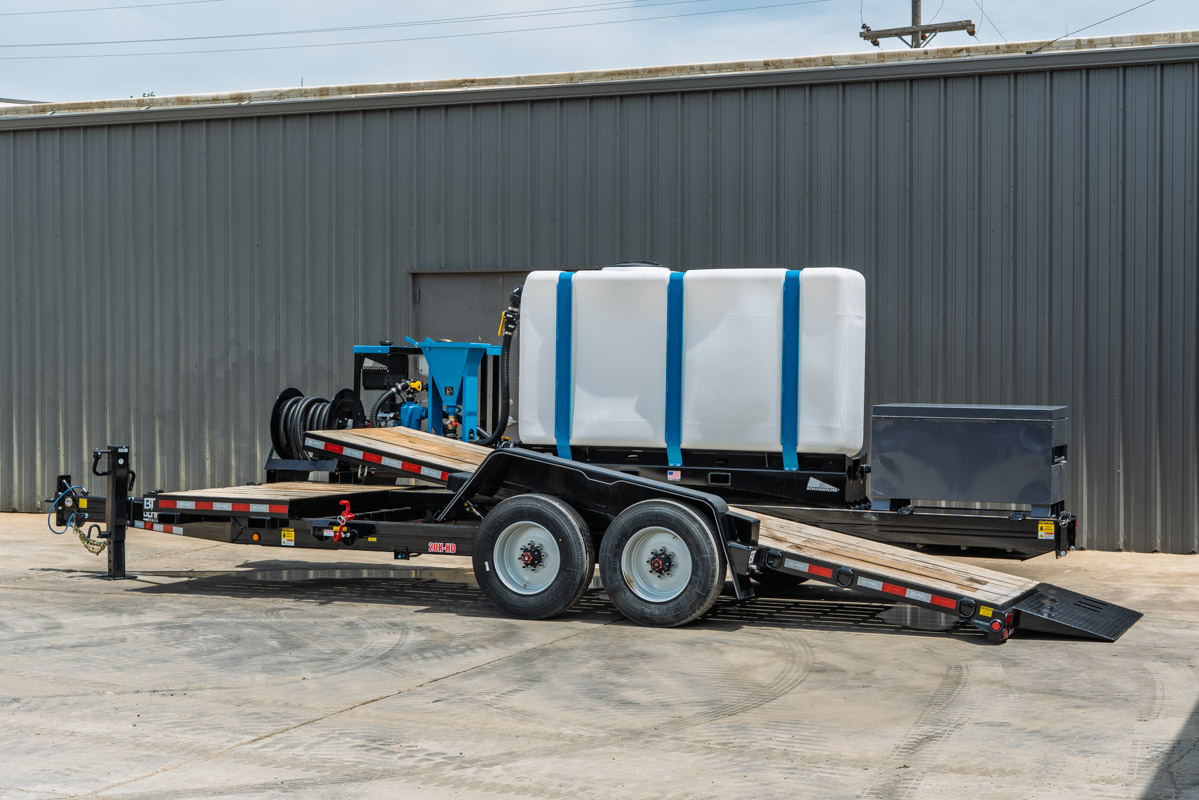

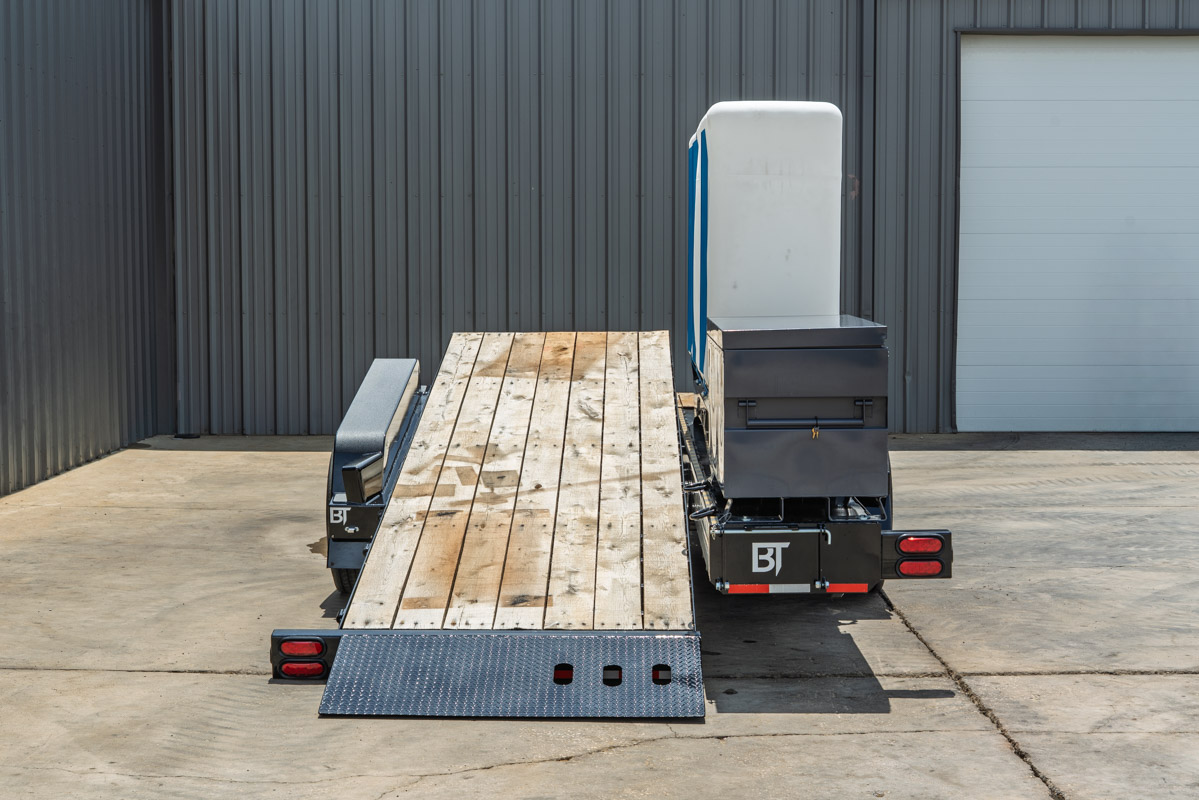

• Length: 22', 18' x 53" tilt section
• Width: Tilt deck width = 53"; Stationary width = 29"; 83" between fenders
• Unloaded Deck Height: 25"

Frame & Construction

• Frame: 5" x 5" x 5/16" Angle upper frame; 2" x 8" Tube lower frame
• Side Rails: Lip on Driver Side of Trailer
• Crossmembers: 3" channels

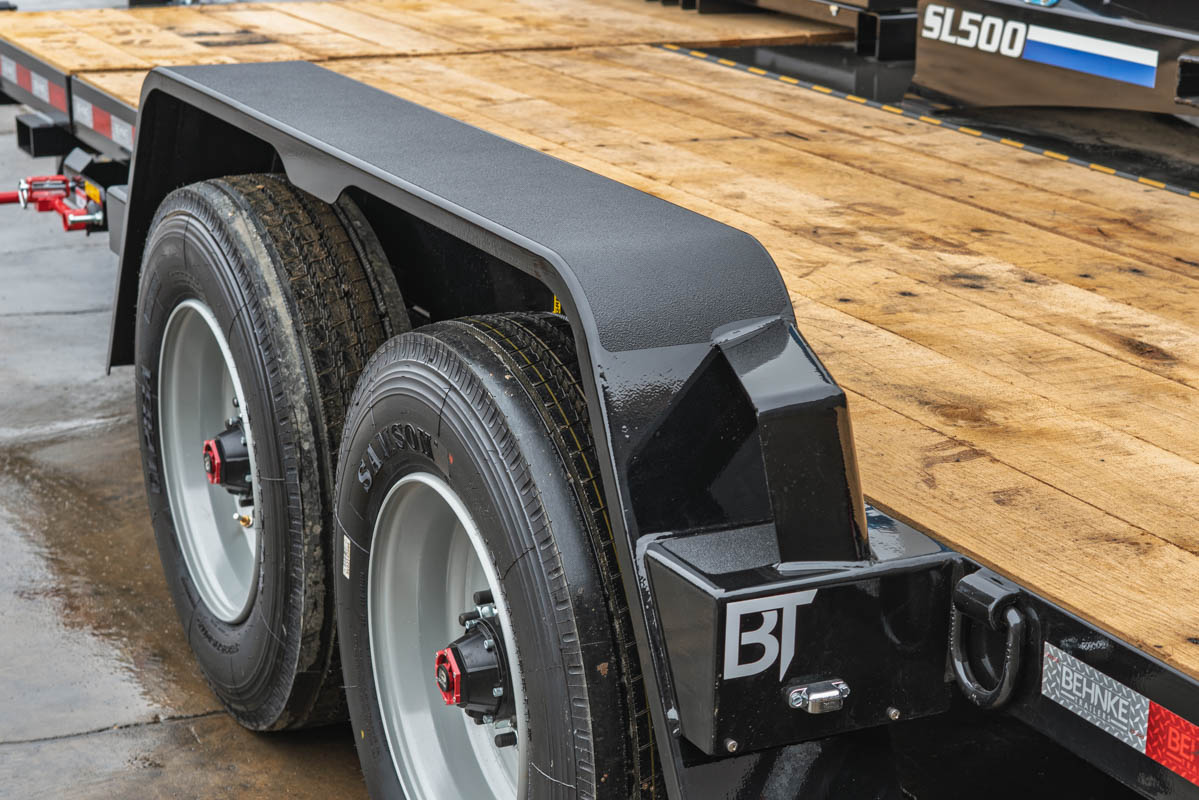

• Fenders: HD Fully Welded 11 gauge

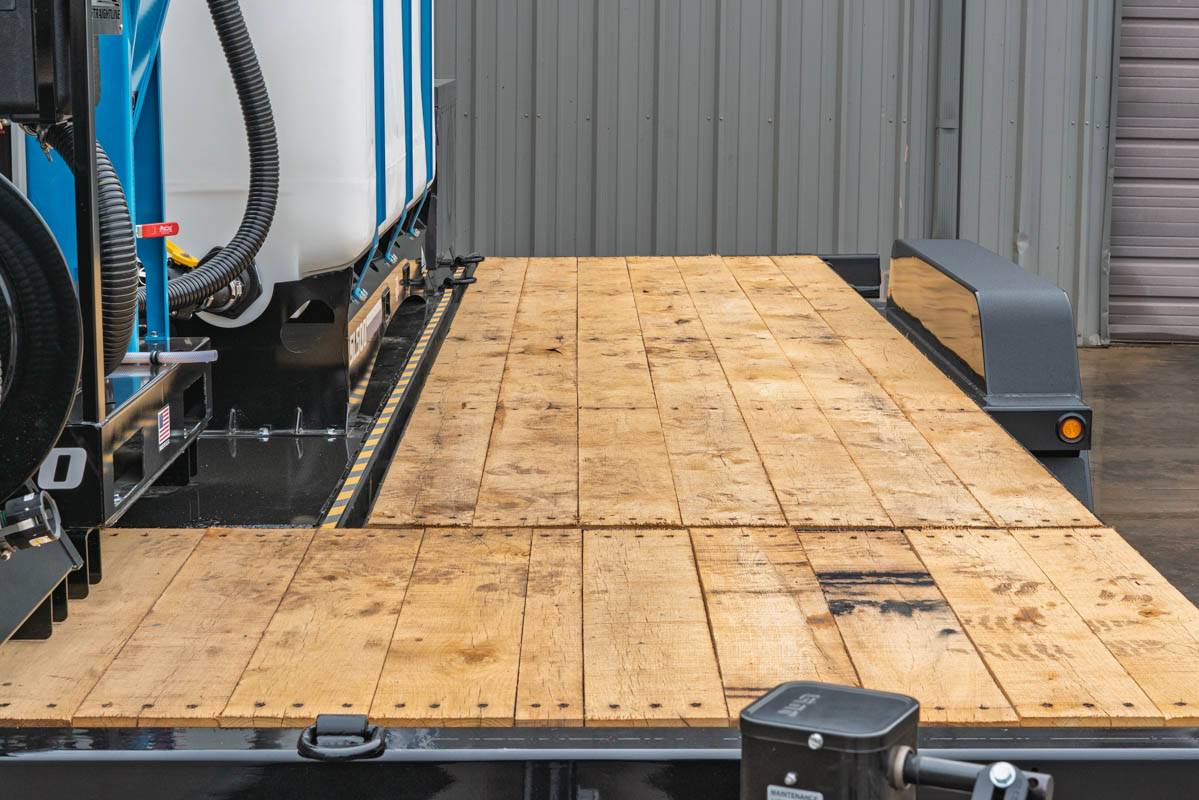

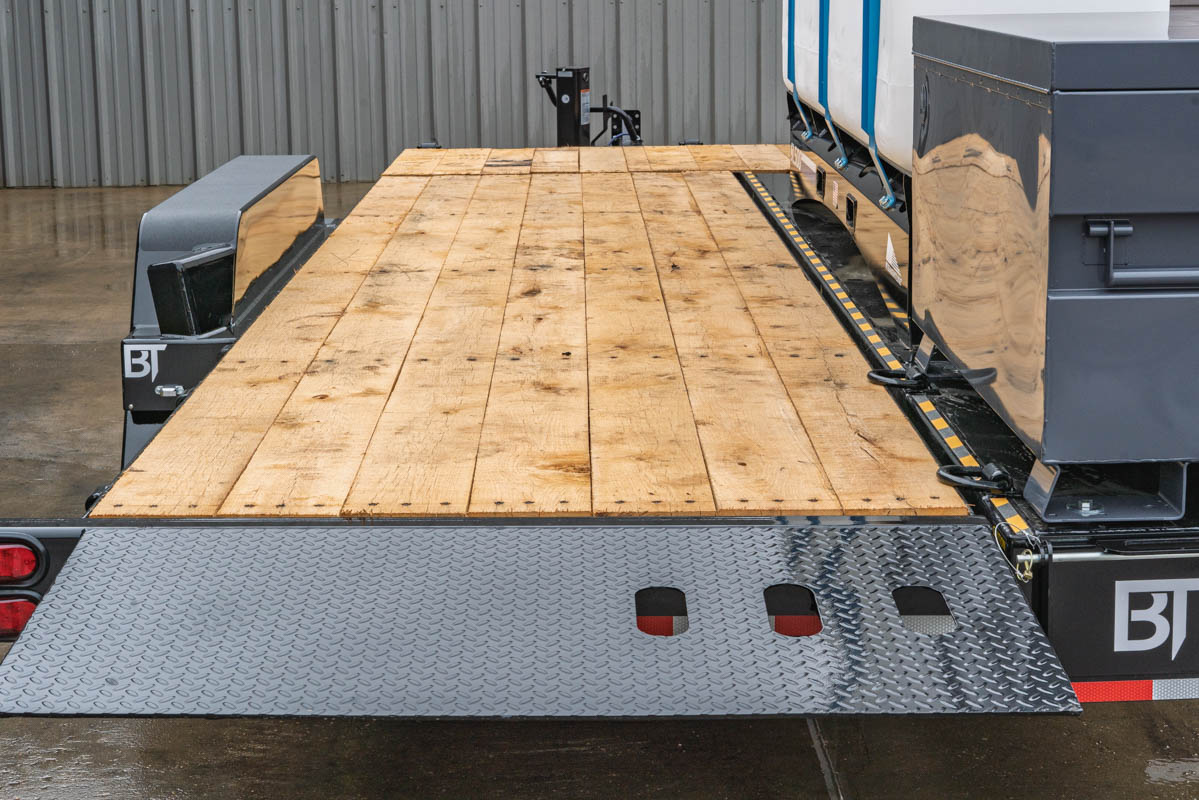

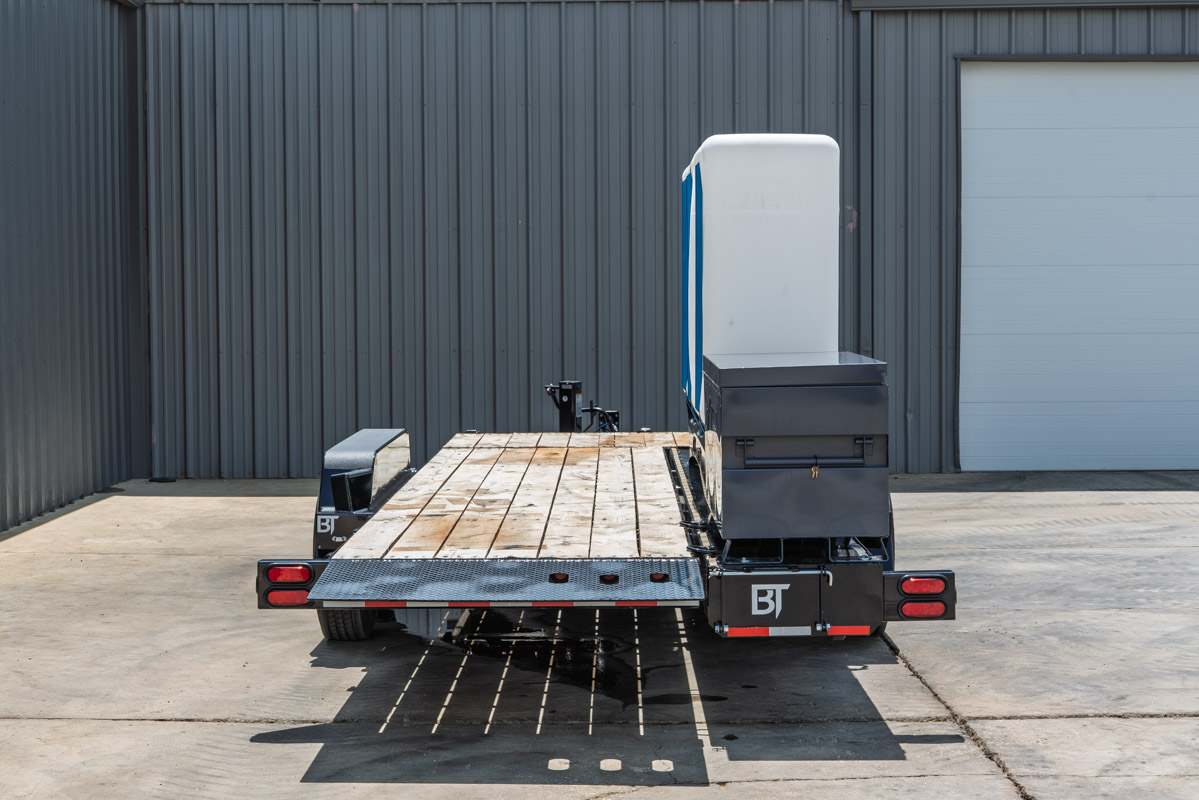

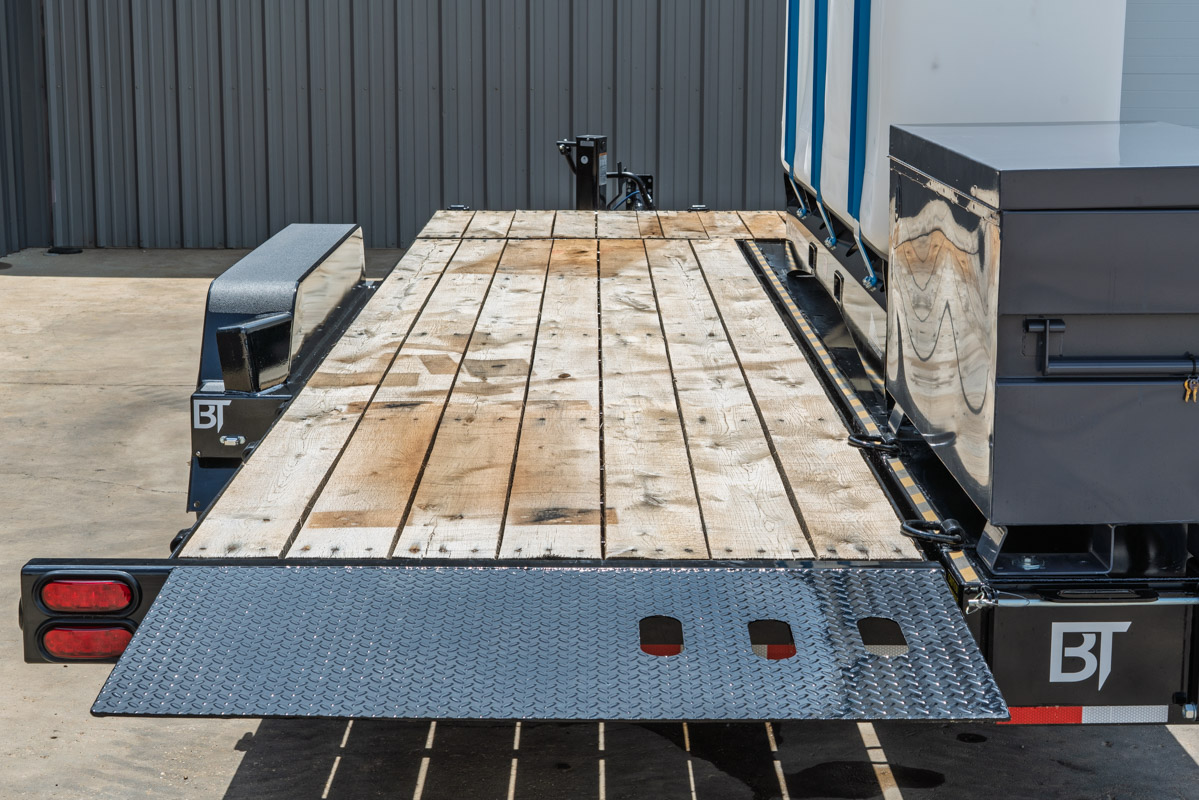

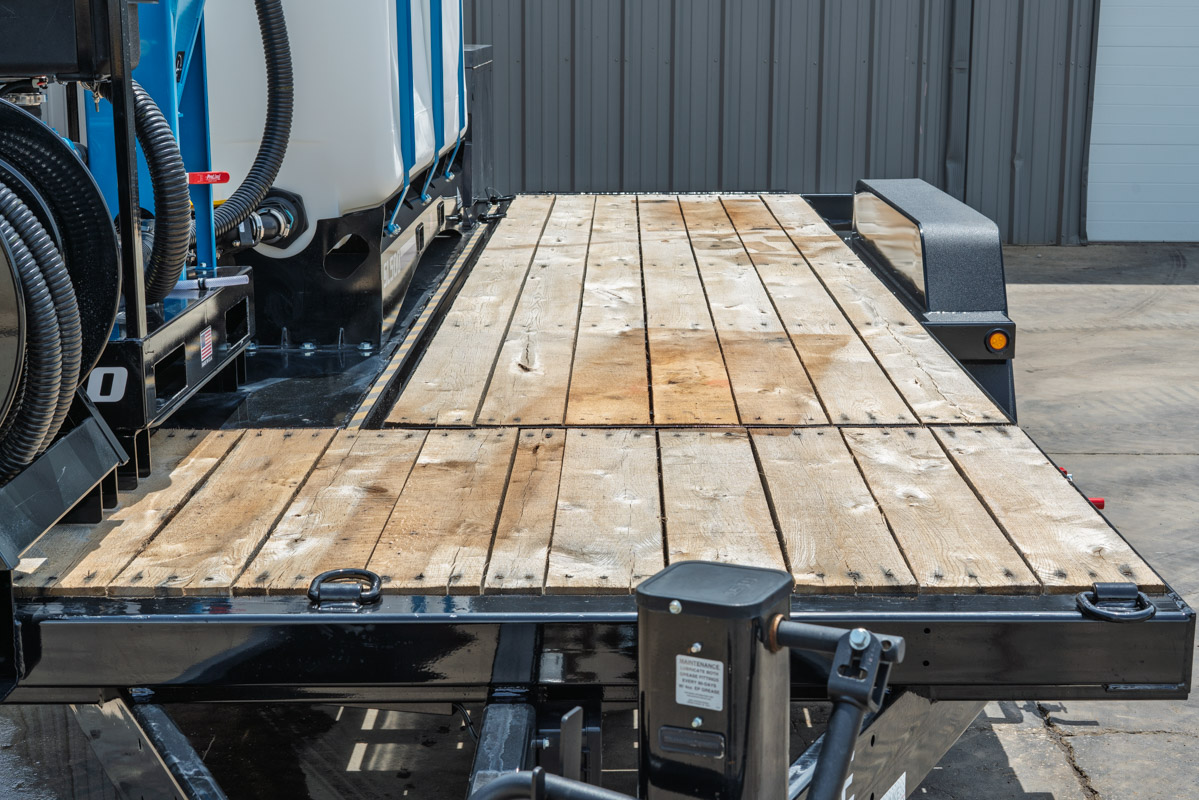

• Decking: 1 11/16" rough oak
• Tie-Downs: Stake pockets and (4) D-rings
• Storage: Large chain tray in tongue (V-toolbox optional)

Axles, Suspension & Braking

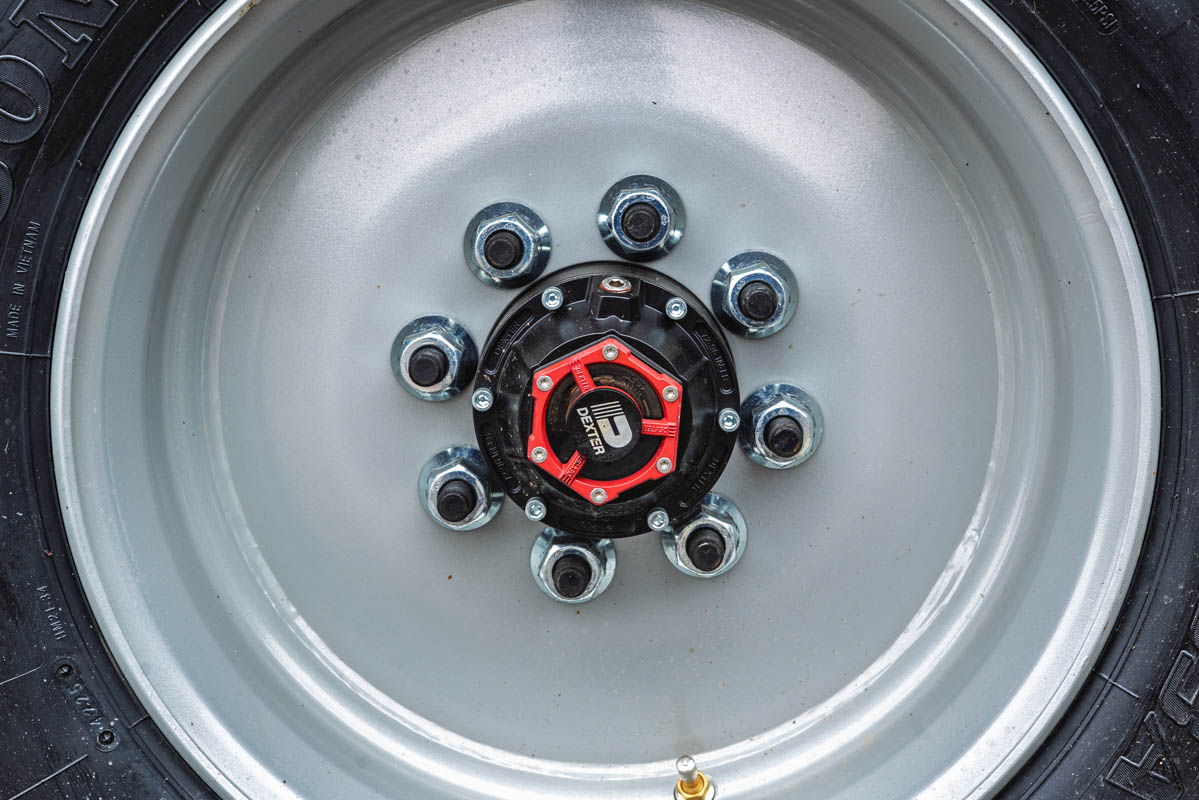

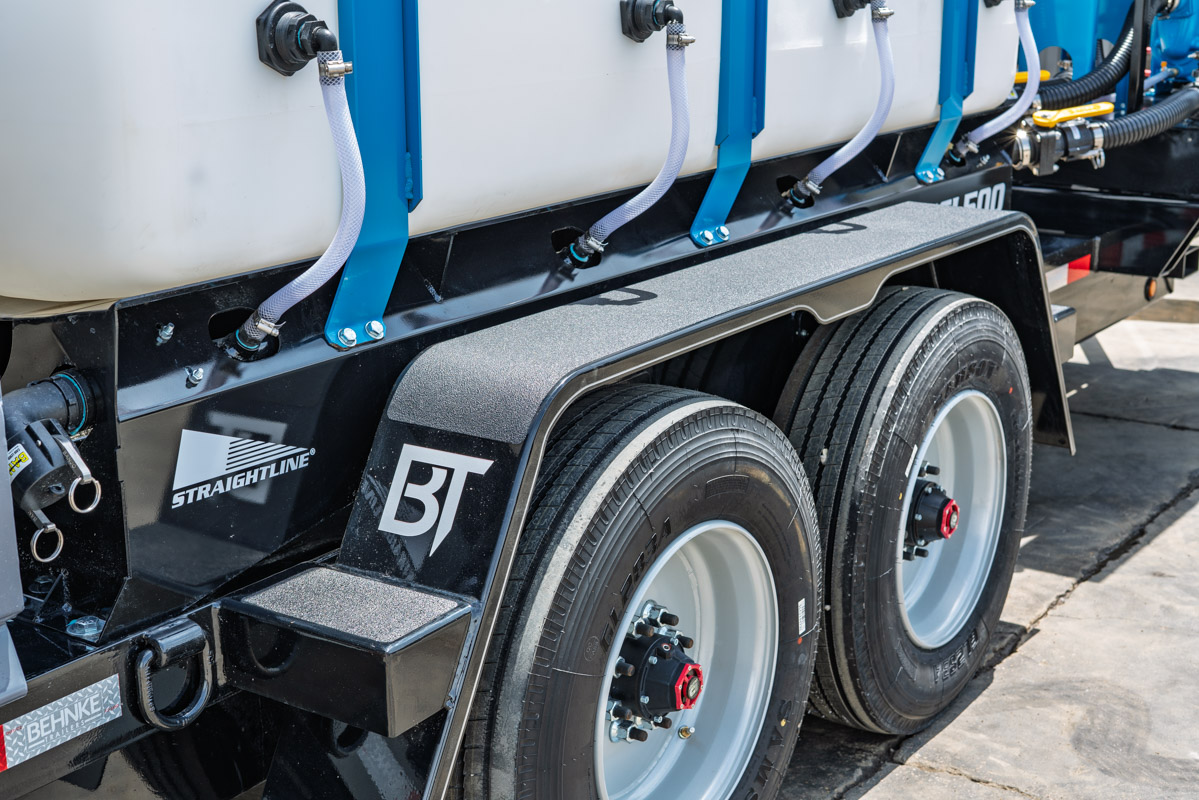

• Axles: 10,000 Torflex Dexter Axles
• Suspension: Torflex

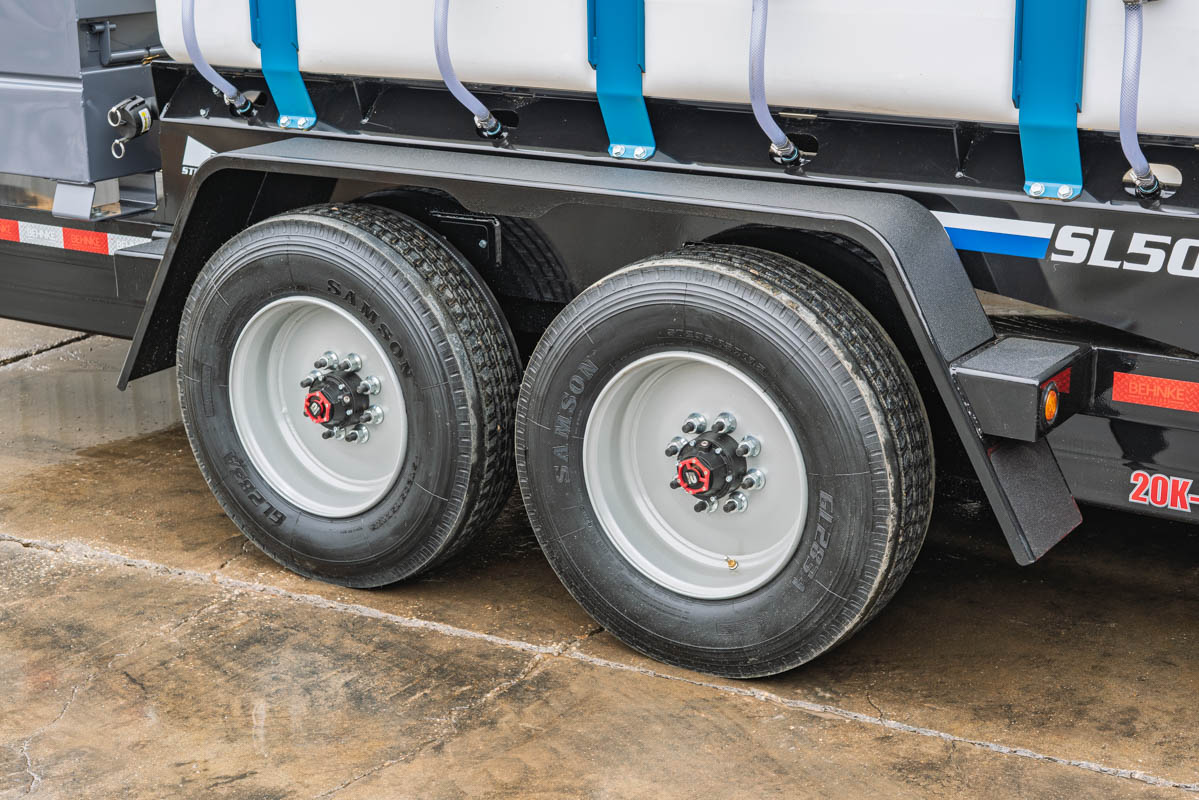

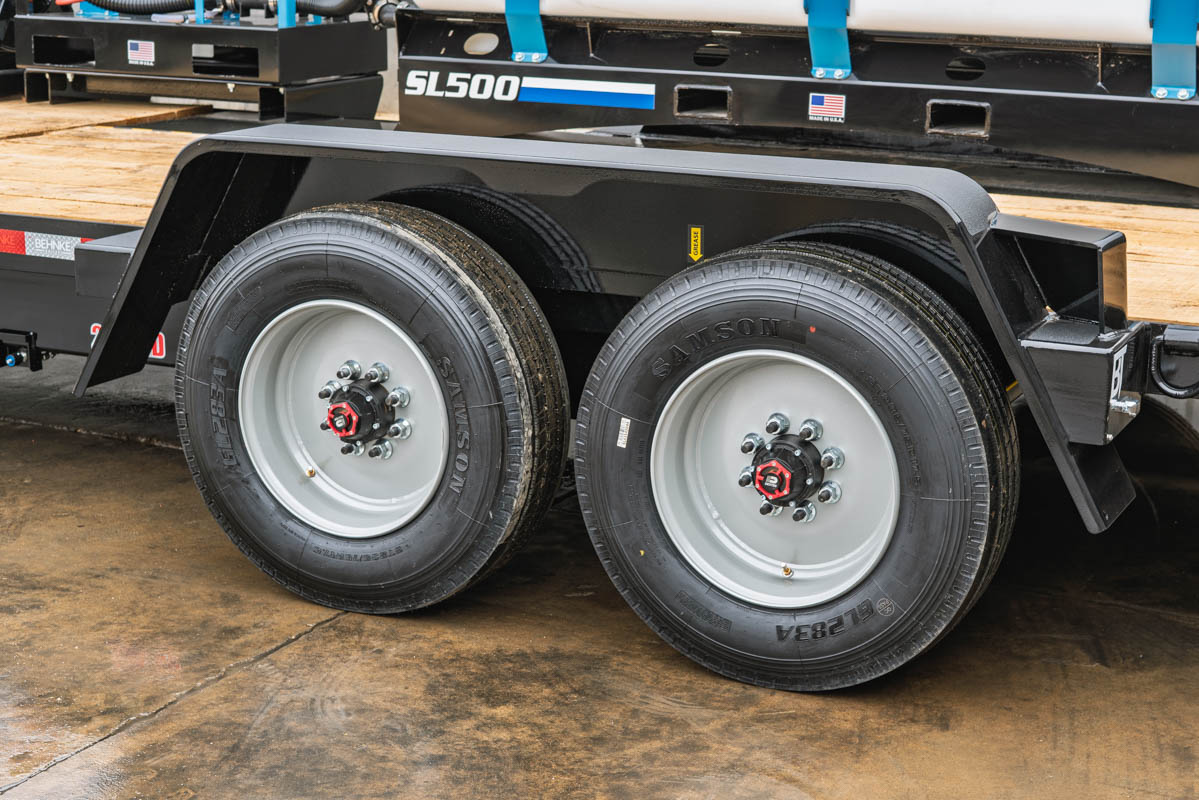

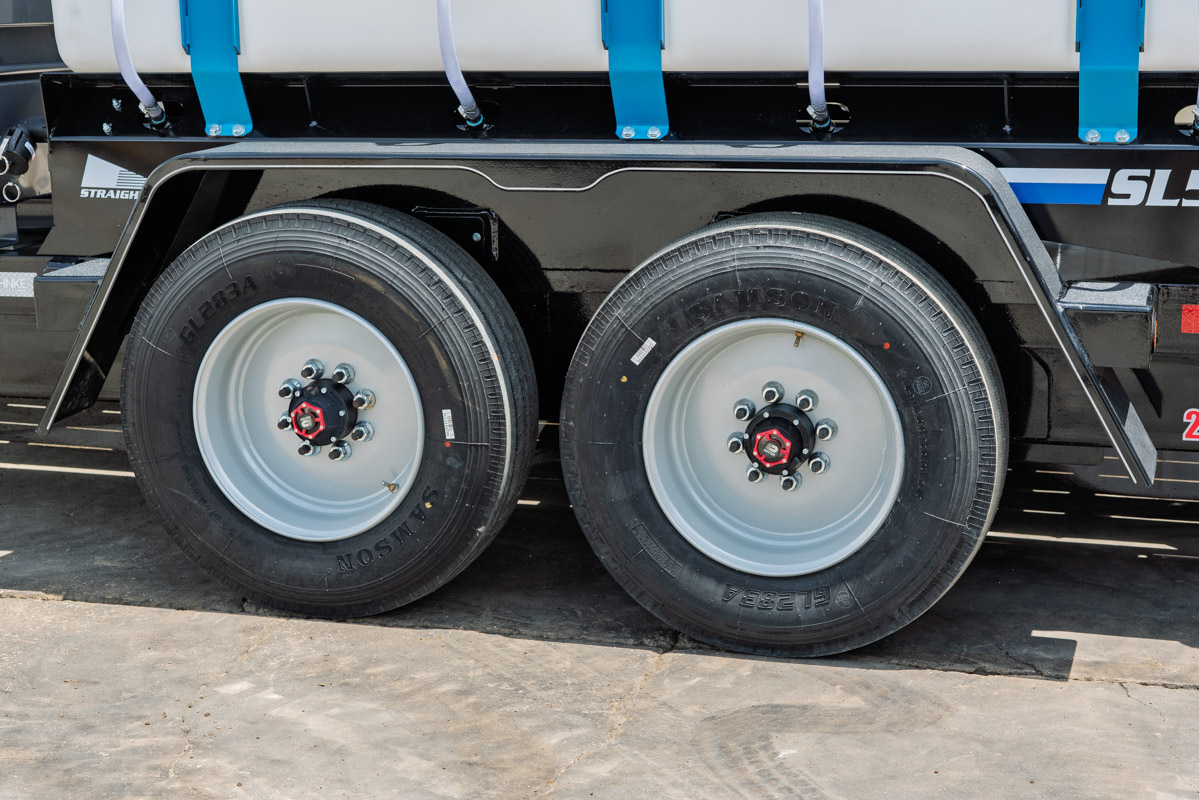

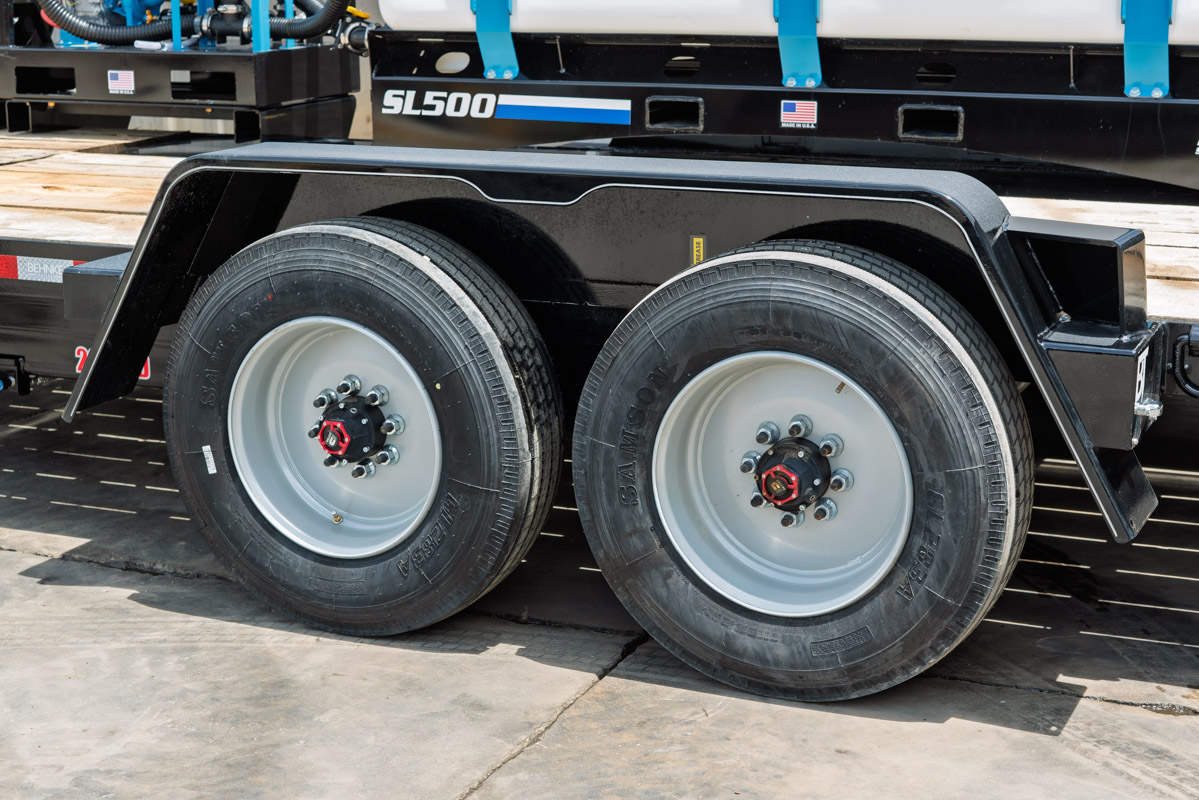

• Tire and Wheel: 235/75R-17.5 16 ply (6,005 lb. load rating) super single

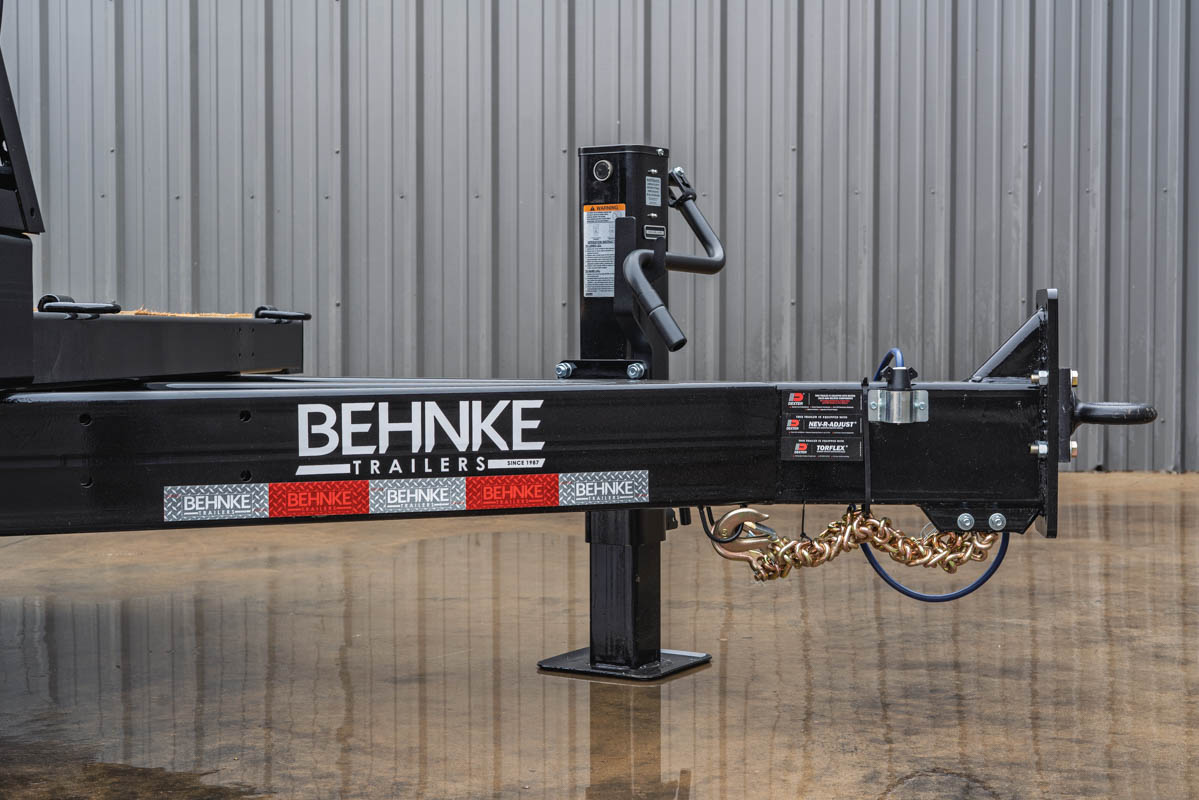

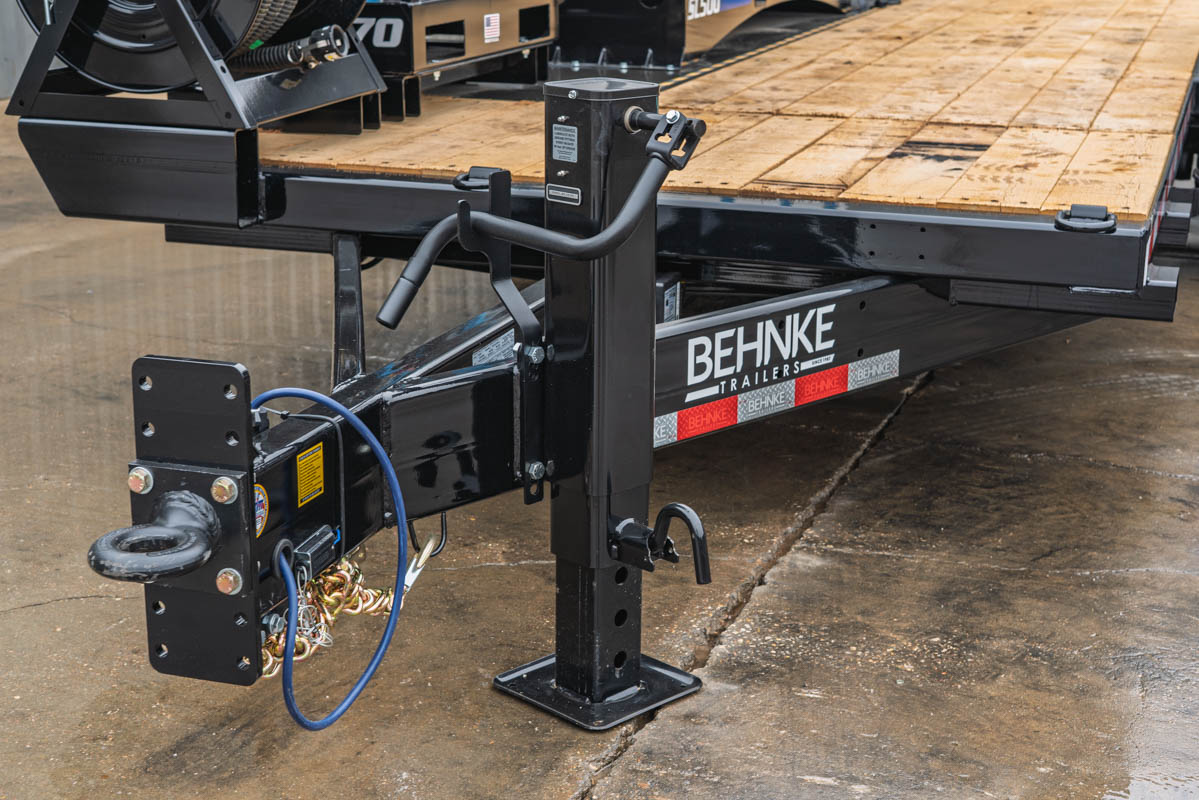

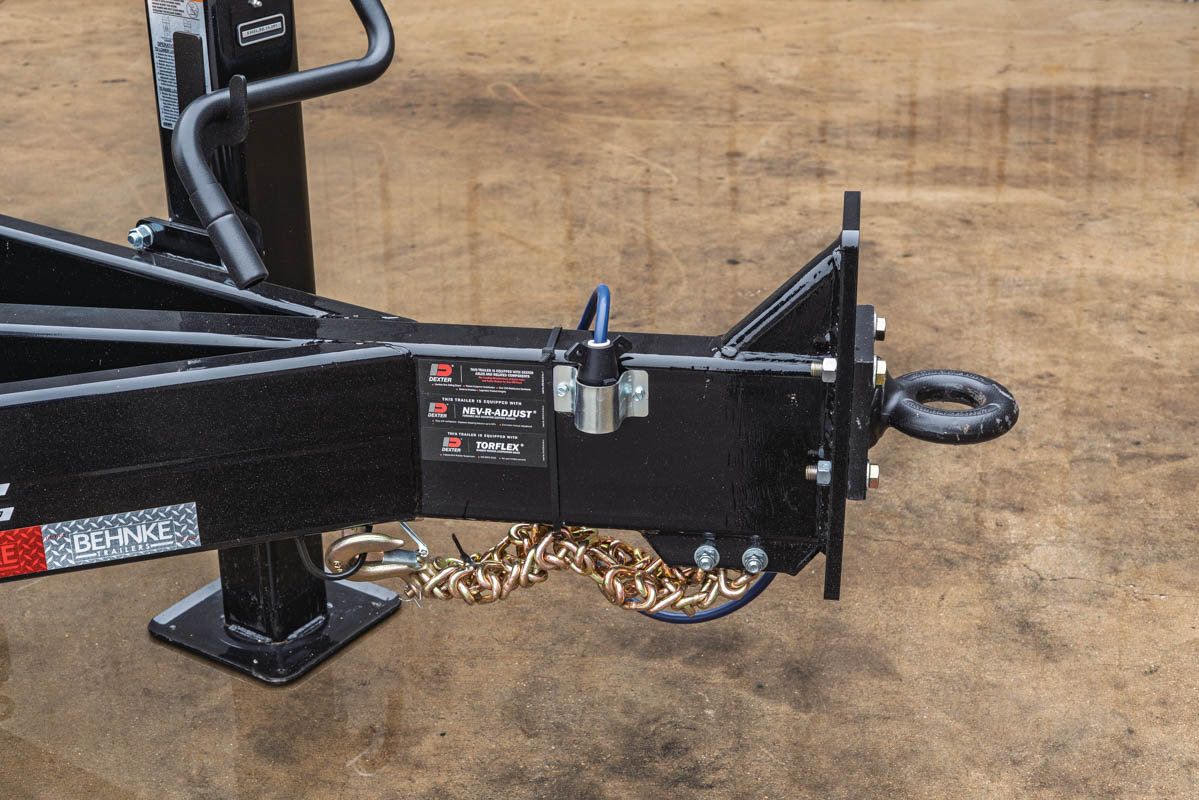

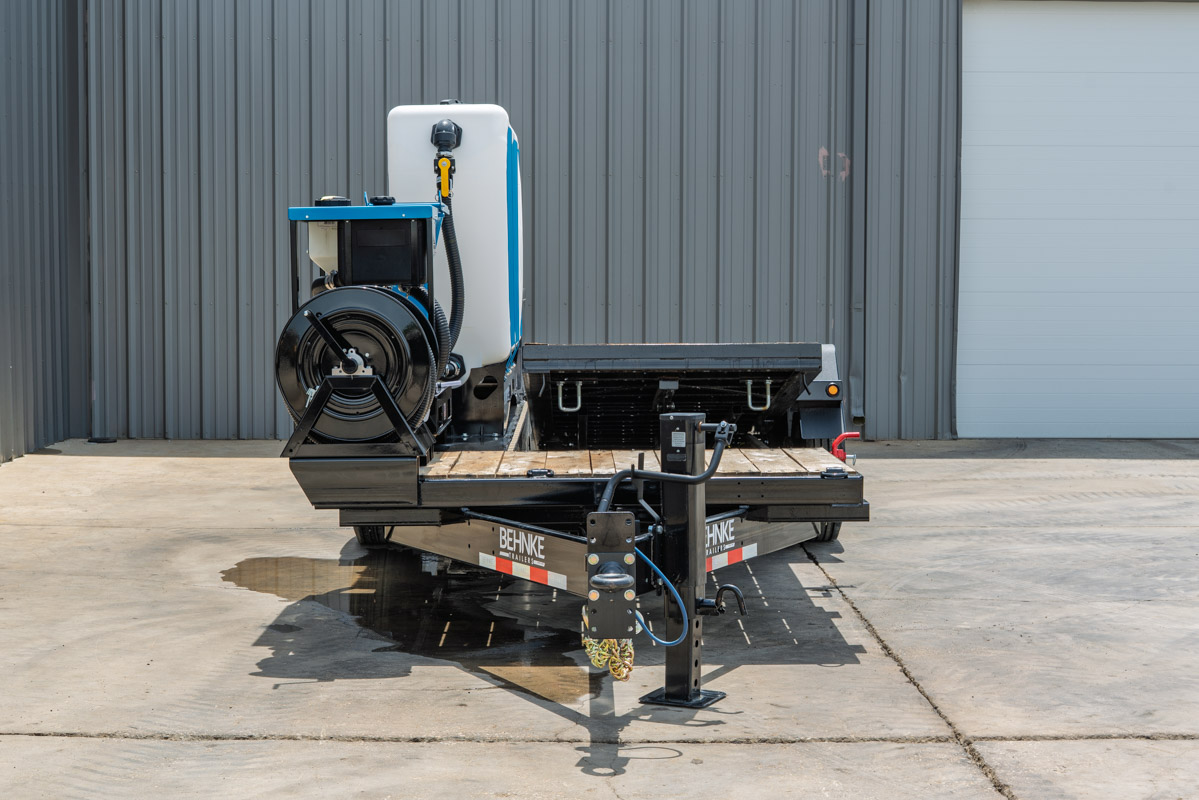

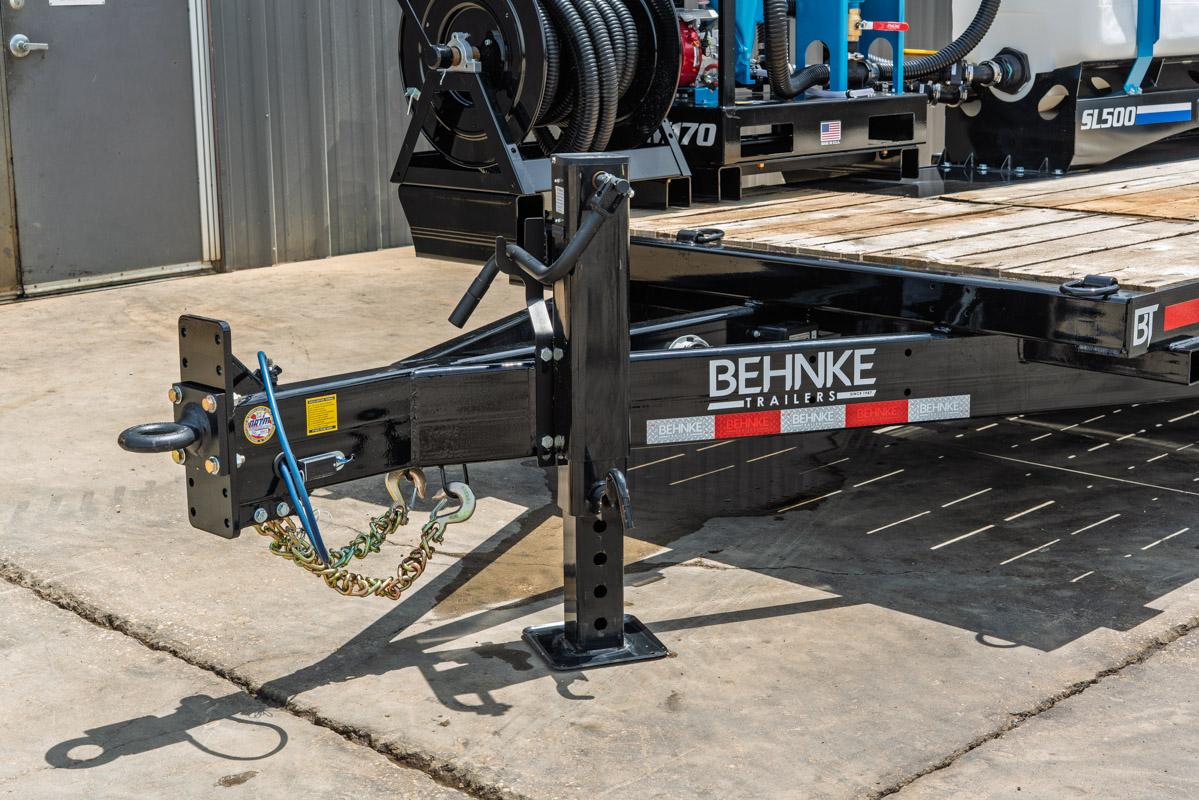

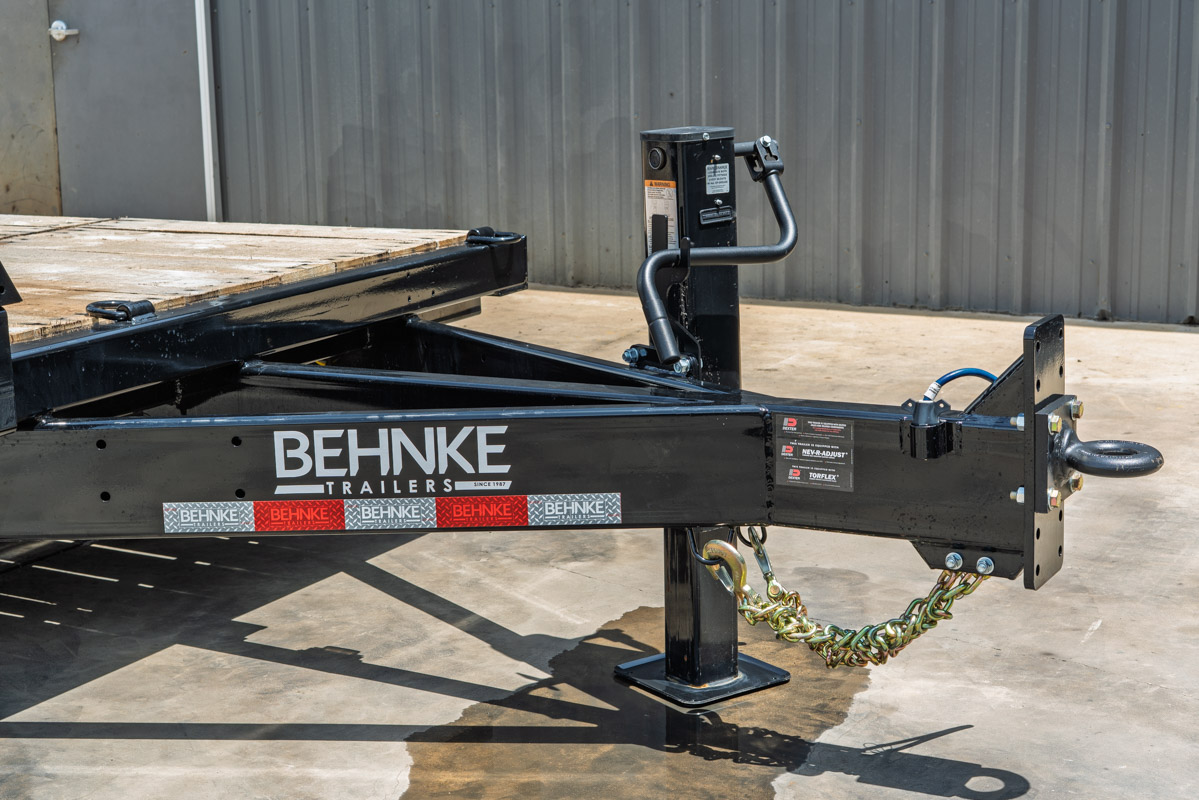

• Hitch: 2 1/2" pintle eye
• Jack: Single 12K dropleg
• Safety Chains: (2) 3/8" Gr. 70

Finish, Lighting & Electrical

• Finish and Paint: Bead blasted, acid washed, zinc rich primed, powder coated
• Lights: LED flush mount
• Elect. Plug: RV plug

Built specifically for HDD crews who need everything in one pull. Reach out to our team for pricing and availability on this 2026 Behnke TBCT2220ET-BT-R split tilt trailer.
