GVWR: 24,000 lbs.
Weight: 6,640 lbs.

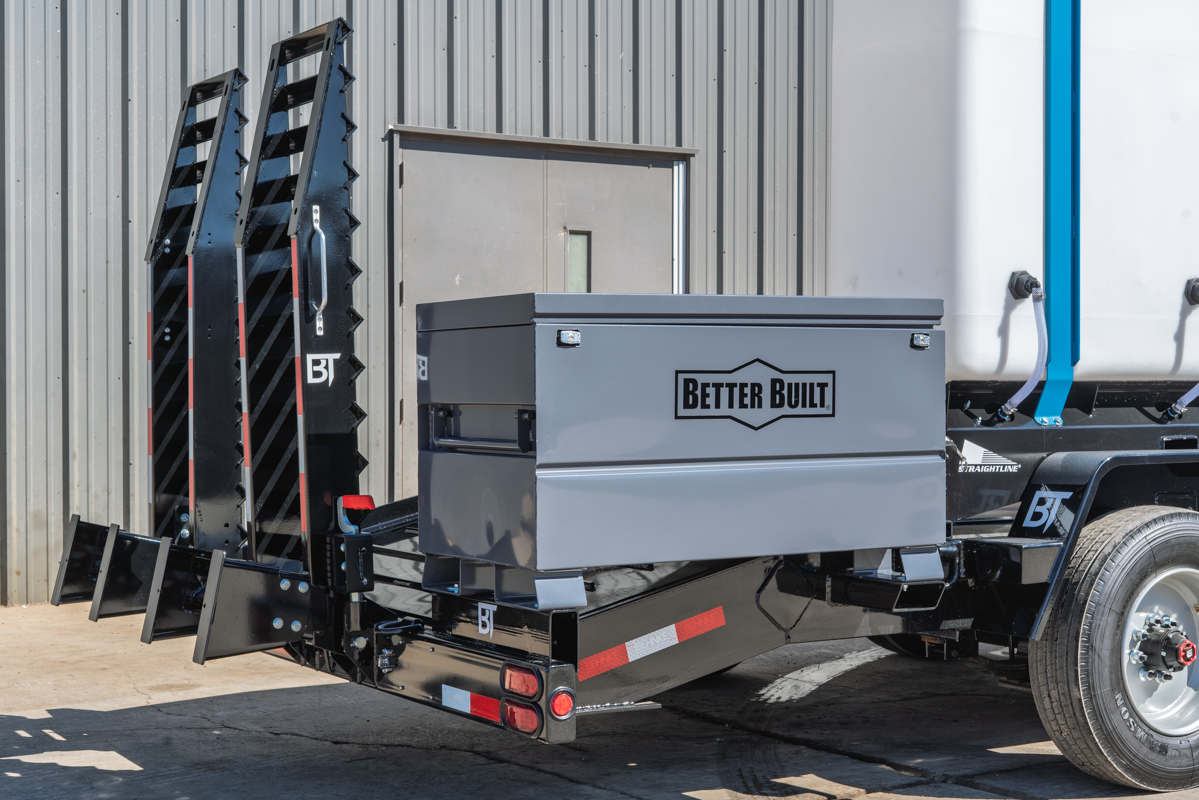

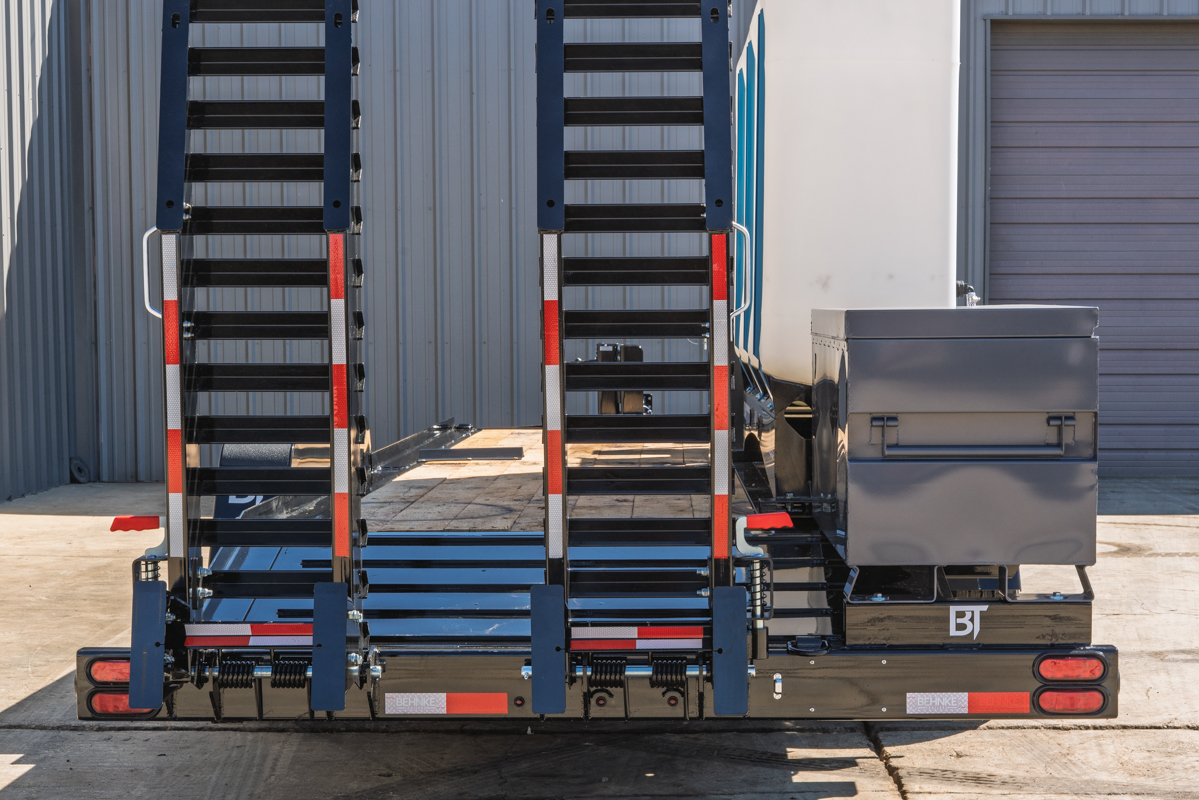

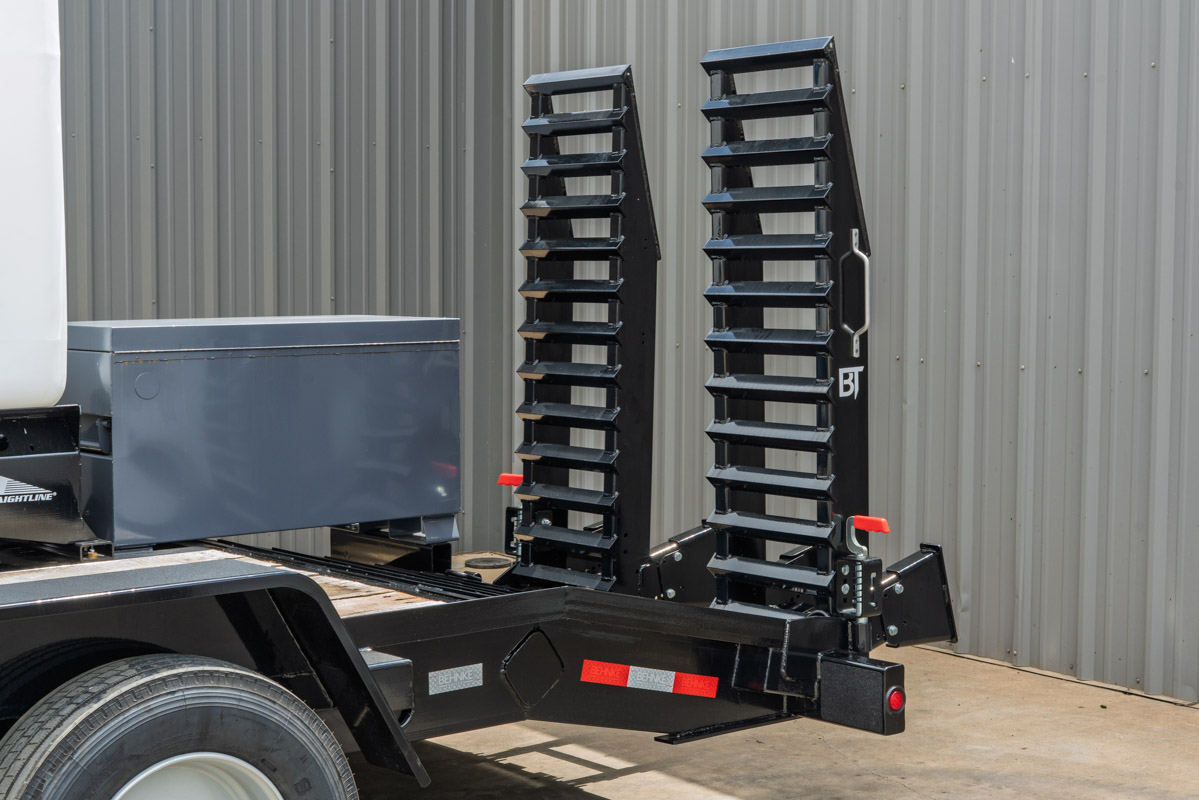

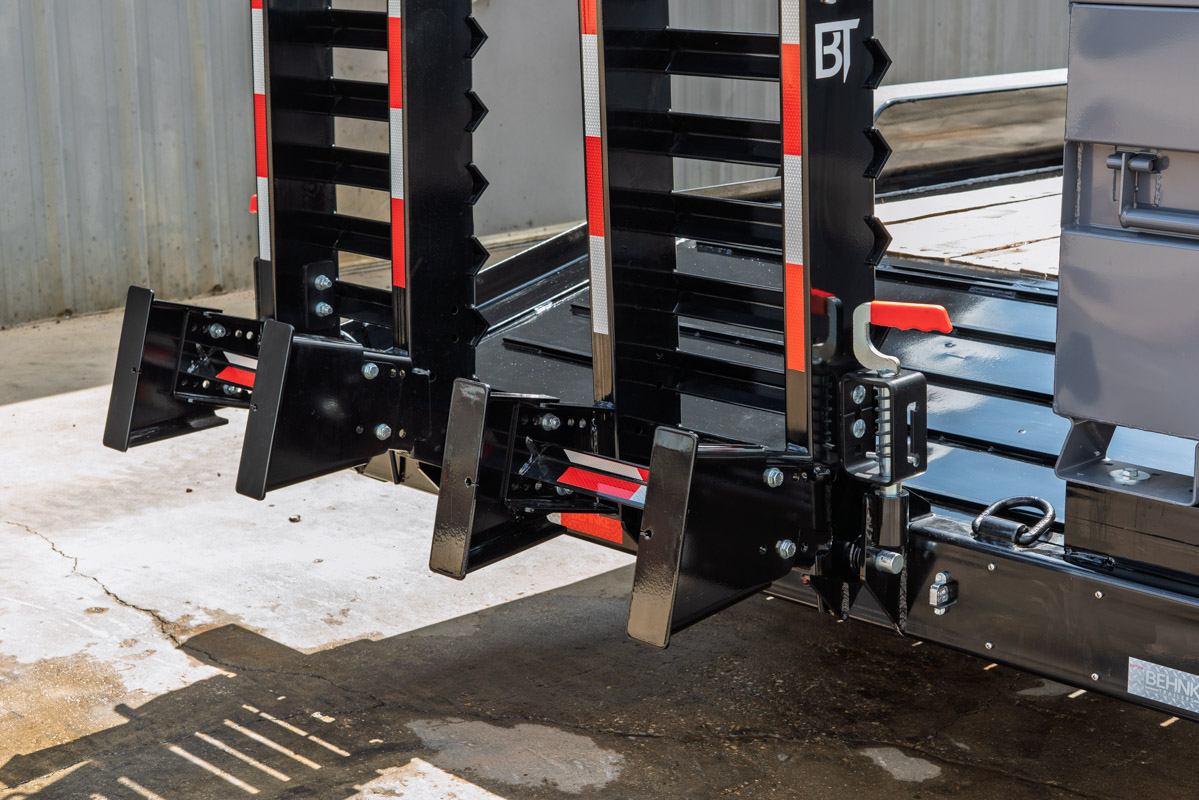

Length: Extended tongue 92", 20' bed w/3' steel tail w/traction cleats
Width: 83" between fenders
Frame: Continuous 10" x 20# channel for whole frame
Unloaded Deck Height: 26"
Side Rails: Lip on Driver Side of Trailer
Crossmembers: 3" channels

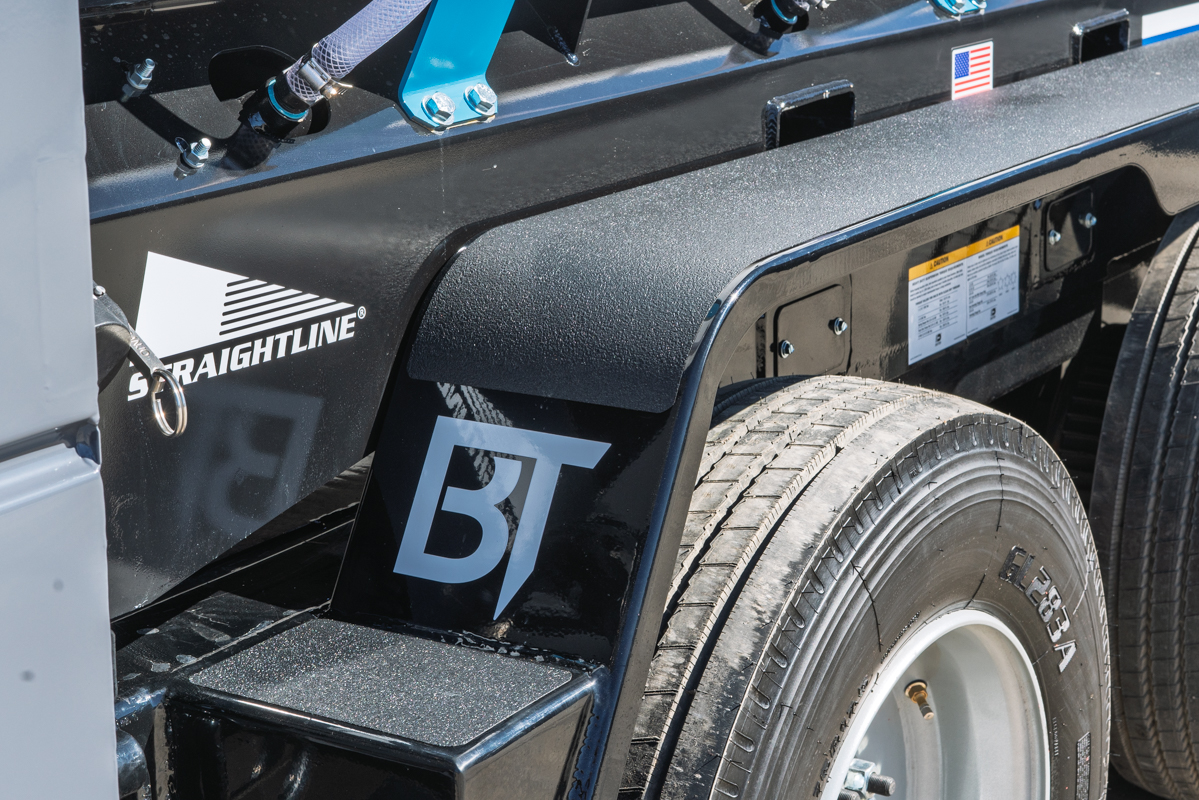

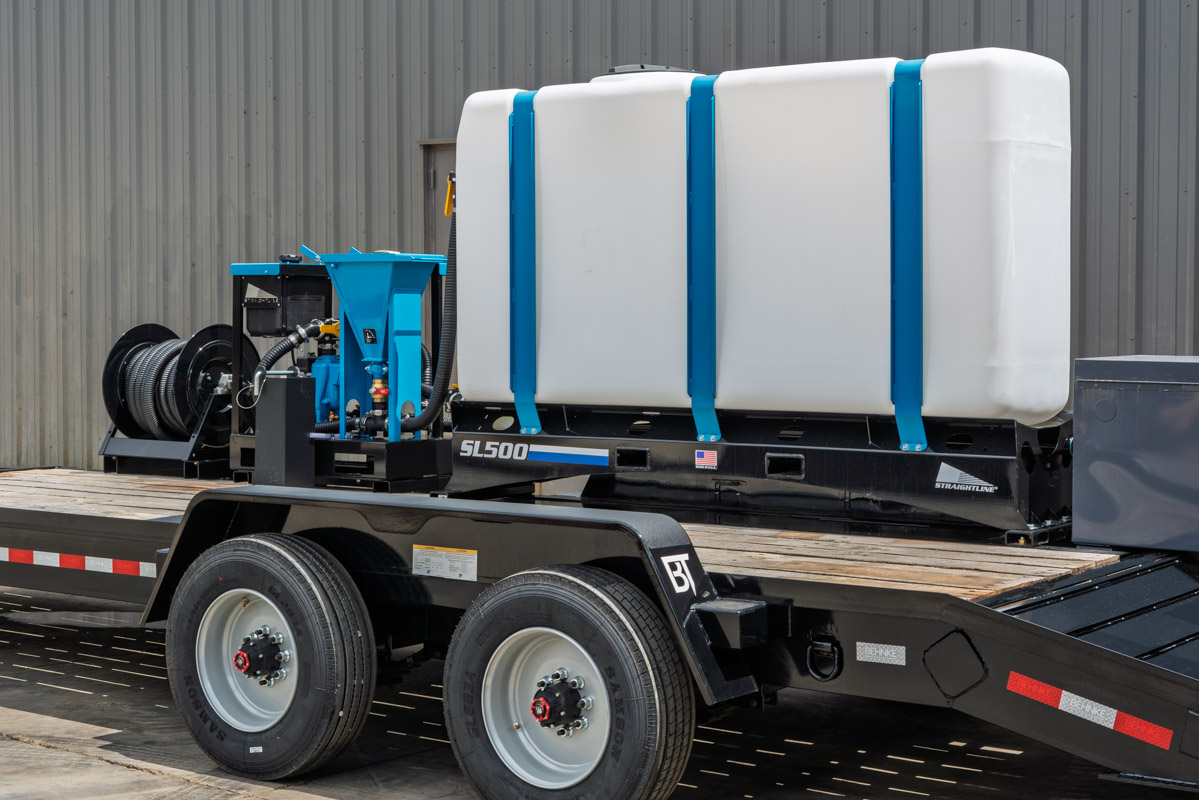

Fenders: HD Fully Welded 11 gauge

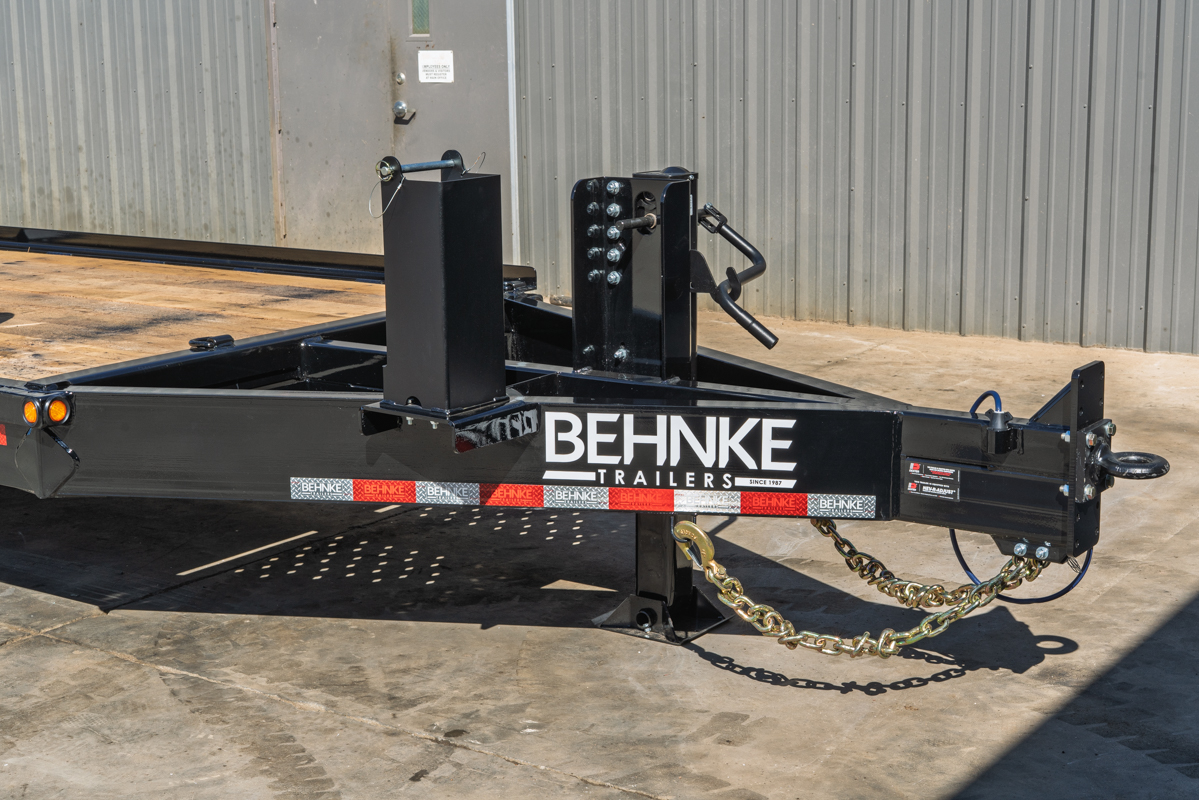

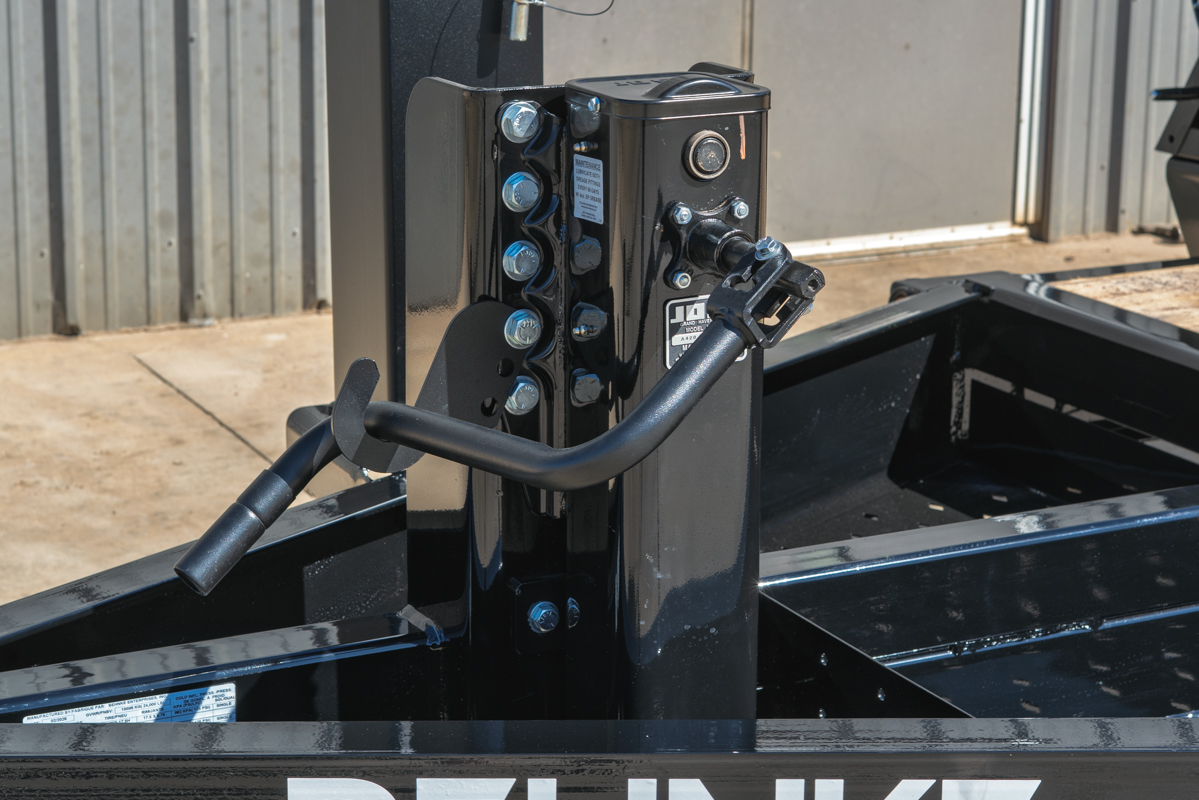

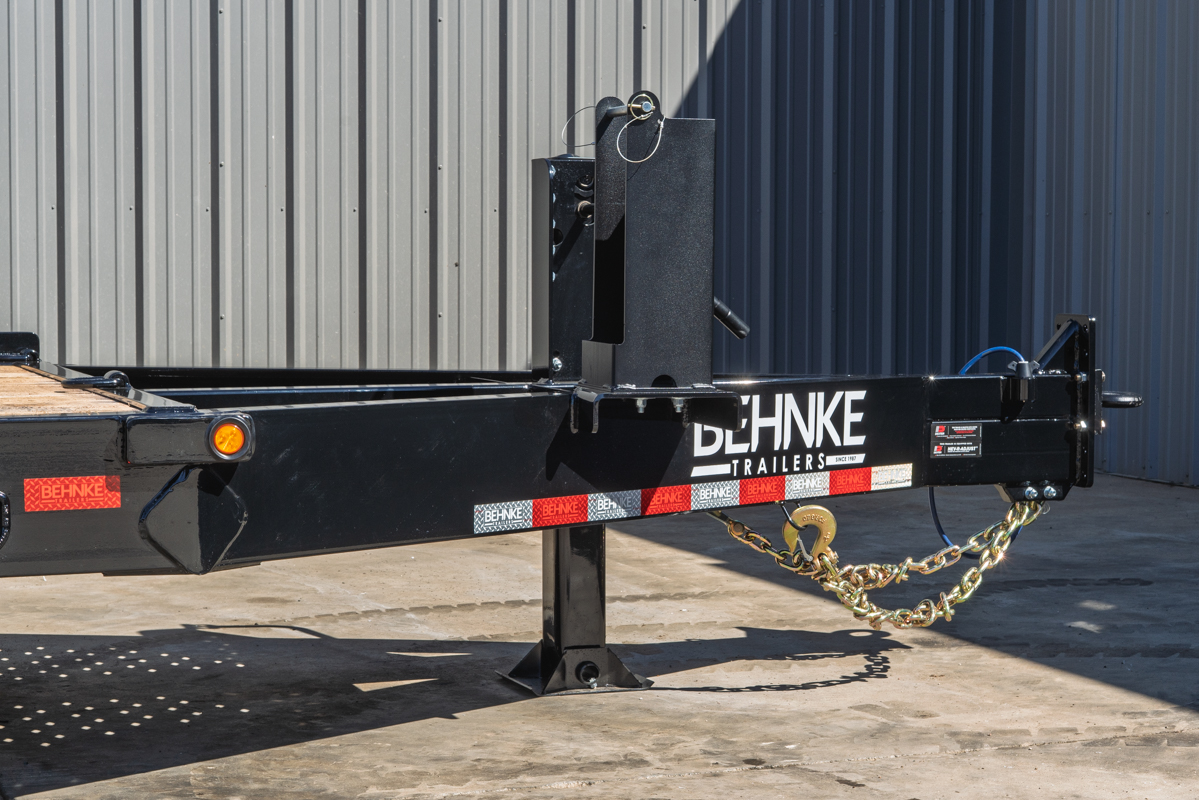

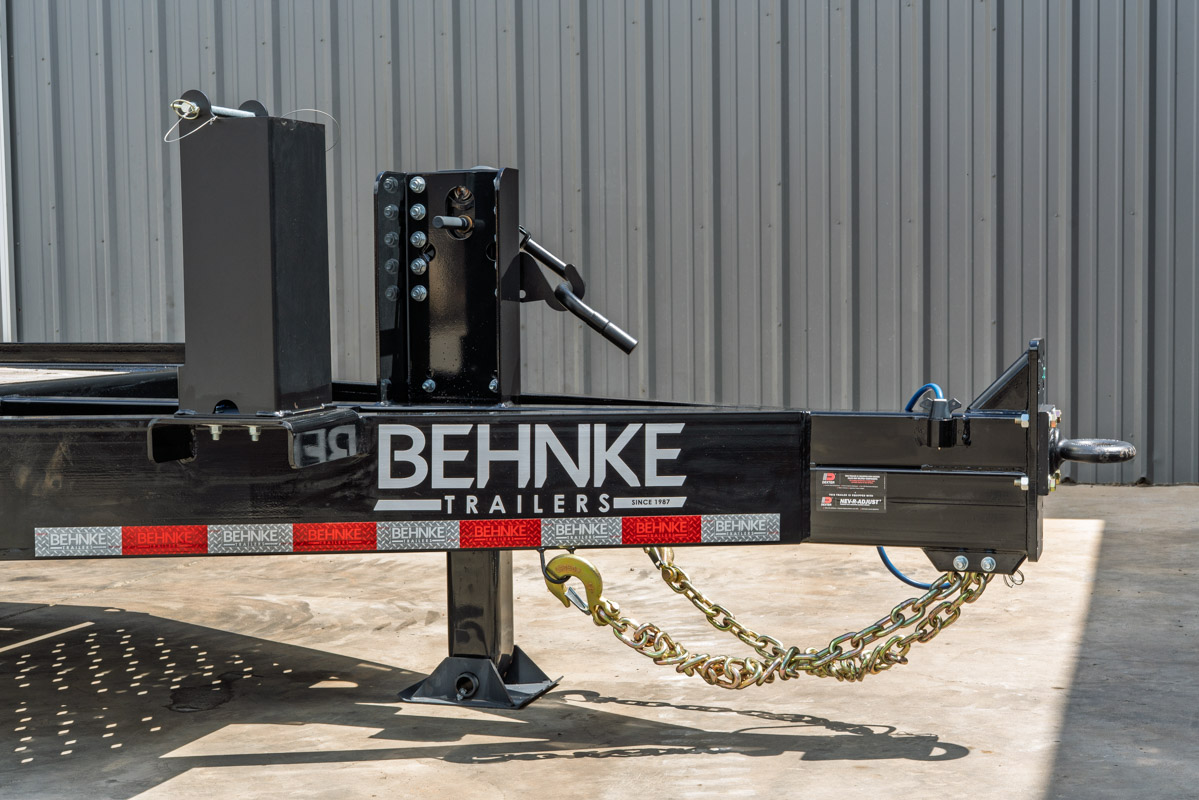

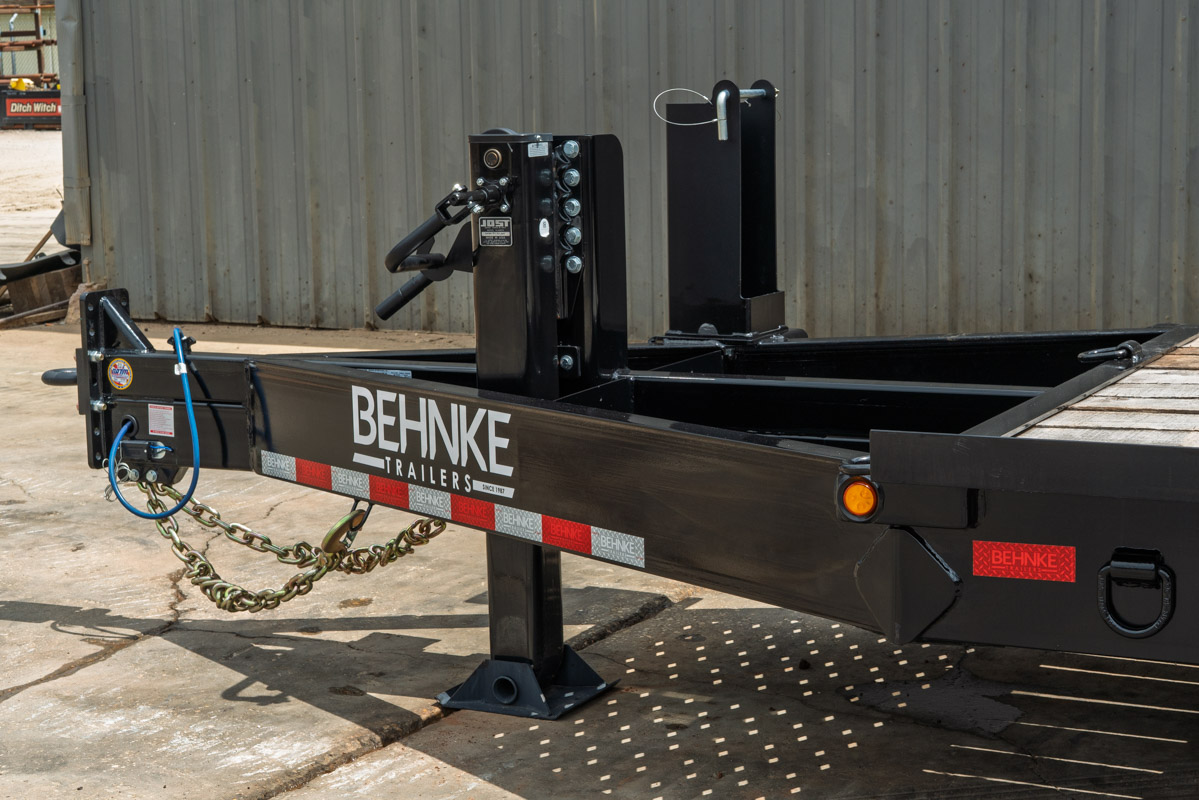

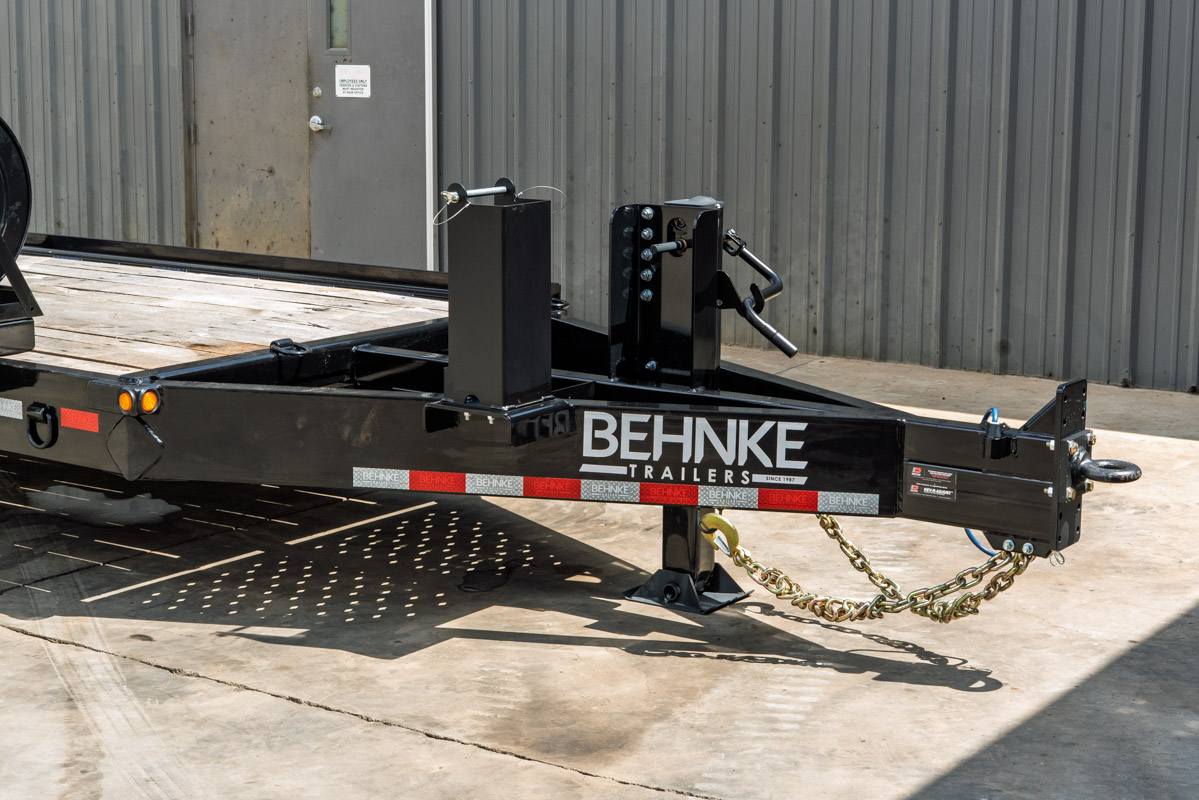

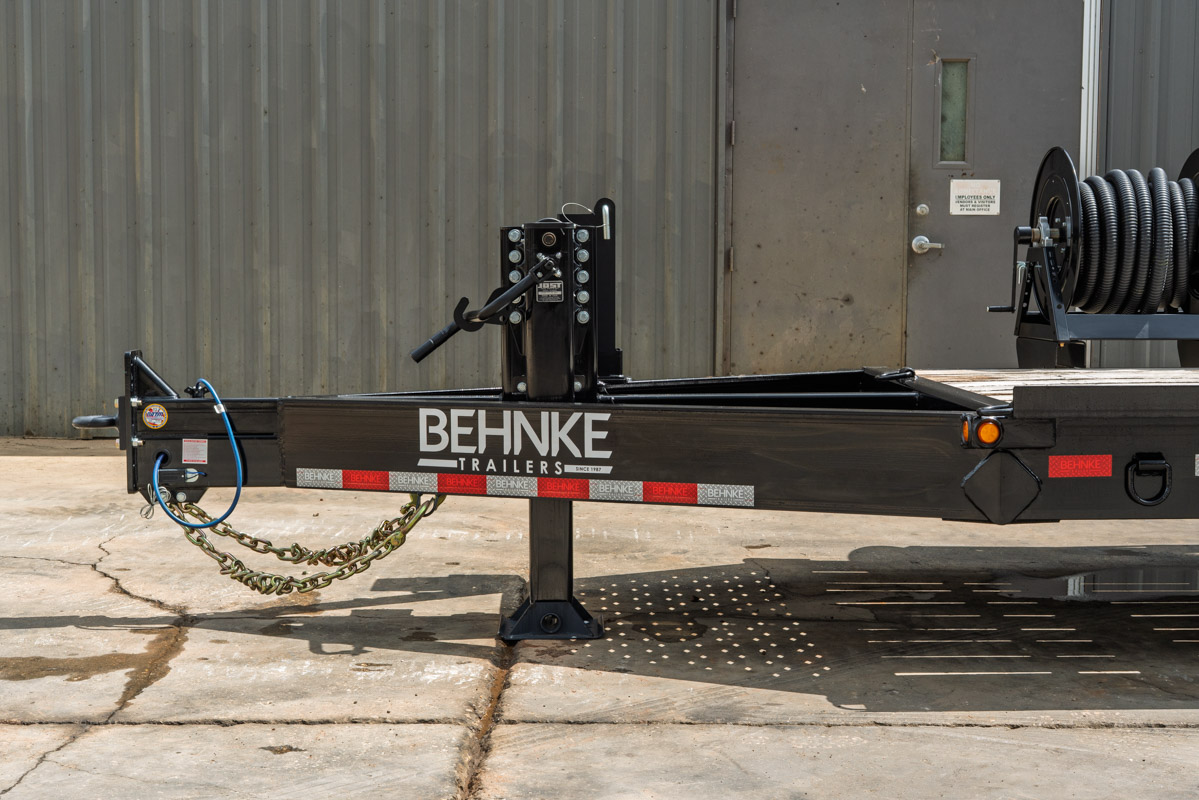

Jack: Single 12K dropleg

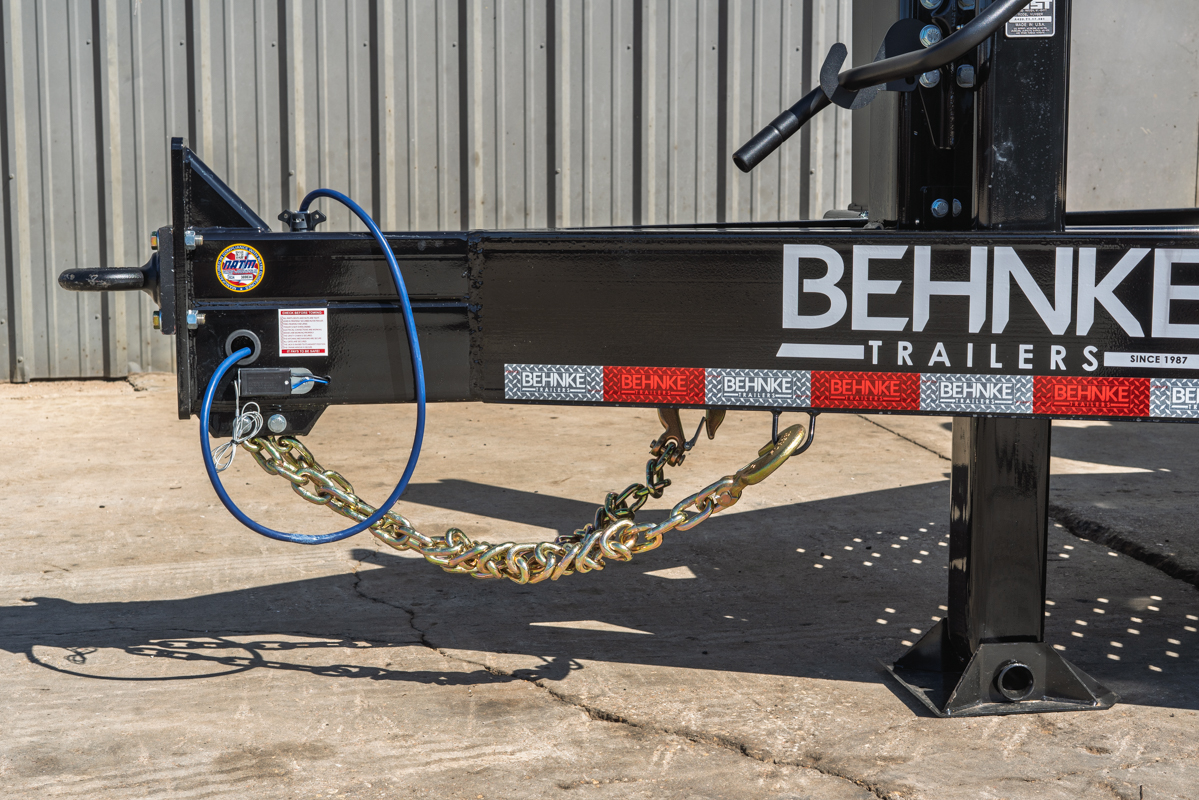

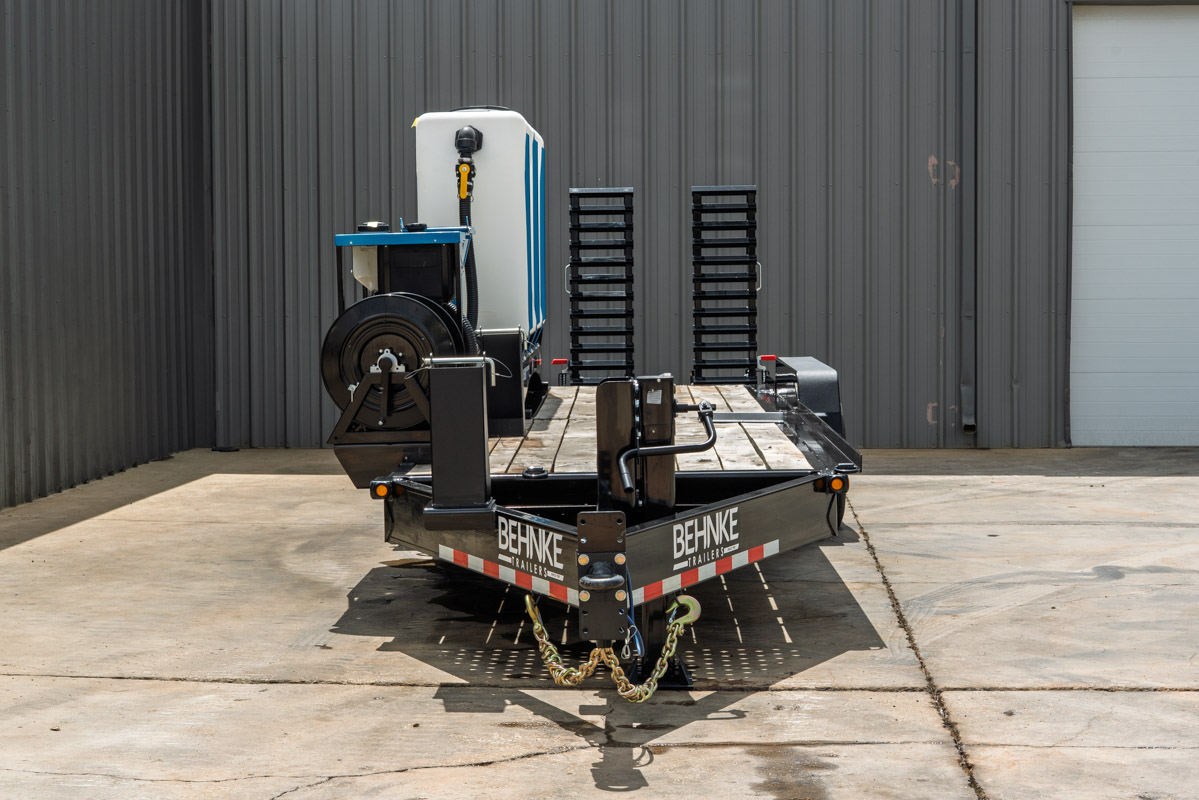

Hitch: 2 1/2" pintle eye
Safety Chains: (2) 3/8" Gr. 70
Tie-Downs: (4) 5/8" D-rings for machine tie-down

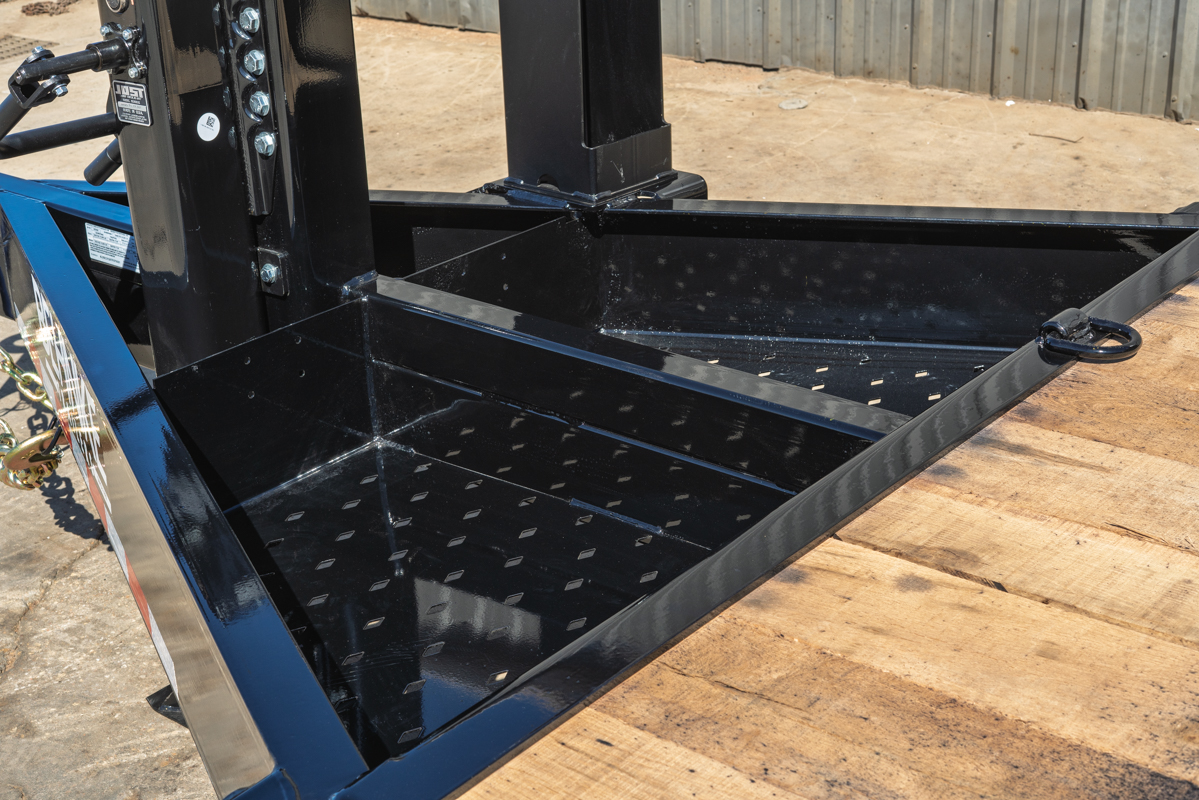

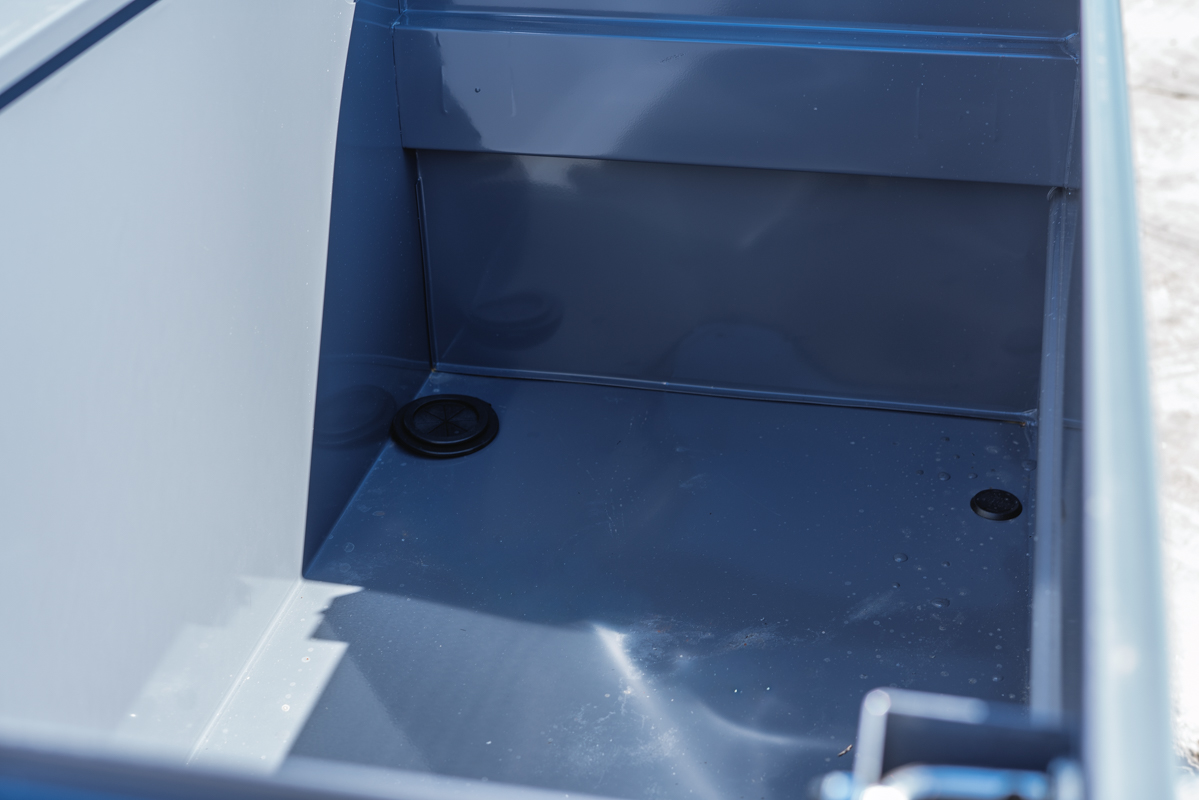

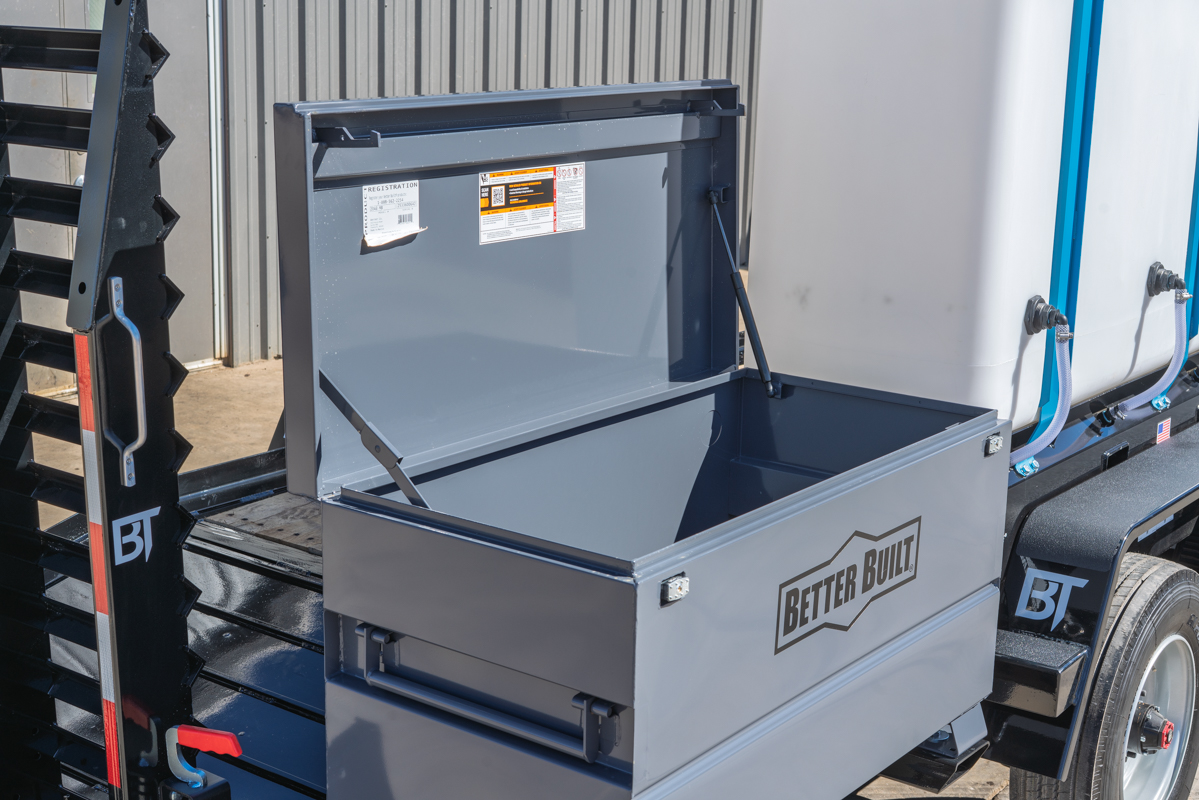

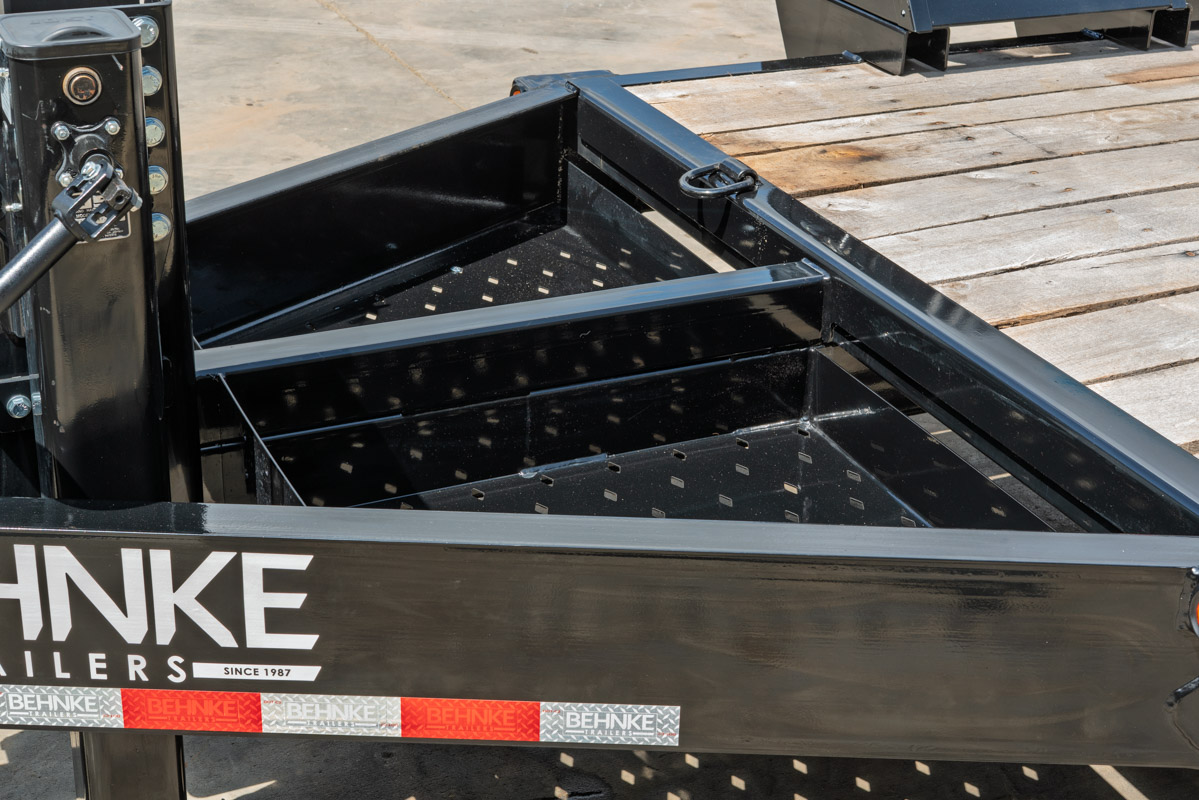

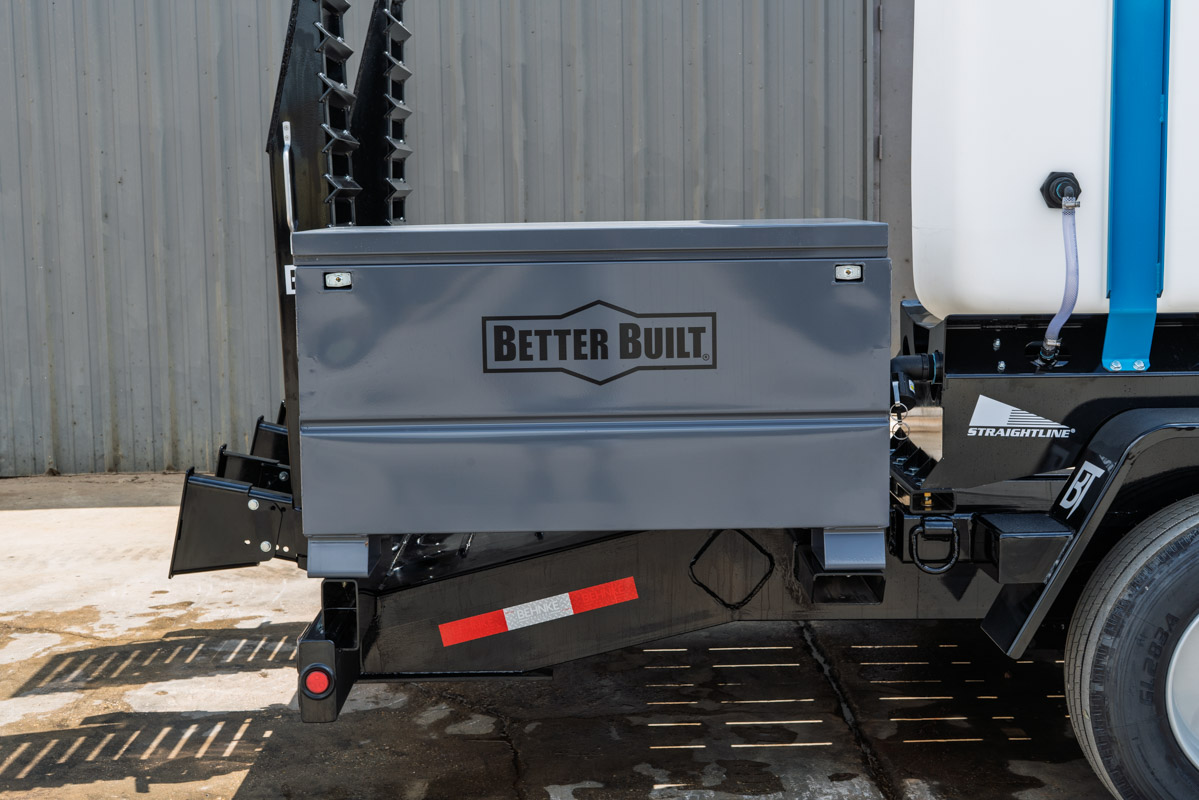

Storage: Large Chain tray in tongue (V-toolbox optional)

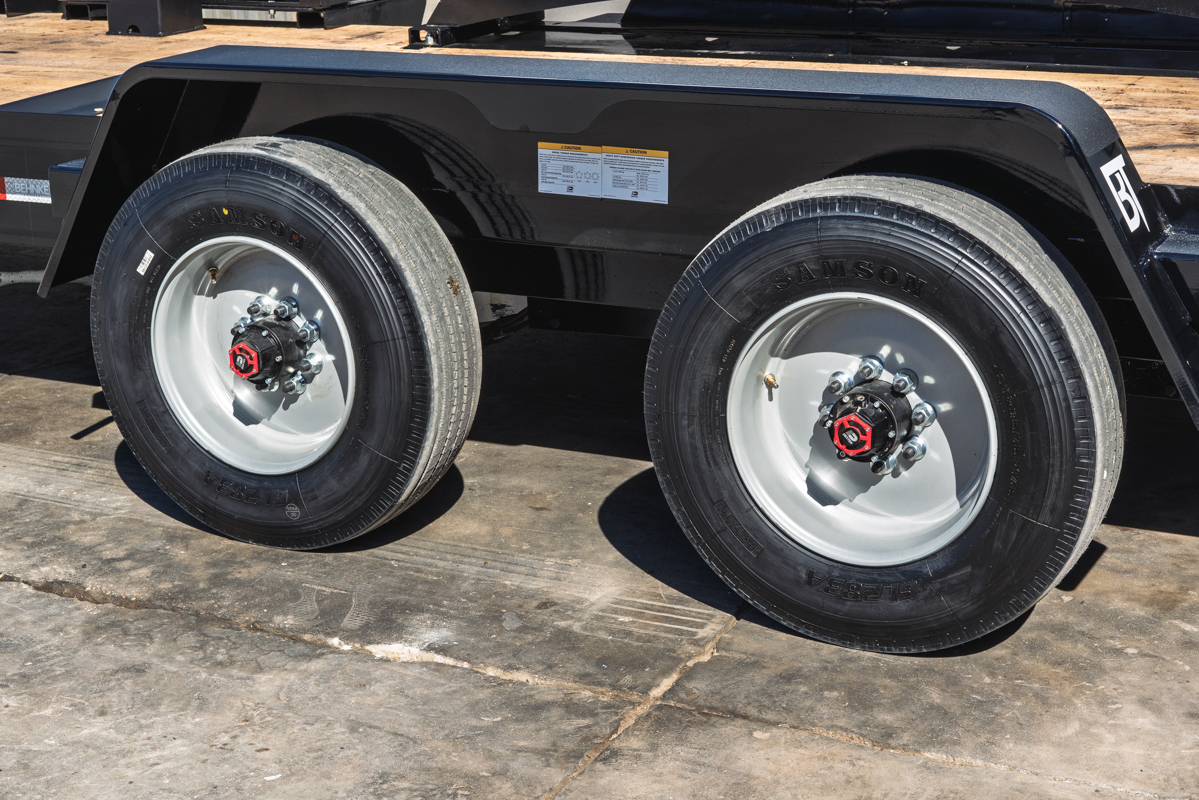

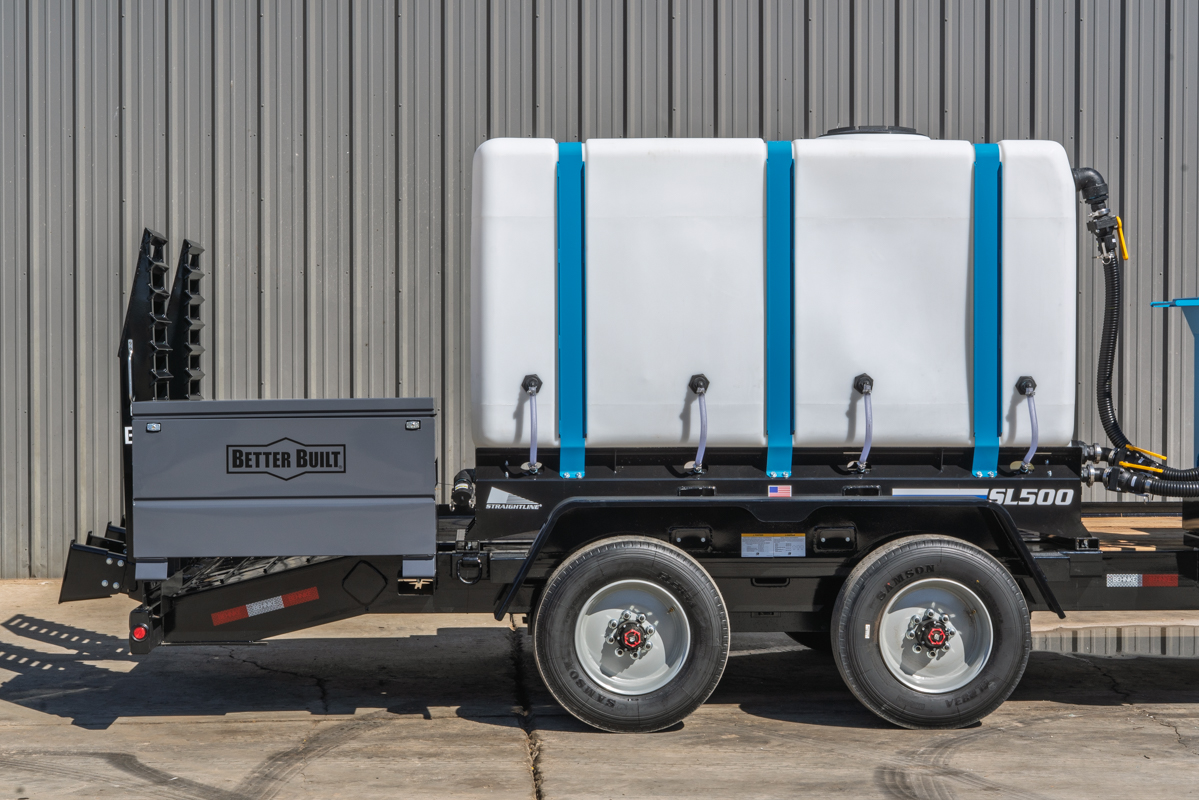

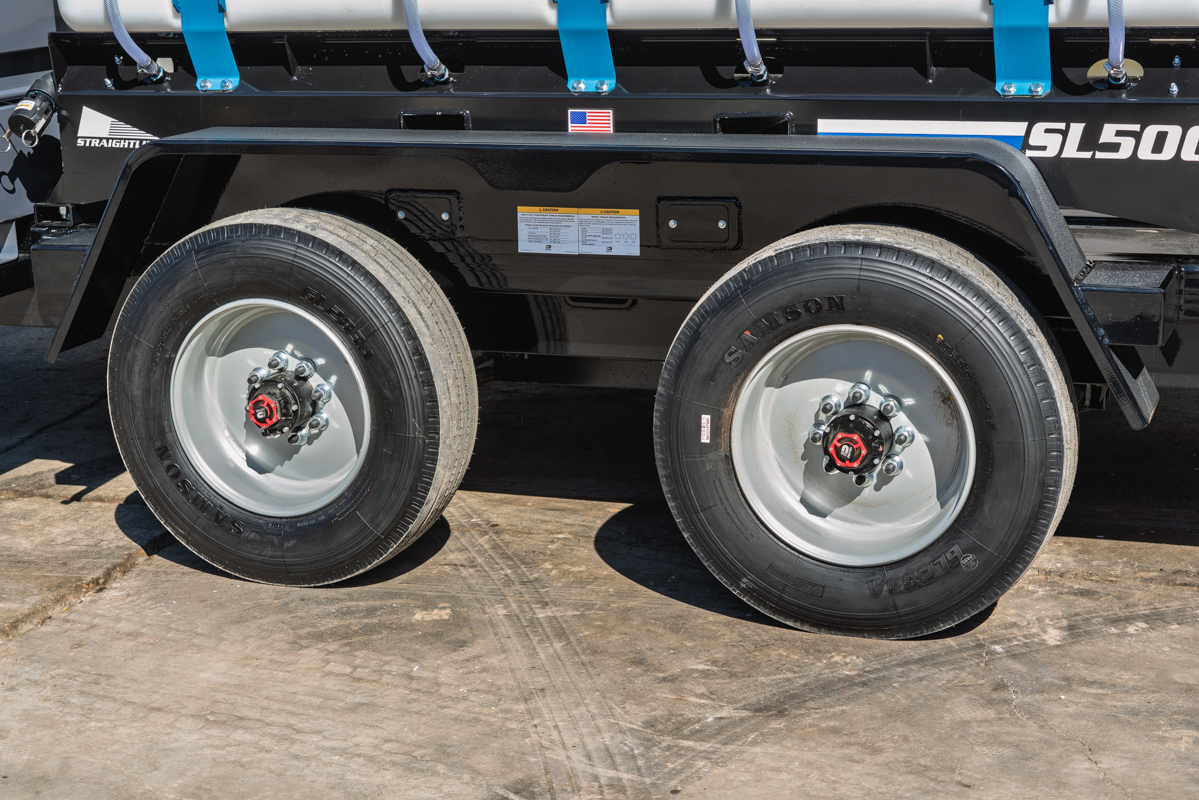

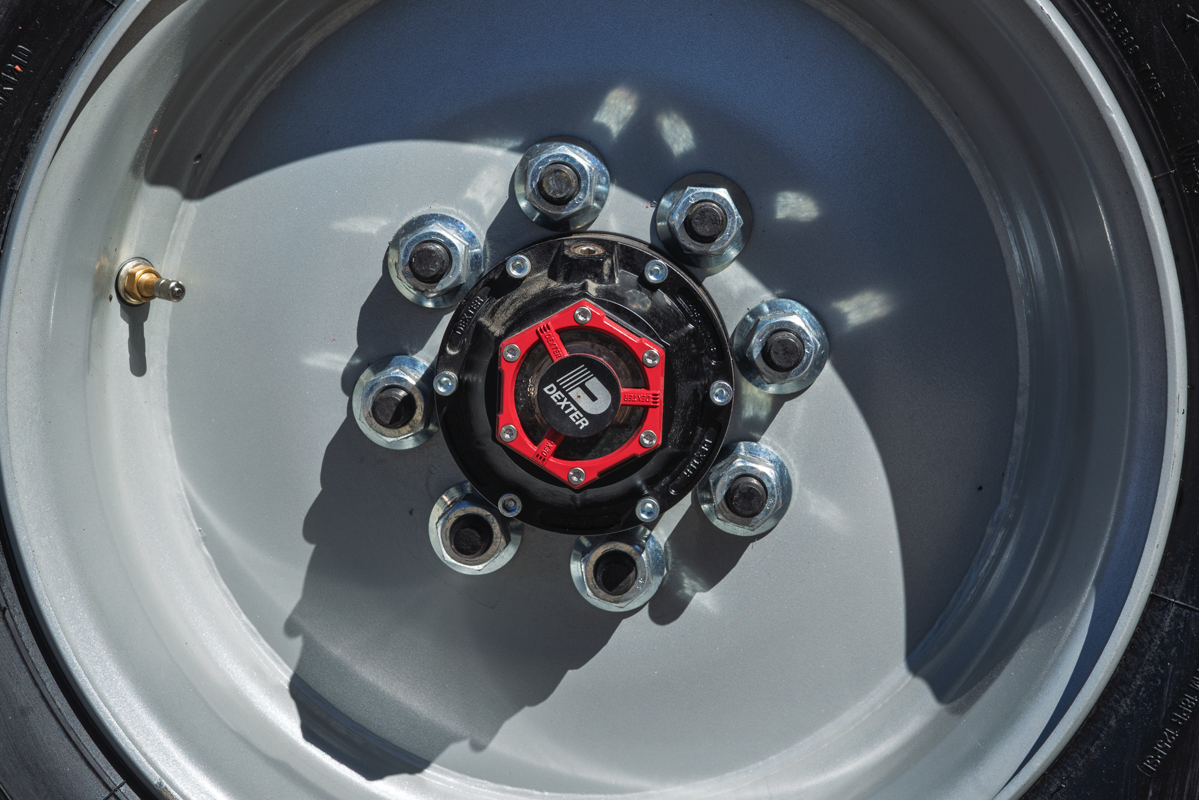

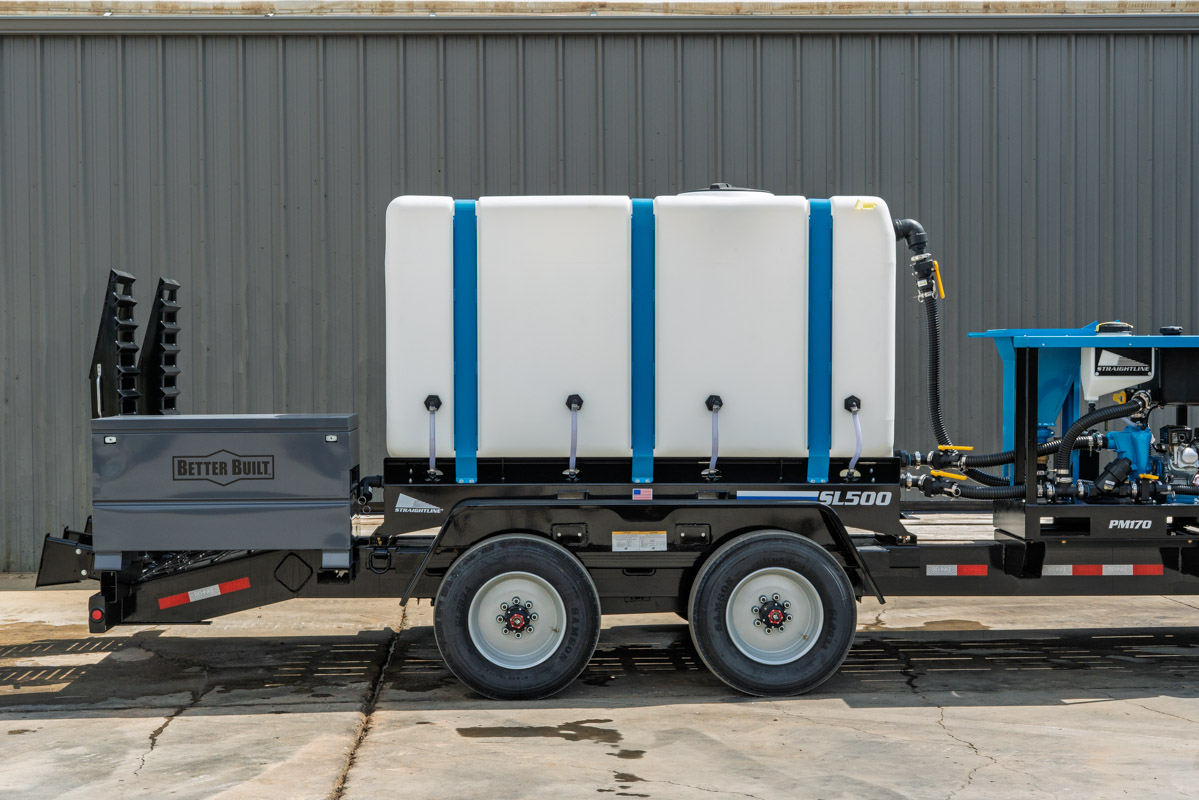

Axles: 12,000 HD Dexter Axles
Suspension: Dexter Spring

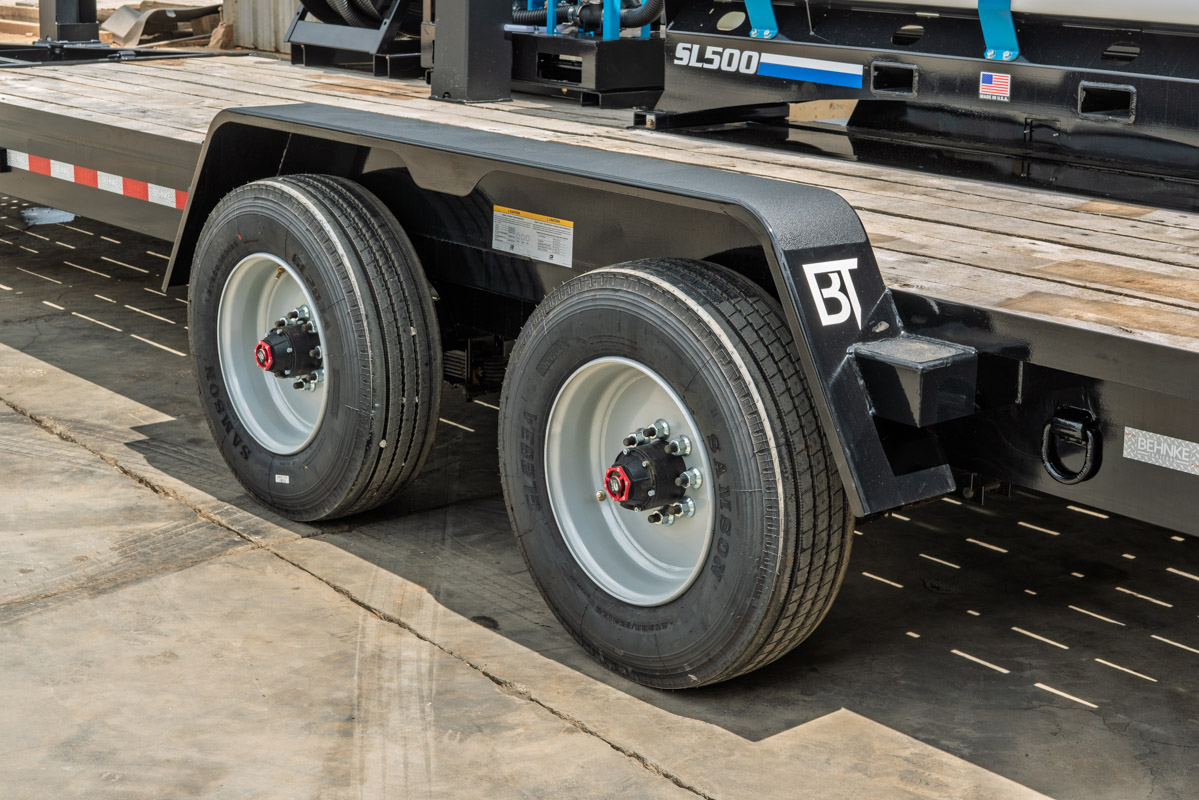

Tire and Wheel: 235/75R-17.5 16 ply (6,005 lb. load rating) super single

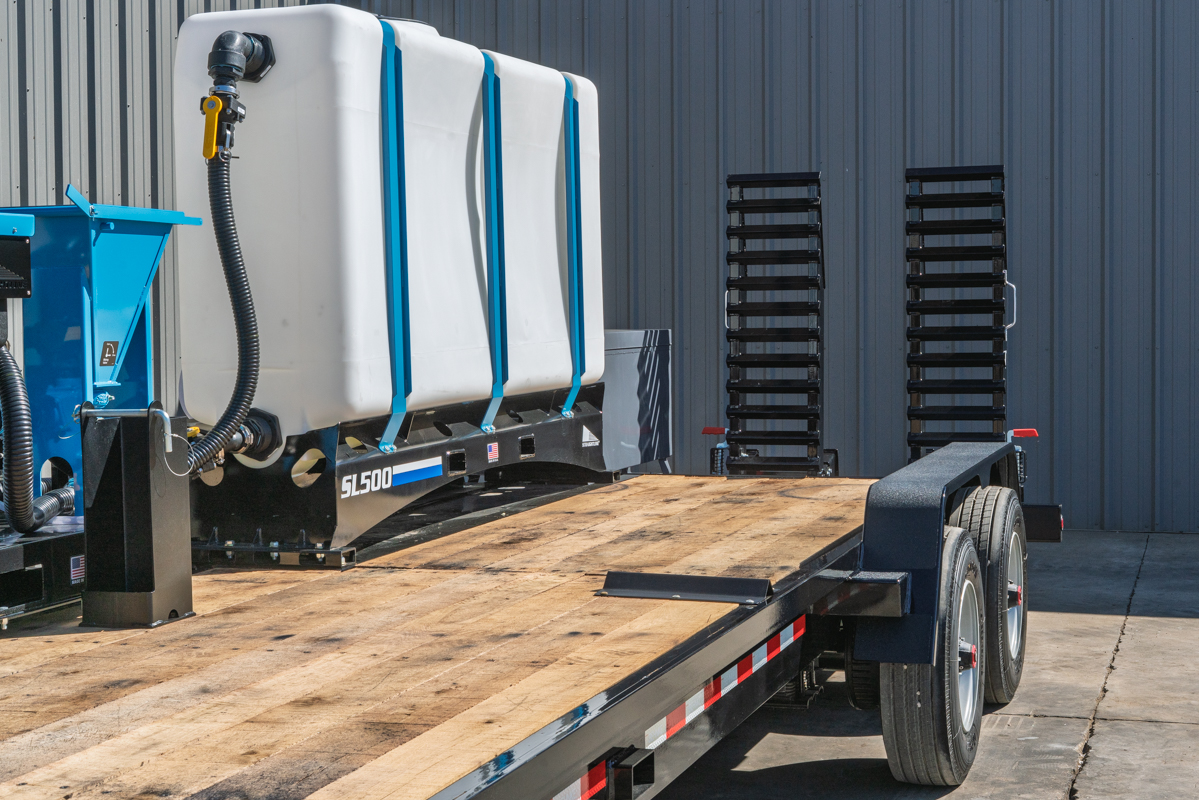

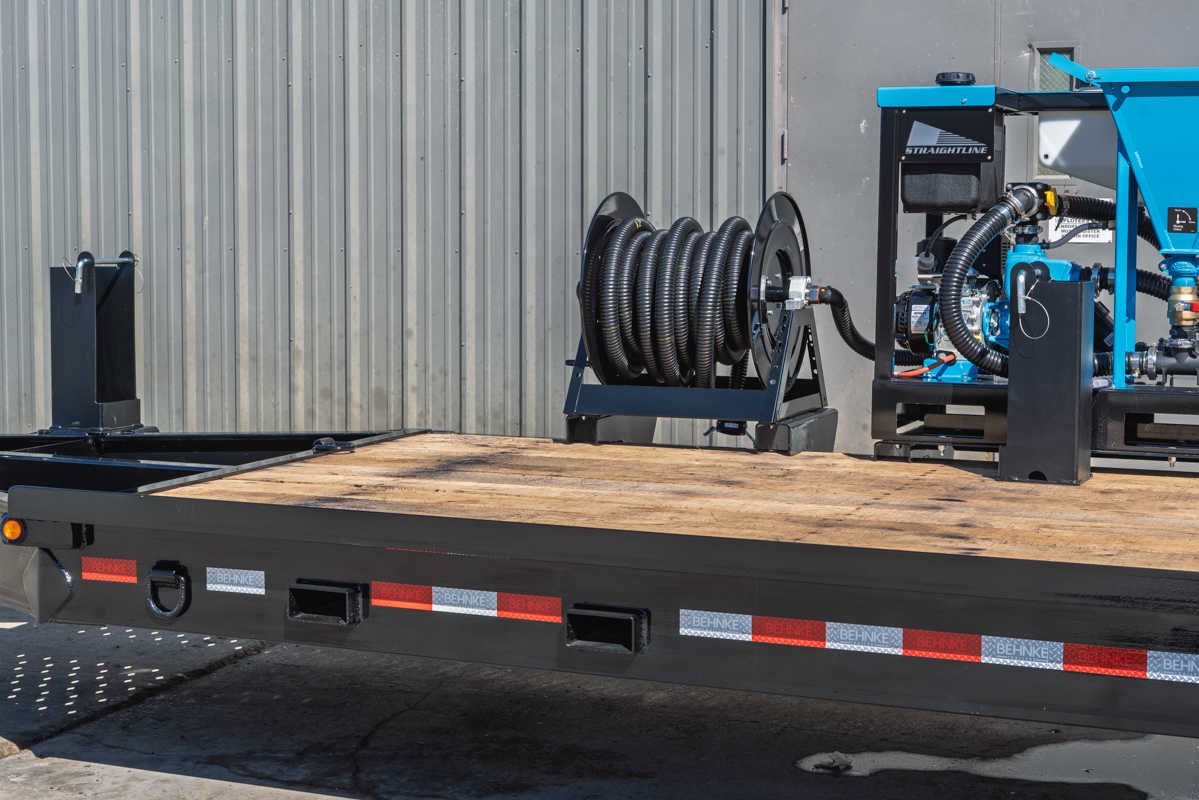

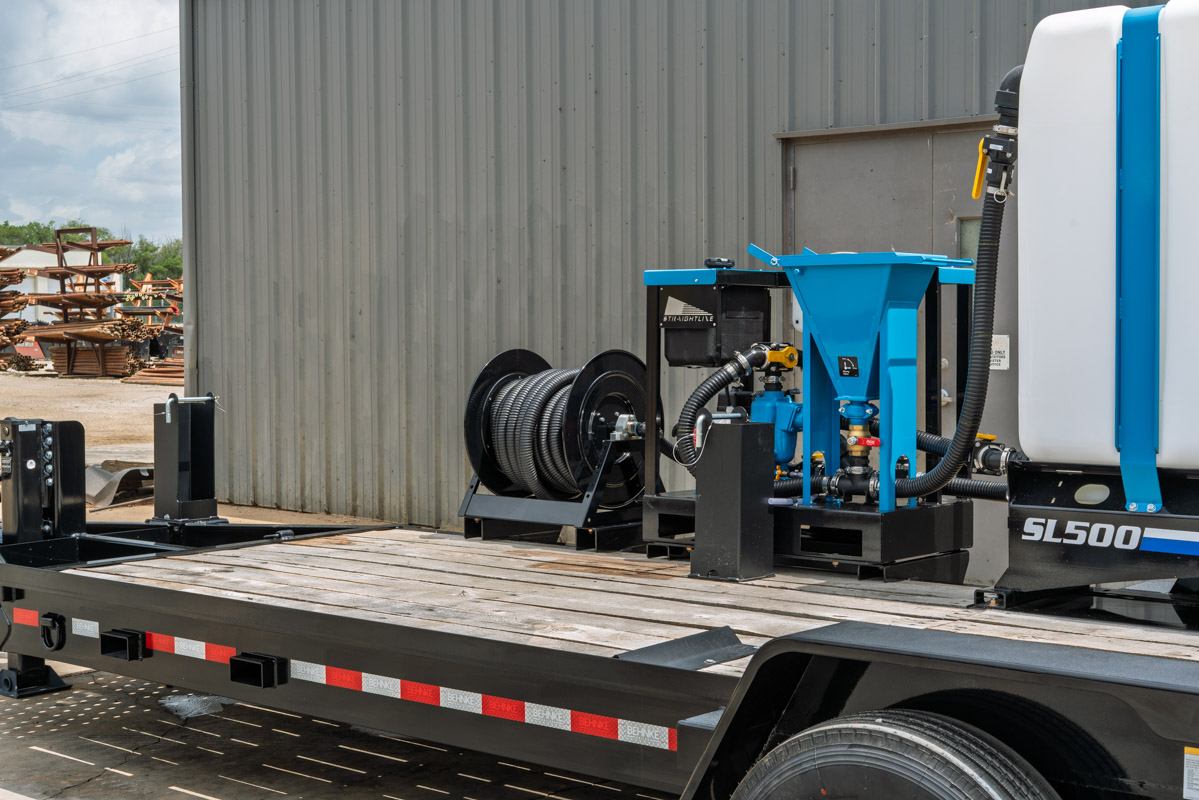

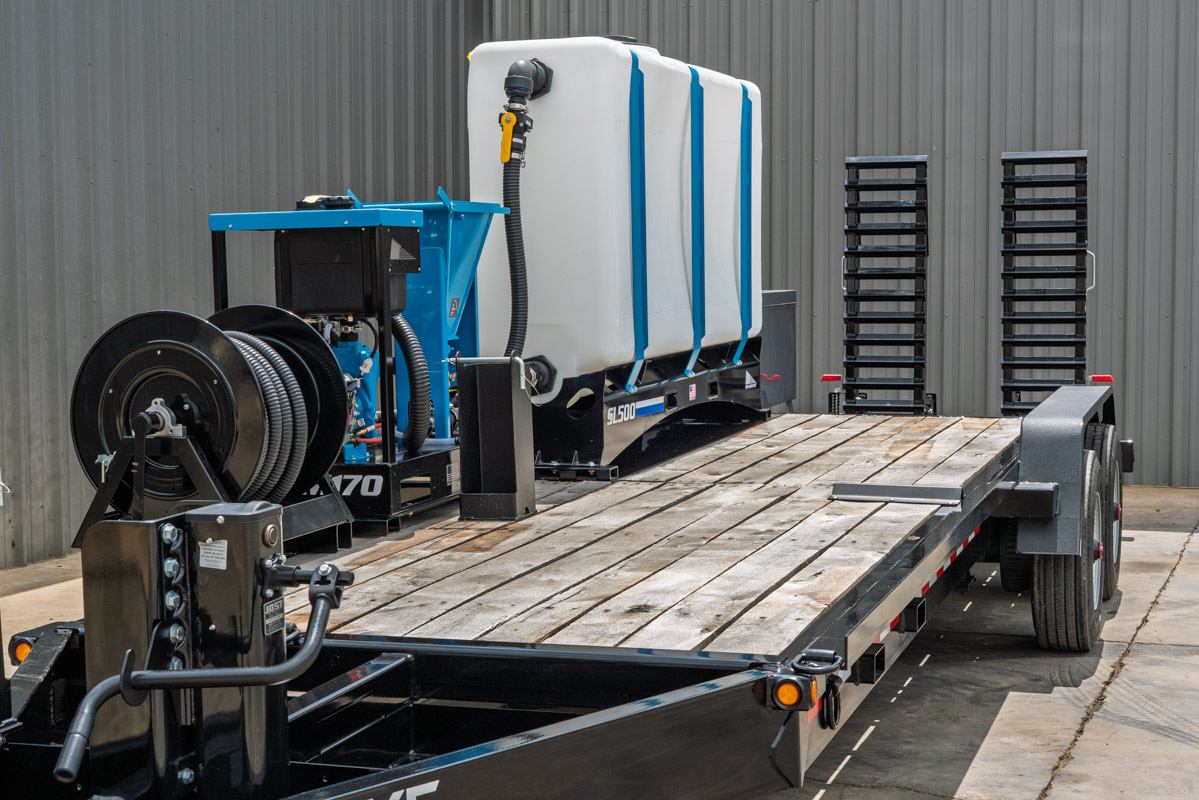

Decking: 1 11/16" rough oak
Lights: LED flush mount
Elect. Plug: RV plug
Finish and Paint: Bead blasted, acid washed, zinc rich primed, powder coated
| Title | Value |
|---|---|
| WEIGHT | 6,640 lbs |
